Home > Products > Revolving Door > Automatic Crystal Revolving Door
Automatic Crystal Revolving Door
- Shanghai
- T/T Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | PAD automatic crystal revolving door | |
| Model Number | PARD-SJ automatic crystal revolving door | Open Style | Automatic | |
| Position | Commercial | Surface Finishing | Finished | |
| Type | Revolving Doors | Door Material | Glass |
Product Description

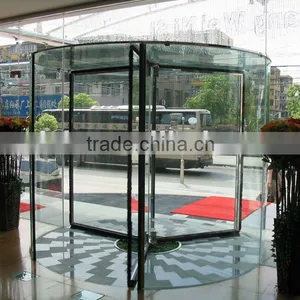

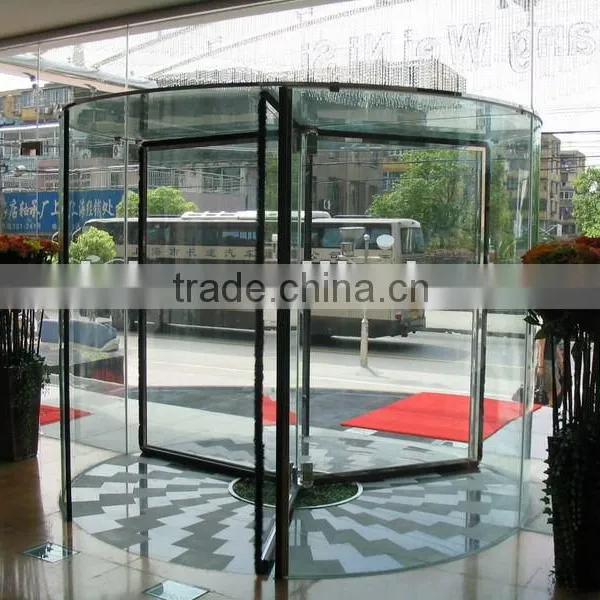

automatic crystal revolving door
1.Max diameter:3m
2.Auto or mannual.
3.Structure or driving system are optional.
4.Drawings are available.
5. Structures are optional, such as carbon fluorine painting, stainless stell, etc.
Size
Inner diameter | Outer diameter | Clear passage width(3-wing) | Clear passage width(4-wing) | Cornice height | Door height |
1600 | 1730 | 700 | 1055 | 300 | 2200 |
1800 | 1930 | 800 | 1195 | 300 | 2200 |
2000 | 2130 | 900 | 1335 | 300 | 2200 |
2200 | 2330 | 1000 | 1475 | 300 | 2200 |
2600 | 2730 | 1200 | 1755 | 300 | 2200 |
2800 | 2930 | 1300 | 1895 | 300 | 2200 |
3000 | 3130 | 1400 | 2035 | 300 | 2200 |
3200 | 3330 | 1500 | 2175 | 300 | 2200 |
3600 | 3730 | 1700 | 2455 | 300 | 2200 |
3800 | 3930 | 1800 | 2595 | 300 | 2200 |
Unit: mm | |||||
Safety&protection
Anti-bump:
Emmergency:
Diabled:
Safety glass:
Technical data:
Voltage&frenquency | Current rating | Power rating | Power of motor |
AC220/50HZ | 4A | 300W | 180W |
Façade options
Stainless steel: our advanced manufacturing and first-rate digital facilities can make sure the surface decoration to meet customers requirement idealty.
