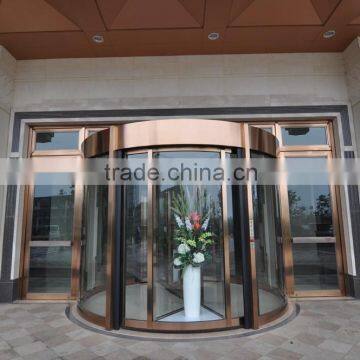

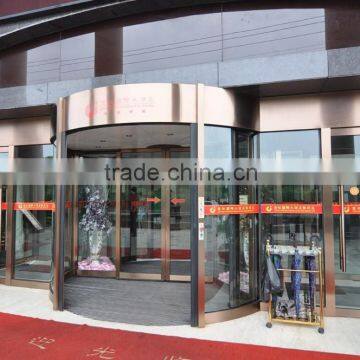

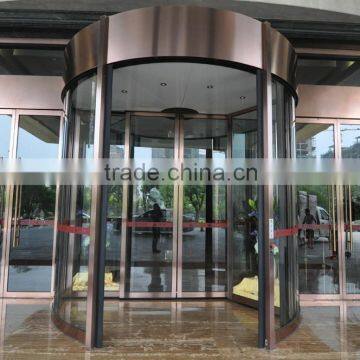

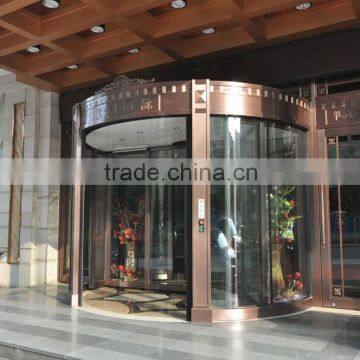

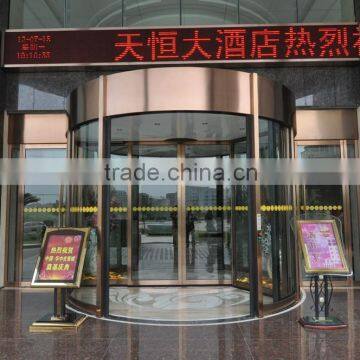

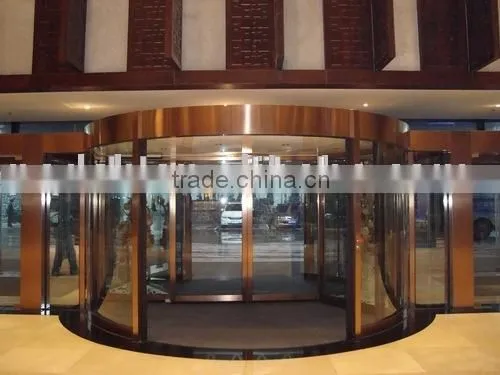

2-wing luxury automatic revolving door

2-wing luxury automatic revolving door

Features:

Elegand and noble outlook

Super auspcious passage

Low energy consumption

Entrance environment clearance

Durable material

Reliable performances

Fire warning system application (optional)

Remote diagonostic system (optional)

Size

Note

2-wing revolving door with display case, the inner diameter is available between 3600-4800mm.

2-wing revolving door without display case, the inner diameter is available between 300-3600mm.

Revolving doors with special sizes can be booked in advance.

Operation modes

Slant ( idle mode in Spring and Autunm)

Close(idle in winter, lock at night)

Mid-pending(idle in summer)

Low-speed rotation

Automatic sliding

Sliding door hold-open

Safety&protection

Anti-clip: the infrared anti-clip sensors mounted on the entrance/exit and the rotor wings can ensure the safe passage.

Anti-bump: there are pressure sensors mounted at the entrance/exit columns and the rotor wings. Once the passenger is bumped by the rotor wings or against the columns, the door will stop immediately. When the passenger leaves, the door resumes working.

Anti-collide: on the top-front of each display case, theres a wide-rang infrared sensor. If the rotor wing appoximates the passenger, the door speed will decelerbrate or stop. When the passenger moves forward, the door will resume normal speed again. In case theres a fire-warning signal putting in, the door will rotate to the emergent position and open the sliding door. the swift exit of the persons inside can be ensured.

Immergency: in cse of emergency, the red button can be pressed down and the door will stop immediately. Once the immergency released, the button can be turned clockwise to return the door to mornam status.

Disabled: if the disabled button is used, the door will keep running for one cycle at low speed to ensure the safe passage of diaabled persons.

Technical data

Façade Options

Carbon fluorine painting: durable and easy to clean. Various colors are optional for unique architectural style.

Stainless steel: our advanced manufacturing and first-rate digital facilities can make sure the surface decoration to meet customers requirement idealy.

Copper: the top level of surface processing on the copper plate can make different patterns. Such decorations give noble visual effect.
