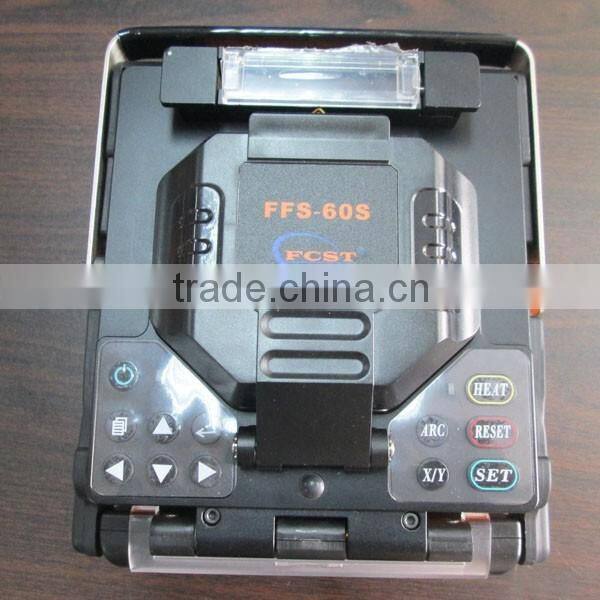

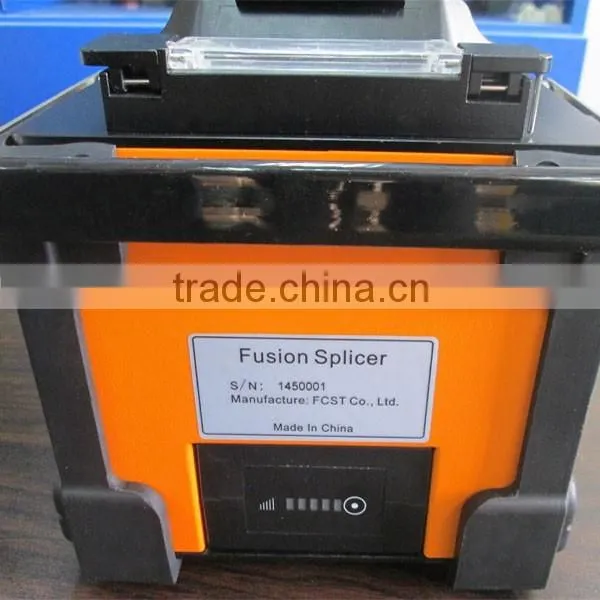

FFS-60S FTTH Fusion Splicer Machine, Fiber Fusion Splicer
- FFS-60S fusion splicer,which is specially for core alignment fusion splicing by incorporating a user-friendly interface with enhanced features. The new rugged construction adds improved reliability by resisting shock, dust, and rain, and can withstand a 30” drop test.
- Automated monitor image orientation, and battery charge capability during splicer operation provide the end user a productivity tool they can count on.New software included provides the ability to download splice data to a PC for splice data reporting, download splicer operating software via the internet to maintain peak performance, and download video images from the splicer to enhance technical support.
Features
- PAS image digital processing system, core to core alignment;
- Apply to bare fibers, skin line cables, jumper cables, etc.;
- Various display group, max magnification up to 300;
- 8 seconds typical splicing and 28 seconds heating time;
- Metro style GUI, easy operation;
- High definition 5.7' colorful LCD;
- Rubber armor protects machine from shock or impact;
- Up to 4000 groups of records can be stored;
- Arc calibrated by temperature and pressure parameters;
- High capacity and pluggable battery, long work time;
- USB port for software upgraded
Specifications
Applicable fiber |
SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
Cladding diameter |
80 -150μm |
Coating diameter |
160 - 900μm |
Typical splice loss |
SM 0.02dB, MM 0.01dB, DS 0.04Db, NZDS 0.04dB |
Return loss |
<60dB |
Cleaved length |
10~16mm ( Diameter of coating < 250μm ) ; 16mm ( Diameter of coating 250~1000μm ) |
Splicing program |
40 groups |
Operate mode |
Manual, Automatic |
Auto-Heat |
Available |
Typical splicing time |
8 seconds |
Heating time |
26 seconds for 60mm, 40mm shrinkable sleeve |
Magnification |
300 times for single display, 150 times for double display |
Photoelectric system |
Two high sensitive cameras, 5.7’ 640×480 colorful LCD |
Splicing data record |
Storing up to 4000 groups of records |
Loss evaluation |
Available |
Tension test |
1.8~2.2N |
Interface |
GUI menu interface, easy operation |
Battery capacity |
8800mAh, 250 times fusion and heating, pluggable, real-time power monitor |
Power supply |
Adaptor, input: AC 100-240V ( 50/60HZ ) , output: DC 11~13.5V |
Electric pole lifetime |
More than 4000 times fusion, pole can be replaced conveniently |
External port |
USB2.0 port, used to derive splicing record data, software upgrade |
Operate environment |
Altitude: 0~5000m; Relative humidity: 0~95%; Temperature: -10℃~+50℃; Wind speed: max 15m/s |
Volume/Weight |
160mm(L)×150mm(W)×145mm(H) / 2.75kg (including battery) |

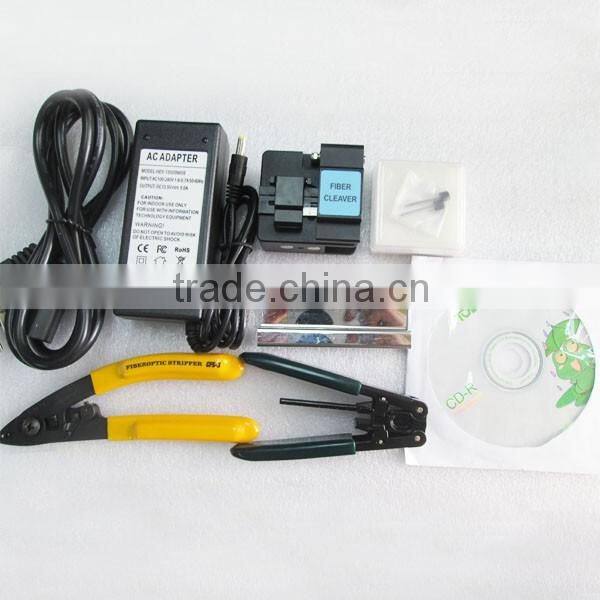

Standard Configuration

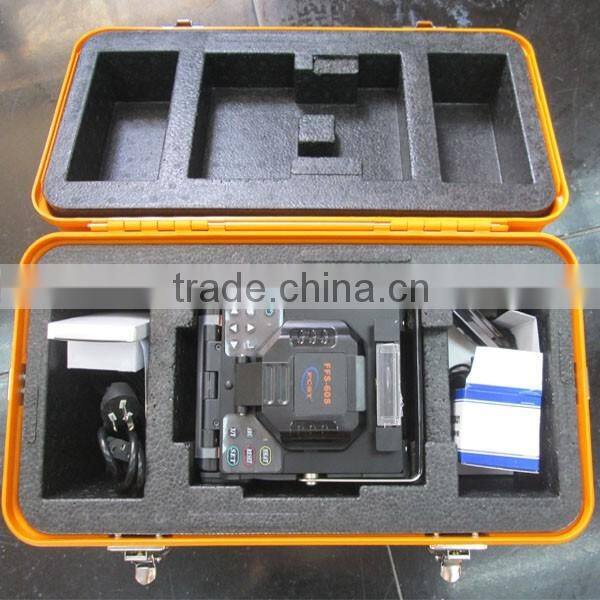

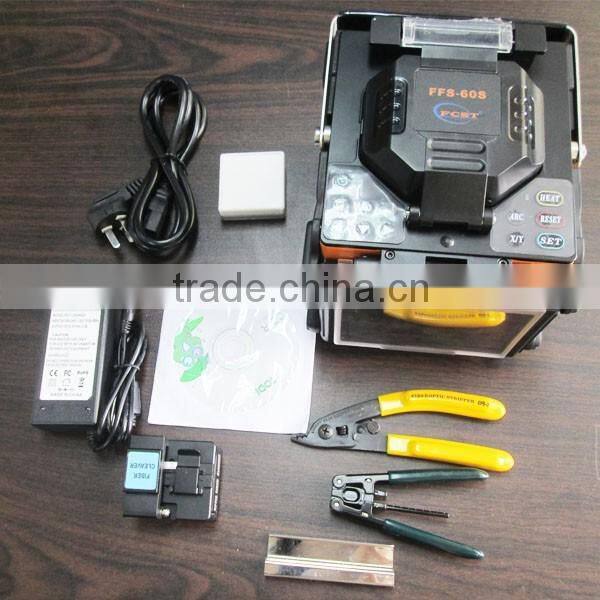

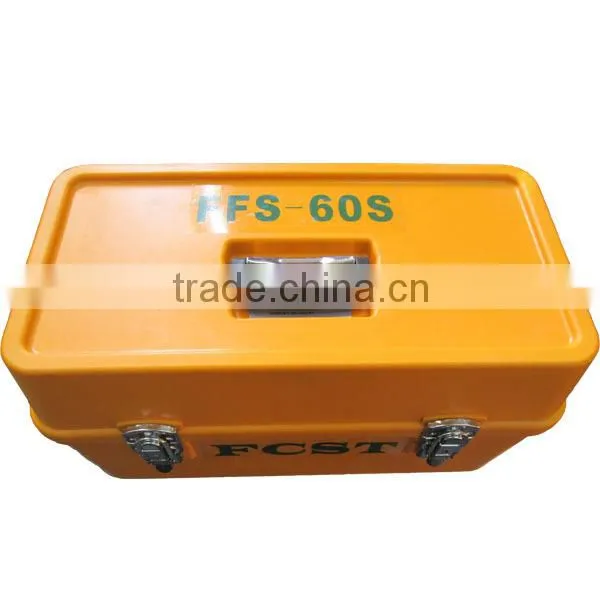

Instrument (Main Body), Fiber Cleaver, Spare Electrodes (one pair),Fiber Stripper,Skin Line Stripper,Cooling Holder,Power Cord,Carrying Bag,User's Manual.
- Packing: By carton/Customerized
- Shipping: By air. By sea. By TNT. By DHL.By Fedex
OEM,product traning, FTTH consultant, after sale service,Micro cable Solution consultant(design)
- Production Capacity: We can provide 500pcs per week
- R&D department: 10 designer
- The Exhibition experience:ECOC,OFC,Local Exhibition
- Cooperation brand:CMCC,Huawei,Telecommunication,Tyco,ZTE,3M...
- Transaction Term: FOB, CIF, EXW,CNF
- Payment Term: Paypal, TT, Western Union...
