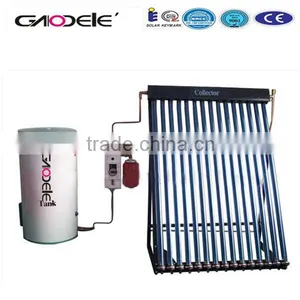

100% Clean Energy Pressurized Split Solar Water Heater

Name: 100% Clean Energy Pressurized Split Solar Water Heater
Brand: GAODELE
SKU: 134309647
Availability: InStock

US$ 150 - 1,000 MOQ: 1 Set

Key Specifications

Type:

Evacuated Tube

Pressure:

Pressurized

Circulation Type:

Direct / Open Loop (Active)

Zhejiang Gaodele New Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Type Evacuated Tube

Pressure Pressurized

Circulation Type Direct / Open Loop (Active)

Heating System Batch / ICS (Passive)

Connection Type Direct-Plug

Installation Freestanding

Housing Material Other, Galvanized steel/Stainless steel

Certification CE

Capacity 150

Place of Origin Zhejiang, China

Brand Name GAODELE

Model Number GDL-SPH-15-150

Specifications

1.split solar water heater
2.best quality solar water heater manufacturer
urized solar water heater

100% Clean Energy Pressurized Split Solar Water Heater

Product Description

Split Solar Water Heater Material and Features:

Water Tank	Inner Tank Thickness	1.5 mm/1.8mm/2.0mm
	Outer Tank Thickness	0.5 collector mm
	Inner Tank Material	SS 304
	Outer Tank Material	Galvanized steel/Stainless steel
	Color	According to customers'
Bracket	Bracket Material	Galvanized steel Powder Coated
	Thickness	1.2mm
	Color	According to customers'
Reflector	Material	stainless steel/Aluminium Alloy
Reflector	Type	Strip Type
Insulation	Material	PUF
Insulation	Thickness	50 mm
Capacity	100,150,200,250,300,400,500,600,650,700,750,800,850,900,950,1000Liters
Warranty	5 years

Vacuum Tube Material and Features:

Tube structure		All-glass double-tube co-axial structure
Glass material		Borosilicate 3.3glass
Outer tube diameter and glass thickness		Φ =47± 0.7mm & T=1.6mm ± 0.15mm
Outer tube diameter and glass thickness		Φ =58± 0.7mm & T=1.6mm ± 0.15mm
Inter tube diameter and glass thickness		Φ =37± 0.7mm & T=1.6mm ± 0.15mm
Inter tube diameter and glass thickness		Φ =47± 0.7mm & T=1.6mm ± 0.15mm
Tube length		1500mm, 1800mm
	Coating material	AL-N/SS/Cu
Absorber coating	Sediment method	Three Targets magnetron sputtering plating
	Absorption	a: ≥92%(AM1.5)
	Emittance	ε ≤ 3.4% (80° C± 5° C)
Vacuum degree		P ≤ 5.0× 10 -3 Pa
Hail resistance		Φ 25 mm
Pressure-endure		0.8 Mpa
Temperature-endure		250° C
Life		> 15 years

Split Solar Water Heater Working Principle:

Split Solar Water Heater Details Pictures:
