Home Appliances Pressurized Split Solar Water Heater

Name: Home Appliances Pressurized Split Solar Water Heater
Brand: GAODELE
SKU: 134309633
Availability: InStock

Zhejiang Gaodele New Energy Co., Ltd.

US$ 150 - 1,000 MOQ: 1 Set

Key Specifications

Type:

Evacuated Tube

Pressure:

Pressurized

Circulation Type:

Direct / Open Loop (Active)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Type Evacuated Tube

Pressure Pressurized

Circulation Type Direct / Open Loop (Active)

Heating System Batch / ICS (Passive)

Connection Type Direct-Plug

Installation Freestanding

Housing Material Other, Galvanized steel/Stainless steel

Certification CE

Capacity 350

Place of Origin Zhejiang, China

Brand Name GAODELE

Model Number GDL-SPH-35-350

Specifications

1.split solar water heater
2.best quality solar water heater manufacturer
urized solar water heater

Home Appliances Pressurized Split Solar Water Heater

Product Description

Split Solar Water Heater Material and Features:

Water Tank	Inner Tank Thickness	1.5 mm/1.8mm/2.0mm
	Outer Tank Thickness	0.5 collector mm
	Inner Tank Material	SS 304
	Outer Tank Material	Galvanized steel/Stainless steel
	Color	According to customers'
Bracket	Bracket Material	Galvanized steel Powder Coated
	Thickness	1.2mm
	Color	According to customers'
Reflector	Material	stainless steel/Aluminium Alloy
Reflector	Type	Strip Type
Insulation	Material	PUF
Insulation	Thickness	50 mm
Capacity	100,150,200,250,300,400,500,600,650,700,750,800,850,900,950,1000Liters
Warranty	5 years

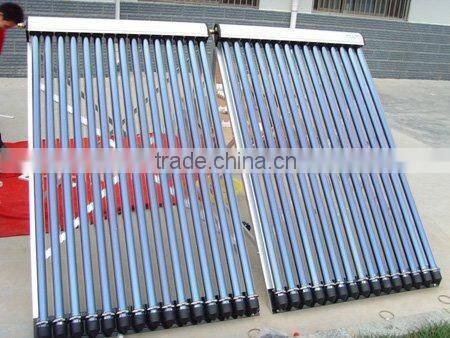

Vacuum Tube Material and Features:

Tube structure		All-glass double-tube co-axial structure
Glass material		Borosilicate 3.3glass
Outer tube diameter and glass thickness		Φ =47± 0.7mm & T=1.6mm ± 0.15mm
Outer tube diameter and glass thickness		Φ =58± 0.7mm & T=1.6mm ± 0.15mm
Inter tube diameter and glass thickness		Φ =37± 0.7mm & T=1.6mm ± 0.15mm
Inter tube diameter and glass thickness		Φ =47± 0.7mm & T=1.6mm ± 0.15mm
Tube length		1500mm, 1800mm
	Coating material	AL-N/SS/Cu
Absorber coating	Sediment method	Three Targets magnetron sputtering plating
	Absorption	a: ≥92%(AM1.5)
	Emittance	ε ≤ 3.4% (80° C± 5° C)
Vacuum degree		P ≤ 5.0× 10 -3 Pa
Hail resistance		Φ 25 mm
Pressure-endure		0.8 Mpa
Temperature-endure		250° C
Life		> 15 years

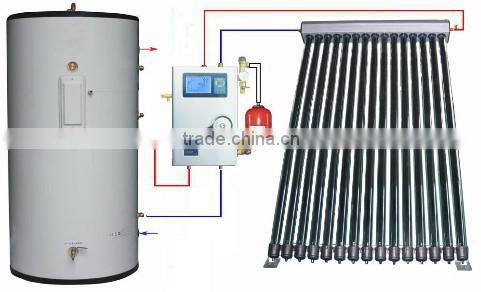

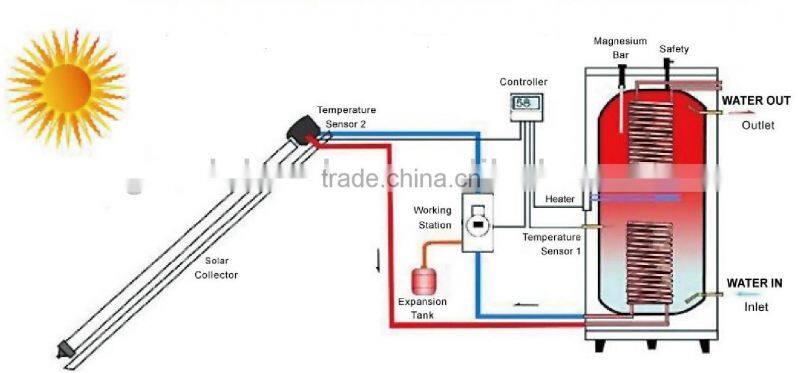

Split Solar Water Heater Working Principle:

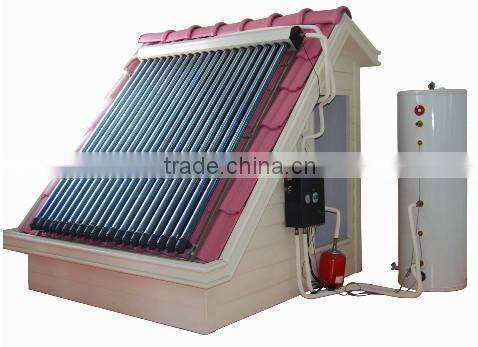

Split Solar Water Heater Details Pictures:
