Specifications
1.Certificate: SRCC, Solar keymark,EN12975,ISO,SGS,CE,CCC2.Lifetime:15years
3.Deliverly time:10-15days
4.Best performance
split solar water heater
split solar water heater Material and Features:
Material |
|
||
vacuum tube |
high borosilicate glass |
||
size |
58*1800mm |
||
coating |
SS-CU-AIN/ALN |
||
heat pipe material |
TU1 copper |
||
heat pipe length |
1790mm |
||
heat pipe diameter |
condenser dia14mm, body dia 8mm |
||
manifold header pipe |
TP2 copper dia 35mm |
||
manifold casing |
anodized aluminum alloy |
||
insulation |
rock wool with polyurethane foam |
||
bracket |
galvanized steel |
||
tube holder |
UV stabilized nylon |
||
seals |
silicon seal |
||
contact sheets |
aluminum fin |
||

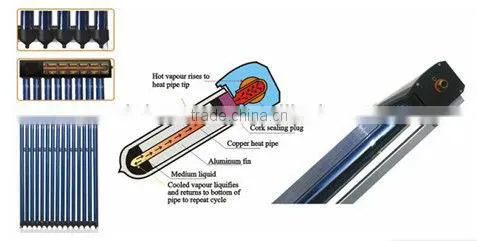

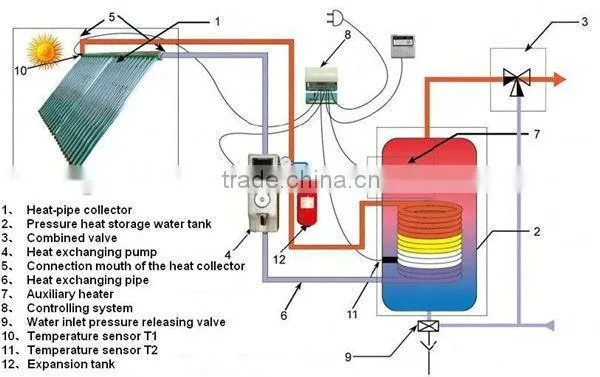

split solar water heater Working Principle:
This kind of solar heating system is the most ecnomic one. And it has the highest heating effciency because of heating water in tubes directly.

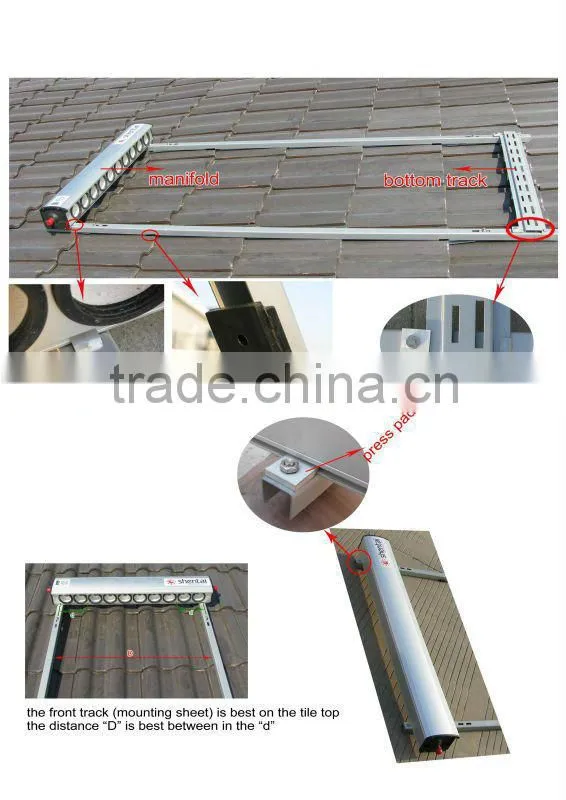

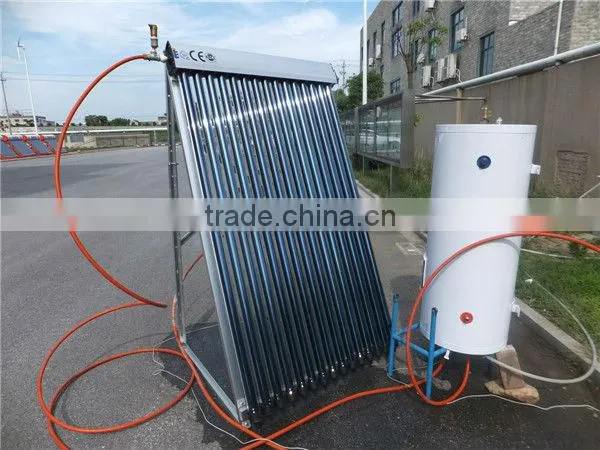

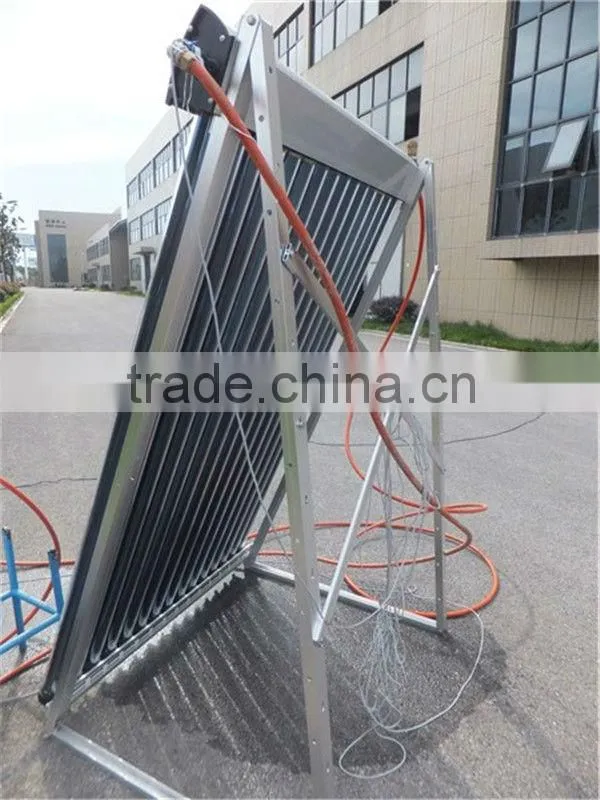

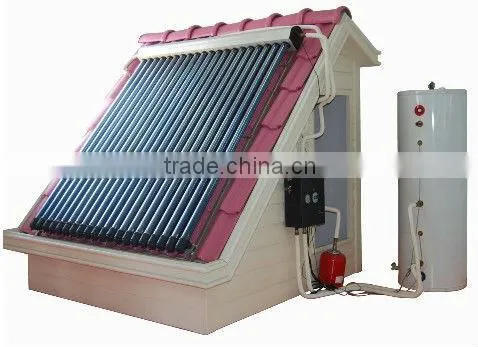

split solar water heater Details Pictures:

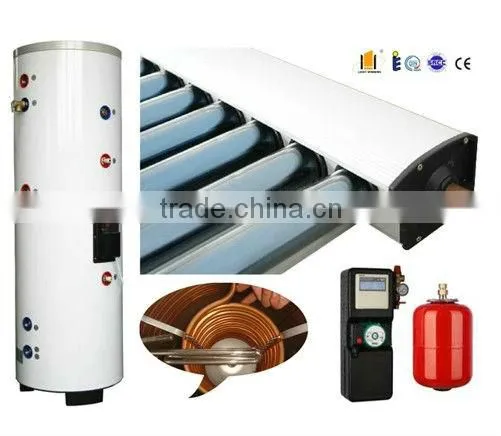

The Components of solar split pressure vacuum tube manifold thermal collectors (Model: GDL-SPH-200)
1) 1 × pressurized tank (200L)
2) 20 × solar collector (20 tubes)
3) 1 × solar working station
split solar water heater Loading Ability:
Model |
Vacuum Tube |
Tank |
Collector |
Loading Qty |
|||
Size /mm |
No |
Capacity/L |
Aperture Area /m2 |
20GP |
40GP |
40HQ |
|
GDL-SPH-100 |
58×1800 |
12 |
100 |
1.135 |
66 |
137 |
160 |
GDL-SPH-150 |
58×1800 |
18 |
150 |
1.703 |
58 |
121 |
142 |
GDL-SPH-200 |
58×1800 |
24 |
200 |
2.270 |
49 |
102 |
119 |
GDL-SPH-250 |
58×1800 |
30 |
250 |
2.838 |
40 |
83 |
97 |
GDL-SPH-300 |
58×1800 |
36 |
300 |
3.403 |
36 |
76 |
89 |
GDL-SPH-400 |
58×1800 |
48 |
400 |
4.538 |
32 |
67 |
78 |
GDL-SPH-500 |
58×1800 |
60 |
500 |
5.672 |
31 |
64 |
75 |
split solar water heater Main Production Line
solar water heater Quality Control
solar water heater Certificates
Solar water heater Exhibition
