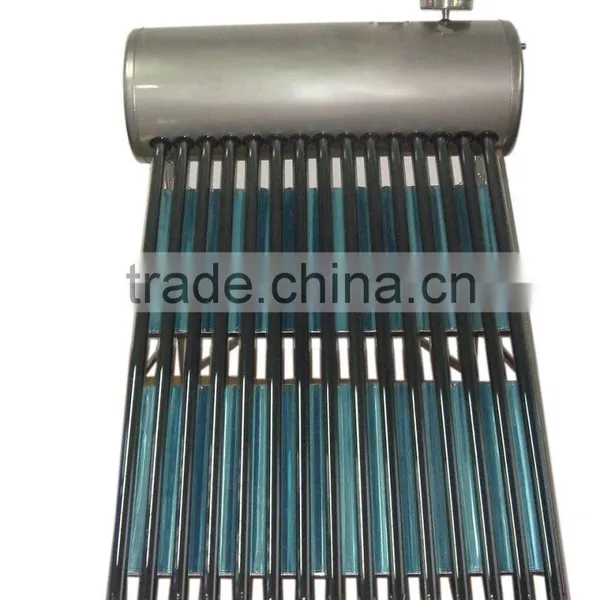

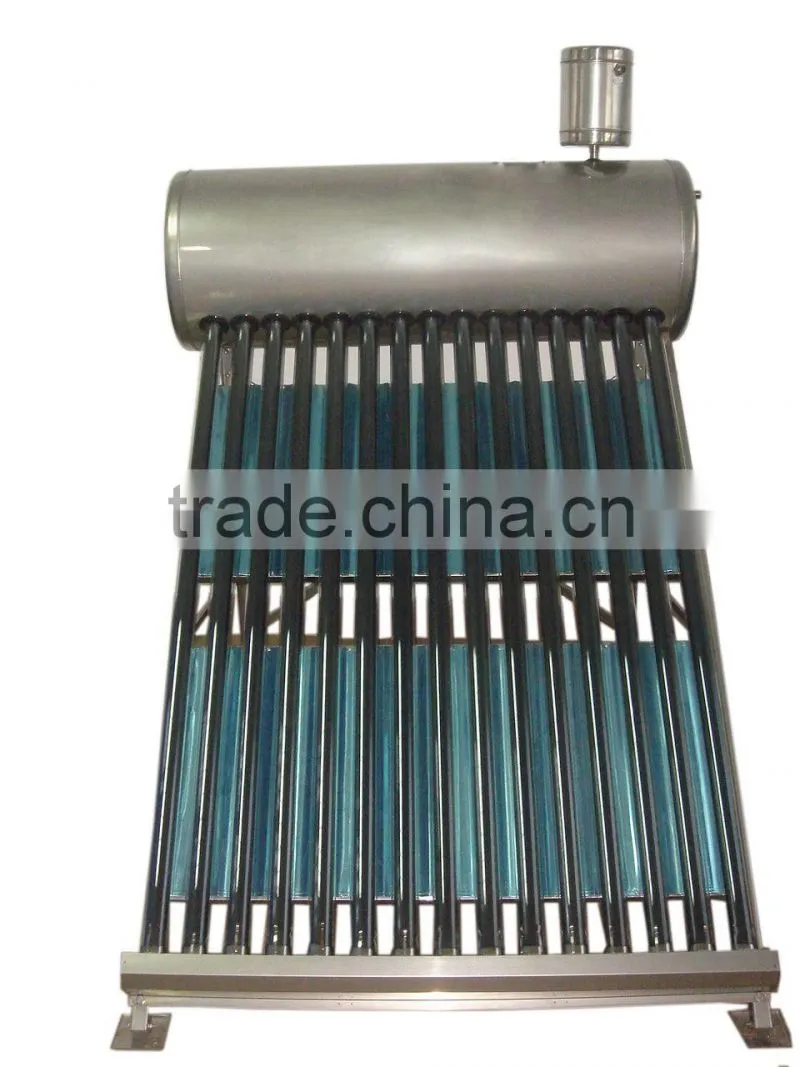

All Stainless Double Tank Solar Water Heater

Name: All Stainless Double Tank Solar Water Heater
Brand: GAODELE
SKU: 134309517

US$ 50 - 400 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

GAODELE

Model Number:

GDL-NPGG-12-120

Zhejiang Gaodele New Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name GAODELE

Model Number GDL-NPGG-12-120

Type Non-Pressure

Application Water Heater

Pipe Material Glass

Specifications

lar water heater on selling
2.no pressure solar water hester
3.own vacuum tube production line
4.low price solar heater

All Stainless Double Tank Solar Water Heater

Product Description

solar Water Heater Material and Features:

sola water heater system Tank	Inner Tank Thickness	0.5 mm
	Outer Tank Thickness	0.4 mm
	Inner Tank Material	SS 304
	Outer Tank Material	Galvanized steel/Stainless steel
	Color	According to customers'
solar water heater system Bracket	Bracket Material	Galvanized steel Powder Coated
	Thickness	1.2mm
	Color	According to customers'
solar water heater system Reflector	Material	stainless steel/Aluminium Alloy
solar water heater system Reflector	Type	Strip Type
solar water heater system Insulation	Material	PUF
solar water heater system Insulation	Thickness	50 mm
solar water heater Capacity	80 to 420 Liters
solar water heater Warranty	5 years

solar Water Heater vacuum tube Material and Features:

Tube structure		All-glass double-tube co-axial structure
Glass material		Borosilicate 3.3glass
Outer tube diameter and glass thickness		Φ =47± 0.7mm & T=1.6mm ± 0.15mm
Outer tube diameter and glass thickness		Φ =58± 0.7mm & T=1.6mm ± 0.15mm
Inter tube diameter and glass thickness		Φ =37± 0.7mm & T=1.6mm ± 0.15mm
Inter tube diameter and glass thickness		Φ =47± 0.7mm & T=1.6mm ± 0.15mm
Tube length		1500mm, 1800mm
	Coating material	AL-N/SS/Cu
Absorber coating	Sediment method	Three Targets magnetron sputtering plating
	Absorption	a: ≥92%(AM1.5)
	Emittance	ε ≤ 3.4% (80° C± 5° C)
Vacuum degree		P ≤ 5.0× 10 -3 Pa
Hail resistance		Φ 25 mm
Pressure-endure		0.8 Mpa
Temperature-endure		250° C
Life		> 15 years

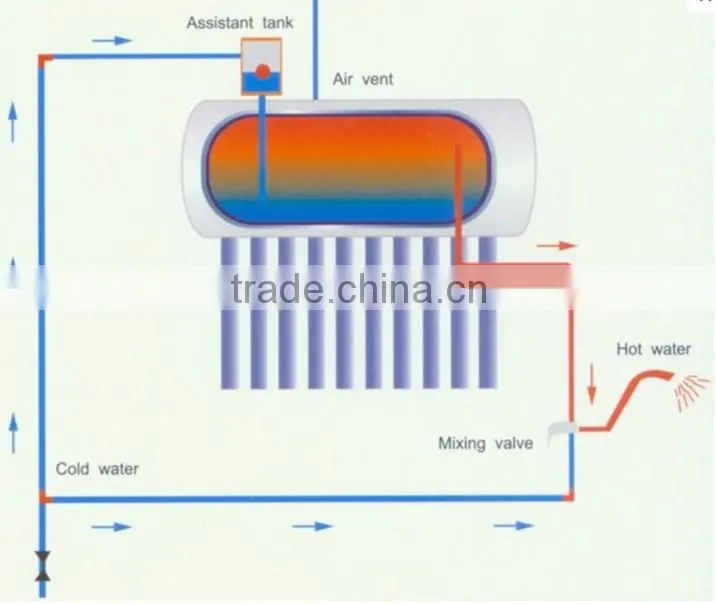

solar Water Heater Working Principle:

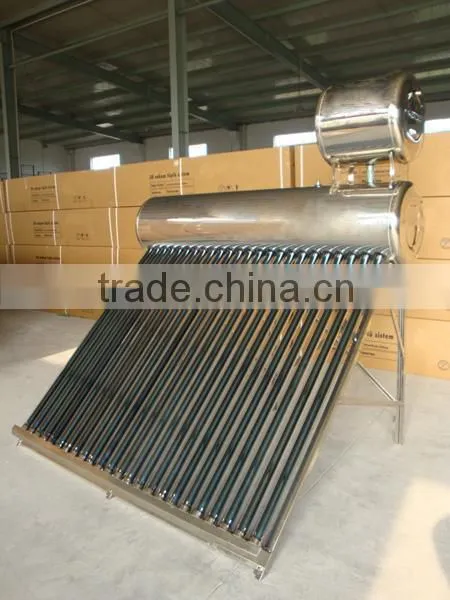

solar water heater Details Pictures:

Packaging & Shipping
