Specifications
Swimming Pool Solar Heaterbest quality solar collector manufacturer
pressurized solar collector
low price solar collector
Swimming Pool Solar Heater
Material and Features:
| Mainfold | Outer Tank Material | Alloy Aluminum,1.4mm |
| Color | Slivery | |
| Tube | Quantity | According to customers' |
| Length | 1800 mm | |
| O.D. | 58 mm | |
| Type | 3-Target Vacuum Tube | |
| Bracket | Bracket Material | Alloy Aluminum |
| Thickness | 2.2mm | |
| Color | Slivery | |
| Capacity | According to customers' | |
| Warranty | 5 years | |
Vacuum Tube Material and Features:
| Tube structure | All-glass double-tube co-axial structure | |
| Glass material | Borosilicate 3.3glass | |
| Outer tube diameter and glass thickness | Φ =47± 0.7mm & T=1.6mm ± 0.15mm | |
| Φ =58± 0.7mm & T=1.6mm ± 0.15mm | ||
| Inter tube diameter and glass thickness | Φ =37± 0.7mm & T=1.6mm ± 0.15mm | |
| Φ =47± 0.7mm & T=1.6mm ± 0.15mm | ||
| Tube length | 1500mm, 1800mm | |
| Coating material | AL-N/SS/Cu | |
| Absorber coating | Sediment method | Three Targets magnetron sputtering plating |
| Absorption | a: ≥92%(AM1.5) | |
| Emittance | ε ≤ 3.4% (80° C± 5° C) | |
| Vacuum degree | P ≤ 5.0× 10 -3 Pa | |
| Hail resistance | Φ 25 mm | |
| Pressure-endure | 0.8 Mpa | |
| Temperature-endure | 250° C | |
| Life | > 15 years | |
Working Principle:

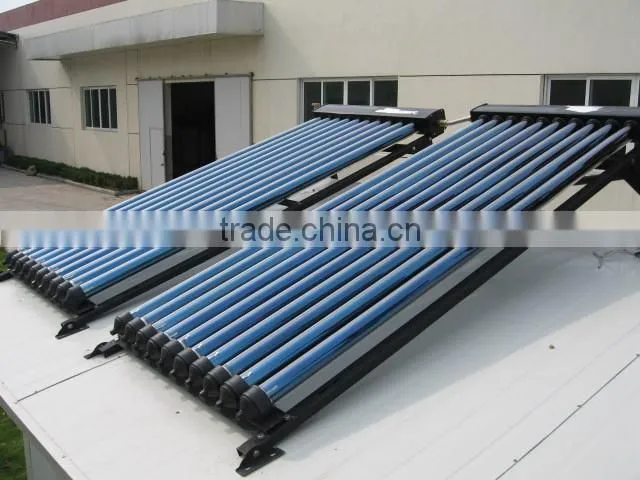

Details Pictures:
Loading Ability:
| Model | Vacuum Tube | Tank | Loading Qty | |||
| Size /mm | No | Capacity/L | 20GP | 40GP | 40HQ | |
| GDL-SP58-1800-12 | 58×1800 | 12 | 120 | 150 | 313 | 367 |
| GDL-SP58-1800-15 | 58×1800 | 15 | 150 | 129 | 267 | 313 |
| GDL-SP58-1800-18 | 58×1800 | 18 | 180 | 108 | 223 | 261 |
| GDL-SP58-1800-20 | 58×1800 | 20 | 200 | 99 | 205 | 240 |
| GDL-SP58-1800-24 | 58×1800 | 24 | 240 | 90 | 187 | 219 |
| GDL-SP58-1800-30 | 58×1800 | 30 | 300 | 75 | 155 | 181 |
Main Production Line

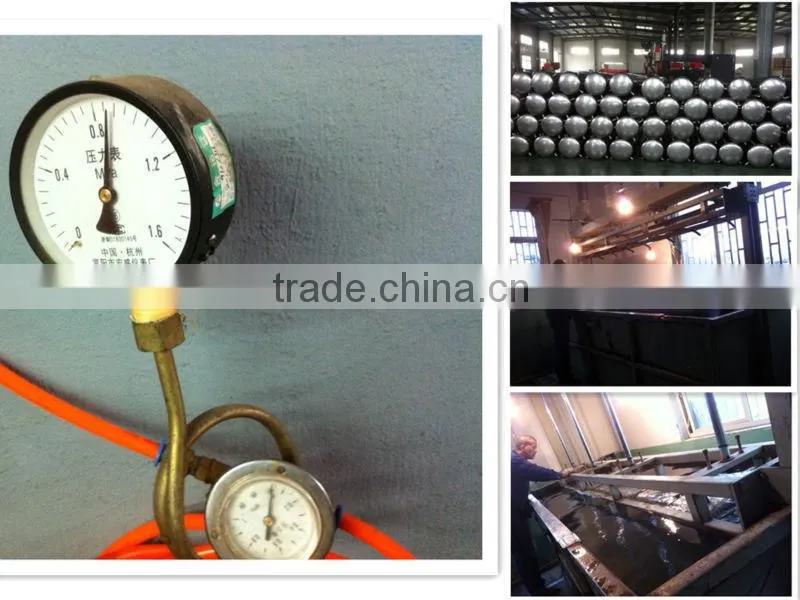

Quality Control
