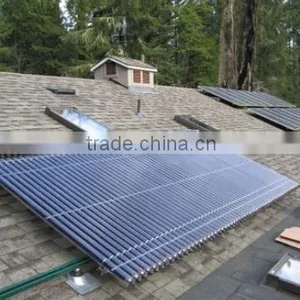

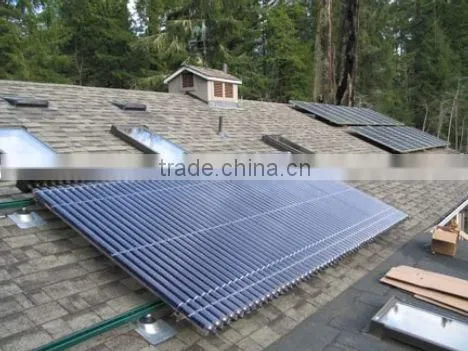

Solar Collector with Heat Pipe Solar Vacuum Tube

Specifications

lar collector
2.best quality solar collector manufacturer
urized solar collector
4.low price solar collector

         Solar Collector with Heat Pipe Solar Vacuum Tube

solar  collector Material and Features:

solar collector Tank	Inner Tank Thickness	1.5 mm/1.8mm/2.0mm
	Outer Tank Thickness	0.5 collector mm
	Inner Tank Material	SS 304
	Outer Tank Material	Galvanized steel/Stainless steel
	Color	According to customers'
Solar collector Bracket	Bracket Material	Galvanized steel Powder Coated
	Thickness	1.2mm
	Color	According to customers'
Solar collector Reflector	Material	stainless steel/Aluminium Alloy
	Type	Strip Type
Solar collector Insulation	Material	PUF
	Thickness	50 mm
Solar collector  Capacity	100,150,200,250,300,400,500 Liters
Solar collector  Warranty	5 years

solar collector vacuum tube Material and Features:

Tube structure		All-glass double-tube co-axial structure
Glass material		Borosilicate 3.3glass
Outer tube diameter and glass thickness		Φ =47± 0.7mm & T=1.6mm ± 0.15mm
		Φ =58± 0.7mm & T=1.6mm ± 0.15mm
Inter tube diameter and glass thickness		Φ =37± 0.7mm & T=1.6mm ± 0.15mm
		Φ =47± 0.7mm & T=1.6mm ± 0.15mm
Tube length		1500mm, 1800mm
	Coating material	AL-N/SS/Cu
Absorber coating	Sediment method	Three Targets magnetron sputtering plating
	Absorption	a: ≥92%(AM1.5)
	Emittance	ε ≤ 3.4% (80° C± 5° C)
Vacuum degree		P ≤ 5.0× 10 -3 Pa
Hail resistance		Φ 25 mm
Pressure-endure		0.8 Mpa
Temperature-endure		250° C
Life		> 15 years

solar collector Working Principle:





solar collector Details Pictures:









solar collector Loading Ability:



Model	Vacuum Tube		Tank	Loading Qty
	Size /mm	No	Capacity/L	20GP	40GP	40HQ
GDL-SP58-1800-12	58×1800	12	120	150	313	367
GDL-SP58-1800-15	58×1800	15	150	129	267	313
GDL-SP58-1800-18	58×1800	18	180	108	223	261
GDL-SP58-1800-20	58×1800	20	200	99	205	240
GDL-SP58-1800-24	58×1800	24	240	90	187	219
GDL-SP58-1800-30	58×1800	30	300	75	155	181



solar collector Thickness Measure and Argon Welding









solar collector Main Production Line







solar collector Quality Control







solar collector Certificates







Solar collector Exhibition
