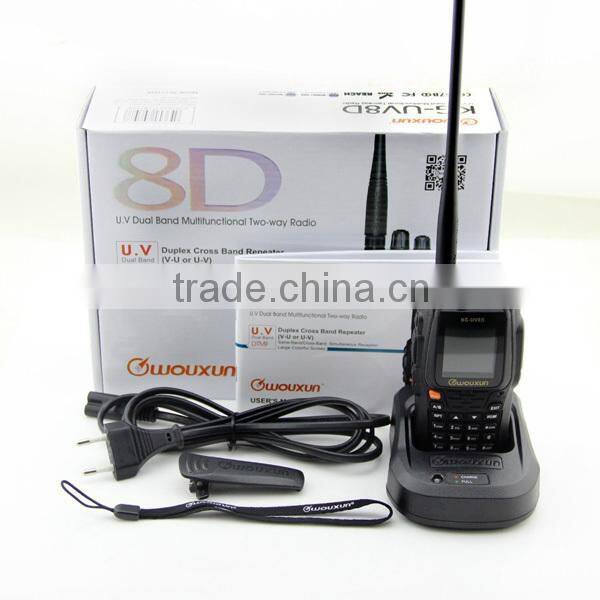

Help CenterKG-UV8D Dual Band 5watts Two Way Radio Walkie Talkie
Related Products
-
TESUNHO TH-UV7R Vhf Uhf Dual Band Ham Radio Two Way Radio With GPS FunctionUS$ 50 - 180MOQ: 2 Pieces -
TESUNHO TH-UV7R Army Green Walkie Talkie Ham RadioUS$ 50 - 180MOQ: 2 Pieces
-
TESUNHO TH-UV7R Handheld Type WALKIE TALKIE Ham Radio With GPSUS$ 50 - 180MOQ: 2 Pieces
-
TESUNHO TH-900 Handheld Type Waterproof Walkie Talkie Two Way RadioUS$ 8 - 33MOQ: 2 Pieces
-
TESUNHO TH-900 IP54 Waterproof Handheld Type Walkie Talkie Two Way RadioUS$ 8 - 33MOQ: 2 Pieces
dual band 5w vox wouxun two way radio
wouxun two way radio main features
1. Duplex Repeater(VHF to UHF or UHF to VHF)
2. Duplex Work Mode(TX on one area while RX on the other area simultaneously)
3. Dual Receiving (RX on the same/different bands of A&B areas simultaneously)
4. Large Colorful Screen
5. Frequency Range: 136-174 & 400-480MHz
6. 999 Memory Channels
7. Dual Display, Dual Band Dislay on Large Screen,Two Independent Operation System
8. Frequency Offset and Direction Programmable in Repeater Mode UHF/VHF or VHF/UHF Cross-Band Repeater
9. Strong and Stable Output Power(VHF:5W/UHF:4W)
10. VOX
11. QT/DQT Encoding/Decoding,QT/DQT Scan
12. Multi Definition for Sidekeys
13. Incoming Message Display(Caller ID display)
14. DTMF Encoding & Decoding
15. All Calls,Group Calls And Selective Calls
16. SOS Function
17. Priority Scan Function
18. Remote Alarm
19. Wide/Narrow Bandwidth Selection(25KHz/12.5KHz)
20. Voice Guide:Chinese/English
21. Chinese/English Screen Display
22. Bright Flashlight IIIuination
23. Single-Tone Pulse Frequency:2100Hz/1750Hz/1000Hz/1450Hz (signaling for activating repeater)
24. Reverse Frequency
25. Stopwatch
wouxun two way radio specification
| Model | KG-UV8D |
| Frequency Range | VHF:136-174 UHF:400-479.995MHz |
| Channel capacity | 999CH |
| Output power | 5W/1W(VHF) |
| 4W/1W(UHF) | |
| Operating Voltage | 7.4VDC |
| Antenna Impedance | 50 ohm |
| Working Temperature | -20°C—+40°C |
| Frequency Spacing | 5/6.25/10/12.5/25/50kHz |
| Battery capacity | 1700mAh |
| Dimension(Exclude antenna) | 124.5x61.49x33.88(mm) |
| Weight(Include Battery) | 229g |
| Wide/Narrow bandwidth selection | 12.5/25kHz |
| Single pulse frequency audio | 2100Hz/1750Hz/1000Hz/1450Hz (Used to activate the trunking signaling) |
| Specification | |
| Modulation | 16k F3E |
| Adjacent channel power | >=70dB |
| Audio Response | +1—3dB(0.3—3kHz0 |
| Max:Frequency deviation | ±5kHz |
| Frequency stability | ±2.5ppm |
| Audio Distortion | <=5% |
| Adjacent channel selectivity | <=70dB |
| Inter modulation | <=65dB |
| Sensitivity | UHF/VHF:0.25µV(12dB SINAD) |
| Audio Power | <=500mW |
| SNR | >=45dB |
| MOQ | 2 for samples; 100 for mass production; 500 for OEM |
| Packaging | Gift box, 20pcs/carton |
| Trade Terms | FOB Xiamen/Shenzhen/Hangzhou |
| Express delivery | DHL/UPS/FEDEX/EMS/TNT |
| Delivery time | 3-5 days after receiving the payment |
| Payment | T/T, West Union, Money Gram, PayPal,Escrow or LC |
| Warranty | Radio 1 years; Accessories 3 Months |
Warranty
| Item | Period | Service |
| Main Unit | 2 Years Warranty |
finish maintainance within 1-15days after receiving the returned units |
| Battery | Half Year Warranty |
Within Half Year:send you brand new one if it is not manually damaged; Beyond Half Year:supply cost-effective renovation |
| Charger | Half Year Warranty |
Within Half Year:send you brand new one if it is not manually damaged; Beyond Half Year:supply cost-effective renovation |
Design Services
| Project |
| Repeater Design and Production |
| PCB/PCBA Design and Production |
| Chip programme Design and Production |
| Analog walkie talkie Design and Production |
| Internet walkie talkie Design and Production |
| Digital walkie talkie Design and Production |
| Switching power supply Design and Production |
| Repeater Design and Production |
| Professional |
10 years Electronics Design Experience. Powerful and reliable R&D team. |
| Effective |
Instant respond to customer's enquiry. Control design and productive cost, cost-effective. |
| Trusted |
Never reveal customers design. Exclusivity is guaranteed! |
| To-be-perfect | Because of all the above. |
| Target Customer |
Who has distinctive foresight on the industry. Who wants to save the high expenses on R&D in order to enhance integrated competition. Whole sellers who has a large local market and wants its own brand. |
Leave an enquiry for more details about the wouxun two way radio!
