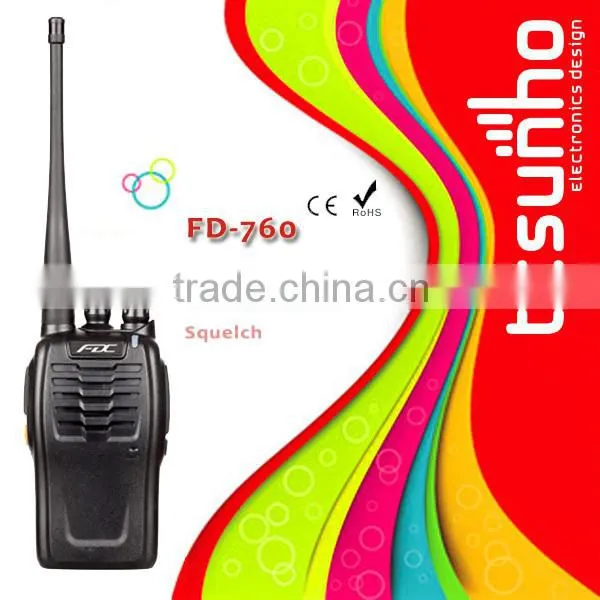

FDC FD-760 Uhf Long Range Radio Interphone Walkie

FDC FD-760 Uhf Long Range Radio Interphone Walkie thumbnail-1
FDC FD-760 Uhf Long Range Radio Interphone Walkie photo-1
US$ 1 - 55 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
FDC radio interphone walkie
Model Number:
FD-760 radio interphone walkie
Contact Supplier Request Quote Chat Now
Quanzhou Fengze Tesunho Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/XIAMEN/HANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name FDC radio interphone walkie
Model Number FD-760 radio interphone walkie
Type Handheld
Dimensions 104(W)mmx62(L)mmx36mm(D)
Frequency Range 400-470MHZ
Storage Channel 16 channels radio interphone walkie
Talk Range 3-10KM radio interphone walkie

FDC FD-760 uhf long range radio interphone walkie

uhf long range radio interphone walkie
FDC FD-760 uhf long range radio interphone walkie



radio interphone walkie main features



Scrambler function;De-emphasis function

Voice Compandor function

High Voltage protection

High/low power switchable

Wide/narrow band selection

Monitor function;TOT function

Add scan channel and priority channel scan

Emergency alarm function

High-quality audio output

VOX function,VOX level(0-9) adjustable

Low battery alarm with voice prompt

Busy channel lockout

Voice function

Battery indicator;Battery save

Squelch Level adjustable



FDC FD-760 uhf long range radio interphone walkie



radio interphone walkie specification



Model NO.

FD-760(CE+RoHS approved)

General

Frequency Band

VHF(Not Available)

UHF

Frequency Range

136-174MHz

350-390MHz/400-470MHz/460-520MHz

Channel Capacity

16

Operating Voltage

7.2V DC ±15%

Antenna Impedance

50Ω

Channel Spacing

12.5kHz/25kHz

Working Temperature

-30 °C - +60 °C

Frequency Stability

±2.5 ppm

Size (Without Antenna)

104(W)mmx62(L)mmx36mm(D)

Weight(With Battery)

about 250g

Battery

1500 mAh(Li-ion)

Transmitter

RF Power Output

5W/4W

Modulation Type

F3E

Modulation Distortion

< 5%(300-3000Hz)

Max Freq Deviation

< 5kHz(1000Hz When 100%)

FM Noise

<=-45dB

Receiver

Sensitivity(12Db SINAD)

0.16μV

Selectivity

55dB

Adjacent Channel Selecivity

>=70dB

Noise Respond

>=60dB

Communication Range

3-5km(Downtown),6-20km(In the Open Area)

FM Noise

30dB/40dB

Modulation Type

8K/16KF3E

Audio Power Output

500mW When Distortion Less Than 10%

Audio Distortion

< 5%

Operating Bandwidth

±3.5kHz/3.75kHz

Standby Current

< 12mA













Packaging & Shipping



FDC FD-760 uhf long range radio interphone walkie



FDC FD-760 uhf long range radio interphone walkie





FDC FD-760 uhf long range radio interphone walkie



MOQ 2 for samples; 100 for mass production; 500 for OEM
Packaging Gift box, 20pcs/carton
Trade Terms  FOB Xiamen/Shenzhen/Hangzhou
Express delivery DHL/UPS/FEDEX/EMS/TNT
Delivery time 3-5 days after receiving the payment
Payment T/T, West Union, Money Gram, PayPal,Escrow or LC
Warranty Radio 1 years; Accessories 3 Months
