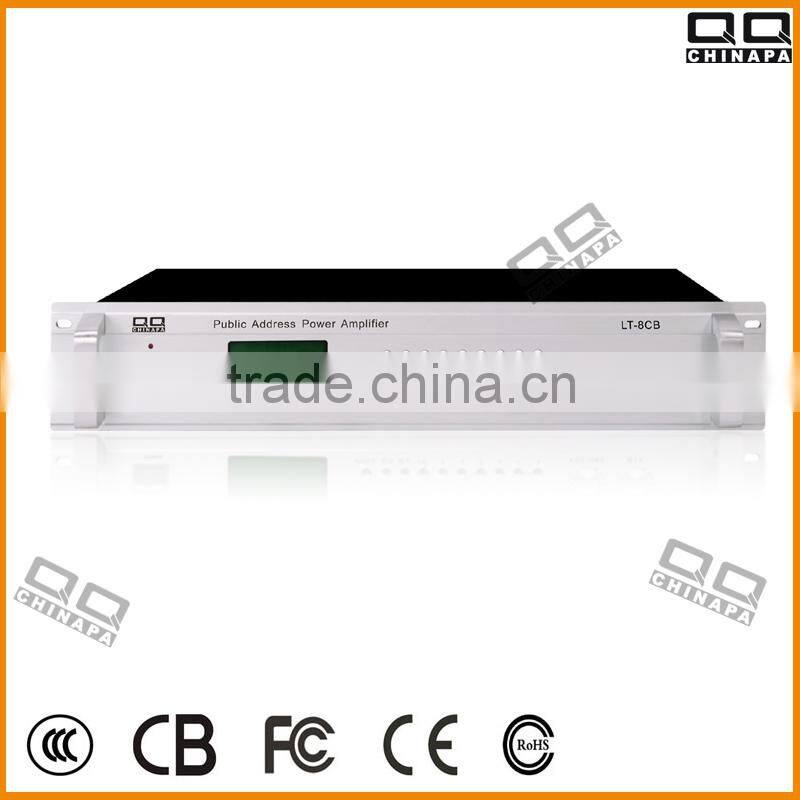

IP network audio adapter built-in digital class-D 60W, 120W, 240W & 350W amplifier.
Since2005, over 10 years OEM /ODM experience in Pulic Address System and Professional Audio System ,strict quality control and good price
Product Advantages:
1. Stable quality,Good price
2.Short product period
3. On time delivery
4. OEM Ability
5. Excellent R&D team
Product Features:
* Direct to receive internet audio source and transmit to 70V, 100V and low impedance loudspeakers.
* Non-dedicated network system solution.
* Could be installed anywhere of the LAN network.
* Economy network audio solution for multiple speaker applications.
* With 3.4 inch LCD screen humanized operation interface.
* Zone definition is done through software, each network audio adapter could be regard as one zone, or several audio adapters could be taken as one zone, moreover, several zones could be defined as group for synchronous operation.
* One Aux input and one local microphone input, both with volume control.
* A remote control over IP address change and write in, volume control and local program selection from server.
* Voice evacuation system with higher priority and local input with secondary priority. Moreover, the local input and program source priority could be customized.
| Model | LT-8C60 | LT-8C120 | LT-8C240 | LT-8C350 | LT-8C650 |
| Power Output | 60W | 120W | 240W | 350W | 650W |
| Speaker Output | 70V, 100V & 4-16ohms | ||||
| Network Input | Standard RJ45 | ||||
| Protocol Support | TCP/IP, UDP, IGMP | ||||
| Audio Formats | MP3/MP2 | ||||
| Sampling Rate | 8K~48KHz | ||||
| Bit Rate | 8K~512Kbps | ||||
| Transmit Speed | 10Mbps | ||||
| Audio Format | 16 digit stereo CD level | ||||
| Frequency Response | 60-18KHz(+1dB, -3dB) | ||||
| THD | THD ≤ 0.1% | ||||
| S/N Ratio | ≥65dB | ||||
| Aux Input | 350mV | ||||
| Mic Input | 10mV | ||||
| EMC input | 775mV | ||||
| Power Consumption | 90W | 180W | 370W | 540W | 650W |
| Standby Power Consumption | <3W | ||||
| Protection | High temp, overload and short-circuit | ||||
| Working temp | 5 ℃~40℃ | ||||
| Humidity | 20%~80% | ||||
| Power Supply | ~110V/60Hz or ~230V/50Hz | ||||
| Dimensions | 484x303x88mm | ||||
| Weight | 10Kg | 11Kg | 15Kg | 16Kg | 32KG |
| price (usd | 133 | 166 | 200 | 250 | 460 |
| Model | LT-8C60 | LT-8C120 | LT-8C240 | LT-8C350 | LT-8C650 |
| Power Output | 60W | 120W | 240W | 350W | 650W |
| Speaker Output | 70V, 100V & 4-16ohms | ||||
| Network Input | Standard RJ45 | ||||
| Protocol Support | TCP/IP, UDP, IGMP | ||||
| Audio Formats | MP3/MP2 | ||||
| Sampling Rate | 8K~48KHz | ||||
| Bit Rate | 8K~512Kbps | ||||
| Transmit Speed | 10Mbps | ||||
| Audio Format | 16 digit stereo CD level | ||||
| Frequency Response | 60-18KHz(+1dB, -3dB) | ||||
| THD | THD ≤ 0.1% | ||||
| S/N Ratio | ≥65dB | ||||
| Aux Input | 350mV | ||||
| Mic Input | 10mV | ||||
| EMC input | 775mV | ||||
| Power Consumption | 90W | 180W | 370W | 540W | 650W |
| Standby Power Consumption | <3W | ||||
| Protection | High temp, overload and short-circuit | ||||
| Working temp | 5 ℃~40℃ | ||||
| Humidity | 20%~80% | ||||
| Power Supply | ~110V/60Hz or ~230V/50Hz | ||||
| Dimensions | 484x303x88mm | ||||
| Weight | 10Kg | 11Kg | 15Kg | 16Kg | 32KG |
| price (usd | 133 | 166 | 200 | 250 | 460 |
