Promotion price ! High quality stucco embossed aluminum coil 1050 1060 300 3105 alloy
| Products Name | stucco embossed aluminum coil |
| available alloy |
1100 1050 1060 3003 3105 3005 3104 5005 5052 5182 5754 6061 7075 6082 8011 8079 |
| thickness | 0.2~10mm |
| width | 10~2500MM |
| Surface | without oil on surface , with out bend ,scratch |
| Products standards | GB/T3880 ,ASTM,YS |
| MOQ | 1000KGS |
| Produce leading time | 20~30working days |
| Payments term | L/C ,T/T ,D/A,D/P |
| Sample | availbale (deliery fee by clients) |
| Roller inner diameter | 76/152mm(Aluminum or Steel Core) |
| Roller out diameter | 100~1500mm |

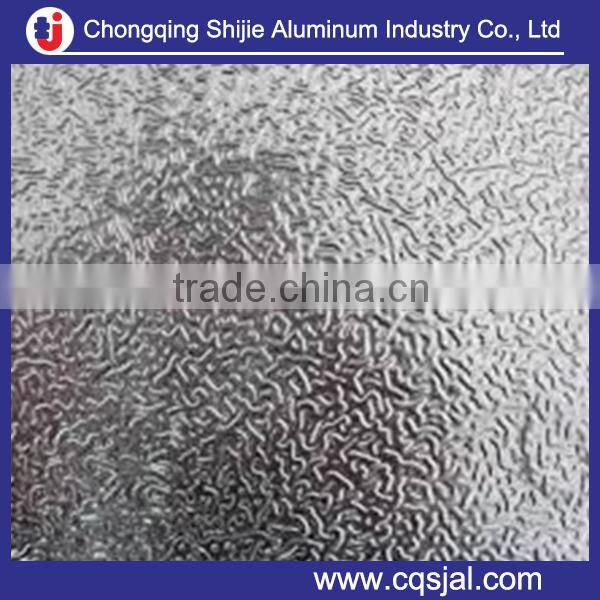

| stucco embossed aluminum coil Picture | |
|
| |
| End appplication |
stucco embossed aluminum plates could be widely used in corrosion prevention,insulation ,interior and exterior decoration, refrigerator, freezer liner and top grade stadiums, etc. composited with craft paper ,the aluminum plates could be more effective in corrosion prevention and thus could be used in petroleum ,electric power ,chemical industry and stadium construction. |
| coating | PE (Polyester)/EPOXY/PVDF |
| color | Ral color chart , as per clients sample |
| Coating thickness | 10~25Um |
Adhesion |
5B(EN ISO-2409:1994) |
| T benb | 0T~3T |
Impact resistance |
No cracking and peeling(A.S.T.M D2794-1993) |
| Mek resistance Test | More than 100times |
| color coated details (all RAL color no. is available for coating or as per clients sample ) | |
|
| |

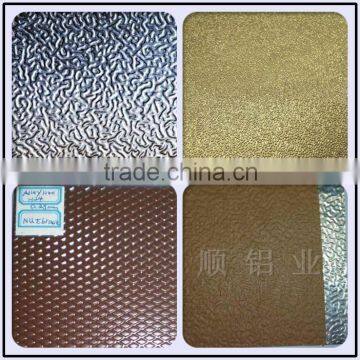

Embossed details :
| Stucco embossed (mill finish / coated finish ) | Diamond embossed (mill finish / coated finish) |
|
|
| Anti-sleeping tread sheet (1bars ,2-bars) | corrugated sheet/coil |
|
|
| Alloy |
Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Al |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | -- | -- | 0.03 | 0.03 | 99.6% | |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | -- | -- | 0.05 | 0.03 | -- | 99.5% |
| 1100 | 0.95 | 0.05~0.2 | 0.05 | -- | -- | -- | 0.1 | -- | -- | 99% | |
| 3003 | 0.6 | 0.7 | 0.05~0.2 | 1.0~1.5 | -- | -- | -- | 0.1 | -- | -- | Remainder |
| 8011 | 0.5~0.9 | 0.6~1.0 | 0.1 | 0.2 | 0.05 | 0.05 | -- | 0.1 | 0.08 | -- | Remainder |
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) , loading 30~40 tons.
| products | package method | unit weight |
| aluminum sheet | paper enleaved on wooden pallet | 1~2.5tons |
| aluminum coil | eye to sky (vertical) or sky to wall(horizontal) | 1~2.5tons |
| aluminum circle | packed in wooden case | as clients request |
| aluminum foil | big roll or small roll | 70~2500kgs |
lor coated embossed aluminum coil
2.aluminum alloy plates
3.aluminum alloy coil
4.Aluminum foil
5.aluminum strip
6.stucco, tread embossed aluminum plates composited with craft paper
7.Special coated aluminum strip (this coated alu strip can be bond on PVC ,ABS ,TEP ,PP ,TPV material for automobiale weather strip)
Chongqing Shijie aluminum Industry Co.Ltd
We offer kinds of aluminum material including the aluminum sheet /coil ,color coated aluminum sheet ,such as PE/PVDF/EPOXY/ PVC/TPE/EPDM basing coating ,also including the kinds of embossed aluminum sheet . Our material widely used for contruction ,building ,decoration ,automobile ,device parts. Our team with rich experience on exporting and abtained clients trust and good reputation from all of the world market.
PE color prepainted aluminum rolls/coils/strips/sheets
Our PE coated aluminim coils are manufactured through precise roller coating & baking technology.
The various colors are bright and vivid with small color difference. Our PE coated aluminium coils are of high impact resistance and could be easily processed and their properties reach national standard of China.
It can be used in indoor decoration, roofing, ceiling, curtain walling, composite panel, signboard, electric appliances and car, etc.
PVDF color prepainted aluminum rolls/coils/strips/sheets
Our PVDF coated aluminium coils are manufactured through roller coating & baking with coating materials supplied by BECKER of Sweden and PPG of America, both of which are of world famous.
With high quality PVDF materials, our PVDF coated coils have great weather-resistance, anti-ultraviolet capability and corrosion-resistance. In normal outdoor environment, The color and gloss of our coated coils could keep in good condition for more than 20 years. Due to their high abrasion, impact resistance and flexibility, our coated coils are of excellent workability.
It is widely used for Aluminum Composite Panels (ACP), roofing, curtain walling etc.
Certificate : ISO9001 ,Argentina charmber legalized original certificate :
1, Are you factory or manufacturer ?
we are factory and the one of Chinese top coating aluminum material manufacturer.
2,Can you provide the sample ?
Yes ,We can supply the sample for you check the quality .but you need arrange the express cost .
3, what is your MOQ?
Normally the Mimium order quantity is 5000KGS. but it is also possible less them 5000kgs if there is available material in stock,
4,Do you accept the L/C?
Yes , we accept the L/C payment term .
5, How about your production leading time?
Normally it can be finished within30days
If you have any inquiry on Heat insulation purpose stucco embossed aluminum jacketing coil 1050 1060 300 3105 alloy or interest into discussing more details , pls feel free to contact me by the following infomation
