Home > Consumer Electronics > Two Way Radio > Handheld Two Way Radio > T-777 UHF400-480MHz Two Way Radio

T-777 UHF400-480MHz Two Way Radio

T-777 UHF400-480MHz Two Way Radio photo-1

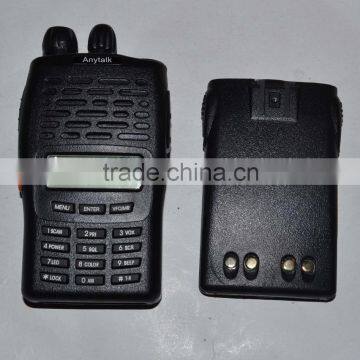

T-777 UHF400-480MHz Two Way Radio photo-2

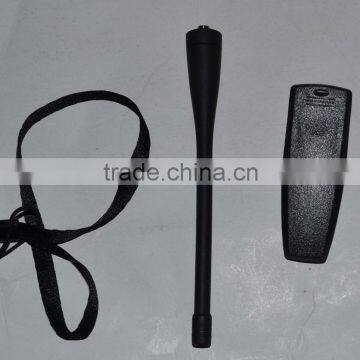

T-777 UHF400-480MHz Two Way Radio photo-3
T-777 UHF400-480MHz Two Way Radio photo-4

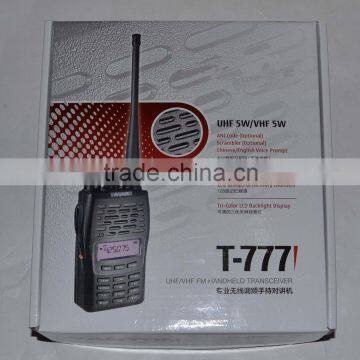

T-777 UHF400-480MHz Two Way Radio photo-5
US$ 30 - 36 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Anytalk two way radio
Model Number:
T-777 transceiver
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB XIAMEN SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name Anytalk two way radio
Model Number T-777 transceiver
Type Handheld
Dimensions 100*55.5*31MM
Frequency Range 136-174MHz or 400-480MHz
Storage Channel 128 channels
Talk Range 3-5KM

T-777 UHF400-480MHz two way radioT-777 UHF400-480MHz two way radio



T-777 UHF400-480MHz two way radio

ANYTALK Walkie Talkie, the legitimate use of green and healthy.

Walkie Talkie the Green public radio, can completely relieve your worries!

T-777 UHF400-480MHz two way radio

1.Output Power:1W/5W
2.Frequency Range: 136-174MHz/245-246MHz/

                   350-390MHz/400-480MHz
3. 128 Memory Channels
4.Reverse Frequency Function
5.CTCSS/DCS Function

6.Channel Name Setting

7.Wide/Narrow Band Selective
8.High/Low Power Selective
9.Transmitter Time-out Timer(TOT)
10.Group Calls / Selective Calls
11.Busy Channel Lock
12.Multi and Priority Channel Scan Function
13.PC Software Programmable
14.Scrambler(Optional)
15.ANI ID Function
16.VOX Function
17.Tri-color Backlight Adjustable
18.Low Battery Alarm
19.Squelch Level Setting

20.LED Display
21.Beep Setting
22.Channel Spacing

23.Battery Power Display

24.Auto Keypad Lock

25. 0-9 Grades Voice Sensitivity Selectable
26.Backlight Setting

27.Emergency Alarm Function
28.Frequency Difference Setting
29. 1200mAH Li-ion Battery


SPECIFICATION

GENERAL

Frequency Range

VHF: 136~174MHz,350~390MHz / UHF: 400~480MHz

Operating Temperature

-20°C~+60°C

Frequency Combination

Phase lock frequency synthesize

Frequency Stability

±2.5ppm

Memory Channel

128 Channels

Working voltage

DC7.4V (Li-ion Battery)

Antenna Impedance

50Ω

Operating Mode

Simplex of co-frequency or alien frequency

Dimension

100mm×55.5mm×31mm

Weight

230g (Include Battery Pack)

TRANSMIT PART
RF Power
:1W/5W
Modulate Mode (W/N)
:F3E
Max. Freq. Deviation (W/N)
:≤5KHz
Remain Wave Radiation
:<-60dB
Transmitting Current
:≤1000mA

RECEIVE PART
Sensitivity
:<0.20μV(12dB SINAD)
Squelch Sensitivity
:<0.20μV
Intermodulation Antijamming
:50dB
Audio Power output
:500mW
Receiving Current
:≤100mA
Squelch Standby
:20mA





T-777 UHF400-480MHz two way radio

T-777 UHF400-480MHz two way radioT-777 UHF400-480MHz two way radioT-777 UHF400-480MHz two way radioT-777 UHF400-480MHz two way radioT-777 UHF400-480MHz two way radio

T-777 UHF400-480MHz two way radio

Type: T-777 two way radio/ walkie talkie

Color: black, Red

Weight: 1KG/SET

Size:   100*55.5*31MM

T-777 UHF400-480MHz two way radioT-777 UHF400-480MHz two way radioT-777 UHF400-480MHz two way radio

Using rechargeable walkie-talkie for the first time, please charge for 16 hours.

Turn off your computer before removing the battery.

Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range.

Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face.

Please try to use while driving handsfree speaker and the closing words.

Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized.

The interphone Do things together with other metal-containing storage.

Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives.

Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment.

Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then.

In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified).
