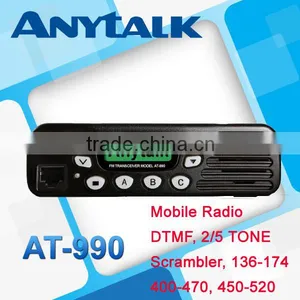

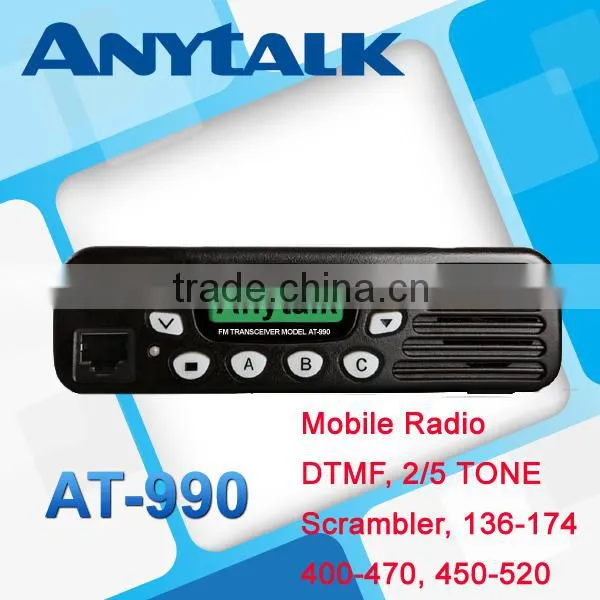

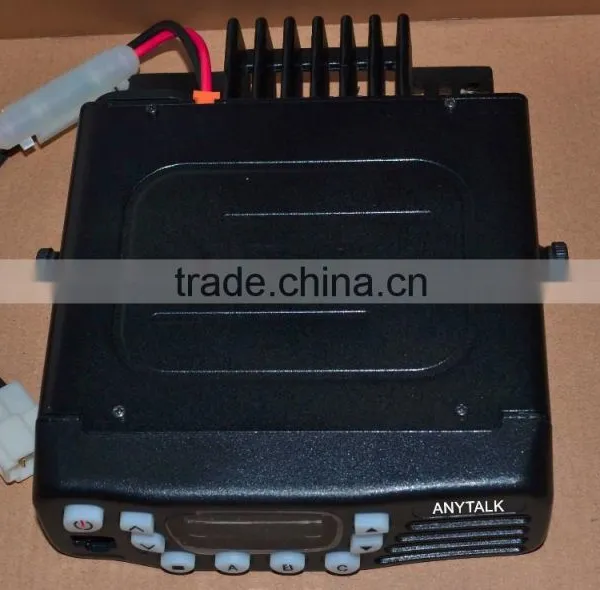

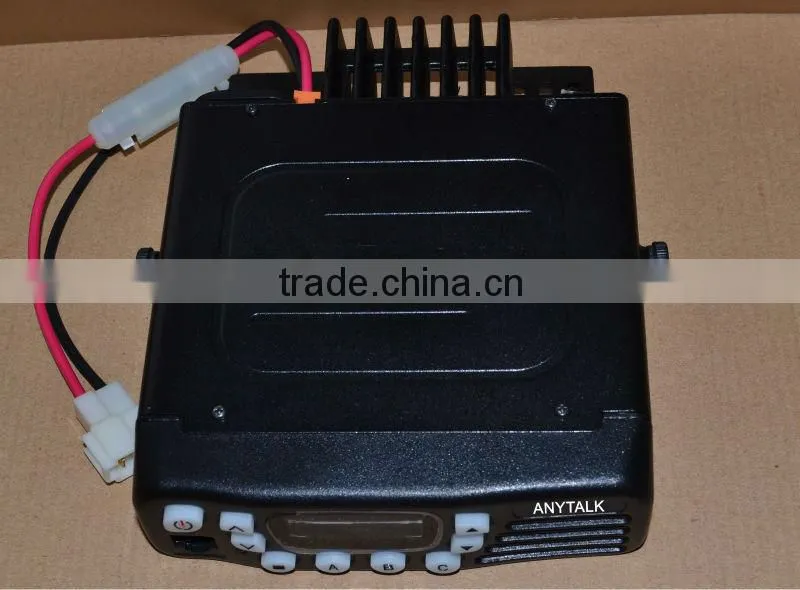

AT-990 VHF UHF DTMF scrambler DMPR mobile radio base
- 50000 Piece / Pieces per Month
- FOB XIAMEN SHENZHEN
- Credit Card PayPal
You May Like
Product Details
Place of Origin | Fujian, China | Brand Name | Anytalk mobile base radio | |
Model Number | AT-990 TAXI radio | Type | Handheld | |
Dimensions | 145*135*40 mm | Frequency Range | VHF:136-174MHz UHF:400-470 MHz 450-520MHz | |
Storage Channel | 128 channels | Talk Range | 5-10KM vehicle radio |
Product Description
ANYTALK base station radio, the legitimate use of green and healthy.
Walkie Talkie the Green public radio, can completely relieve your worries!
VHF136-174,UHF400-470,450-520MHz
128 channels, DTMF,5-TONE,2-TONE,CTCSS/DCS
Inspection, monitor, stun and kill function
Audio compander, scrambler
High/Low power output switchable
Multi-scan mode, Emergency alarm
Busy channel locked(BCL), TOT Time-out timer(TOT)

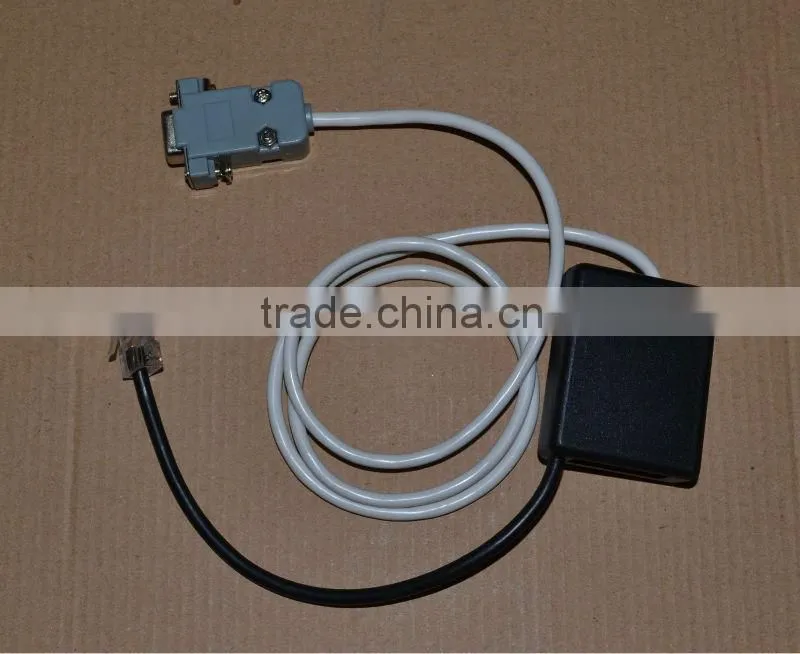

PC programming
General | |
Frequency range | VHF:134-176MHz UHF:400-470MHz/450-520MHz |
Channels | 128 channels |
Channel spacing | 25KHz(width) /12.5KHz(narrow) |
Channel step | 5 KHz,6.25KHz |
Voltage | 13.8V DC, cathode grounded |
Current | Transmitting <8A, receiving <1A, standby <0.4A |
Operating temperature | -30℃— +60℃ |
Frequency stability | ≤±2.5ppm |
Antenna impedance | 50Ω |
Dimension | 145(L)×135(W)×40(H)MM |
Weight | 1020g |
Receiver | |
Sensitivity(at 12dB SINARD) | ≤0.25uV(width) ≤0.28µV(narrow) |
Adjacent channel selectivity | ≥75dB(width) ≥70dB(narrow) |
Intermodulation rejection | ≥75dB |
Spurious response rejection | ≥75dB |
Block | ≥95dB |
Audio output power | 2W(inner) 4W(external) |
Audio response | +1/-3dB |
Audio distortion @ Rated audio | ≤3% |
Transmitter | |
Power output | 25W |
Clutter & harmonic | -36dBm<1GHz -30dBm>1GHz |
FM noise | 45dB(width)/40dB(narrow) |
Modulation mode | 16KΦF3E(width) / 8KΦF3E(narrow) |
Max frequency deviation | ≤±5KHz(width) /2.5KHz(narrow) |
Speaker impedance | 600Ω |
Audio response | +1/-3dB |
Audio distortion | ≤3% |
Type: AT-990 two way radio, walkie talkie, transceiver, interphone, 2 way radio
Color: black
Weight: 2KG/SET
Size: 145*140*40MM for radio body
Using rechargeable walkie-talkie for the first time, please charge for 16 hours.
Turn off your computer before removing the battery.
Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range.
Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face.
Please try to use while driving handsfree speaker and the closing words.
Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized.
The interphone Do things together with other metal-containing storage.
Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives.
Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment.
Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then.
In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified).
