Home > Consumer Electronics > Two Way Radio > Handheld Two Way Radio > TH-UVF9 Hot Selling Two Way Radio With Dual Band

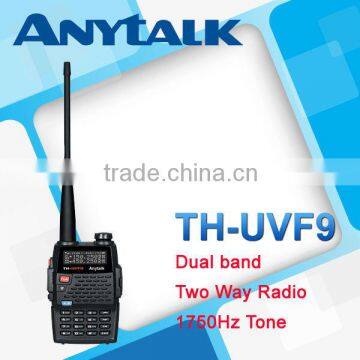

TH-UVF9 Hot Selling Two Way Radio With Dual Band

Name: TH-UVF9 Hot Selling Two Way Radio With Dual Band
Brand: ANYTALK dual band radio
SKU: 134302525
Availability: InStock

TH-UVF9 Hot Selling Two Way Radio With Dual Band thumbnail-1

TH-UVF9 Hot Selling Two Way Radio With Dual Band photo-1

US$ 36 - 40 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

ANYTALK dual band radio

Model Number:

TH-UVF9 two way radio with dual band

Contact Supplier Request Quote Chat Now

Quanzhou Anytalk Telecom Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name ANYTALK dual band radio

Model Number TH-UVF9 two way radio with dual band

Type Handheld

Dimensions 100*52*32MM

Frequency Range Dual band for 136-174+400-470

Storage Channel 128*2 channels

Talk Range 3-5KM

KEWOOD Walkie Talkie, the legitimate use of green and healthy.

Walkie Talkie the Green public radio, can completely relieve your worries!

Functions:

Tri-band, dual display, dual standby	A/B band independent operation
Scrambler	COMP
*1282 groups channels storage**	FM radio and 25 stations storage
Wide/Narrow Band(25kHz/12.5kHz)	0~9 grades VOX selectable
Chinese/English voice prompt	CTCSS/DCS and scanning
1750Hz tone	PTT & ANI ID
Priority transmit selectable	0~9 grades squelch level setting
LED display mode	Keypad beeper setting
Transmit over beeper	Dual watch/monitor
Receive saving function	Auto keypad lock
Power-on display	Battery power voltage
Power-on message	Repeater offset function
Channel name display and setting	Repeater shift direction
VFO step function	Shortcut menu operation mode
Emergency Alarm	DTMF encoder & decoder
Remote skill/stun/activate(optional)	High/Low TX power selectable
Busy channel lock-out(BCLO)	Transmitter time-out timer(TOT)
Voice companding	Tri-color background light selectable
PC programmable	Wire clone

Parameter:

Item number	TH-UVF9
General
Frequency Range	70-108MHz(FM Receive only) 136-174MHz 350-390MHz 400-470MHz Or 70-108MHz(FM Receive only) 220-260MHz 350-390MHz 400-470MHz
Channel No.	*1282**
Frequency Stability	±2.5ppm
Antenna	High gain antenna
Antenna Impedance	50Ω
Operating Voltage	DC 7.2V
Mode of operation	Simple or semi-duplex
Dimension(W x H x D)	100 x 52 x 32 mm
Weight	250g(including battery, antenna)
Transmitter
Output power	≥4W(H) ≥0.5W(L)
Modulation Mode	16kΦF3E / 11kΦF3E
Maximum deviation	<5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation	<7μW
Adjacent Ch. power	≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics	6dB
Current	≤1.6A(5W)
CTCSS/DCS deviation	0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity	8-12mv
Intermediation distortion	<10%
Receiver
RF Sensitivity	-122dbm(12db SINAD)
Audio power	≥0.5W
Audio Distortion	≤10%
Intermediation	≤-65dB(Wide) / ≤-60dB(Narrow)
Selectivity	≤-65dB(Wide) / ≤-60dB(Narrow)
Spurious Rejection	≤-65dB
Blocking	≥85dBuv/m

Type: TH-UVF10 two way radio with dual band

Color: black, red, military, orange, blue

Weight: 0.8KG/SET

Size: 100*52*32mm for radio body

Using rechargeable walkie-talkie for the first time, please charge for 16 hours.

Turn off your computer before removing the battery.

Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range.

Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face.

Please try to use while driving handsfree speaker and the closing words.

Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized.

The interphone Do things together with other metal-containing storage.

Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives.

Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment.

Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then.

In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified).

To avoid electromagnetic interference / compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe.
