Help CenterBaofeng UV-5RA Dual Band Long Range Walkie Talkie
Related Products
-
Quanzhou Baofeng Pofung UV-8D Single Band 400-520Mhz Two Way RadioUS$ 18 - 20MOQ: 50 Pieces -
Baofeng Pofung UV-82 Newest Dual Band Two Way RadioUS$ 30 - 35MOQ: 50 Pieces
-
UVK4AT Very Good Design Dual Band Two Way RadioUS$ 28 - 32MOQ: 50 Pieces
-
High Power 10W New Dual Band Two Way RadioUS$ 50 - 60MOQ: 50 Pieces
-
Baofeng Pofung UV-B6 Very Hot Dual Band Walky TalkyUS$ 28 - 35MOQ: 50 Pieces
AYYTALK Walkie Talkie, the legitimate use of green and healthy.
Walkie Talkie the Green public radio, can completely relieve your worries!
Dual Band/Dual Watch
High Illumination Flashlight
Priority Channel Scanning
VOX/FM radio Built-in
CTCSS/DCS Scanning
Emergency Alarm
Call Tone (1750Hz)
High/Low output power
DTMF encoded
General | |
Frequency Range(Dual Band) |
VHF136-174MHz/UHF400-480MHz |
Channel Capacity |
128 |
Channel Spacing |
2.5/5/6.25/10/12.5/20/25KHz |
Operated Voltage |
7.4V |
Battery Capacity |
H-1800mAh Li-ion |
Battery Life(5-5-90 duty cycle) |
About 10 hours |
Frequency Stability |
±2.5PPM |
Operated Temperature |
-20°C-+60°C |
Antenna Impedance |
50Ω |
Dimensions |
109.5mm*59.5mm*34.3mm |
Transmitter | |
RF Power Output |
4W/1W |
Modulation |
F3E |
Spurious Emission |
65dB |
FM Noise |
45dB(W)/42dB(B) |
Audio Distortion |
≤5% |
Transmitting Current |
<1.3A |
Receiver | |
Sensitivity(12dB SINAD) |
≤0.20uV |
Selectivity |
60dB/55dB |
Inter-modulation |
≥65dB |
Adjacent Channel Selectivity |
≥65dB |
Spurious Response |
≥60dB |
FM Noise |
45dB(W)/42dB(N) |
Audio Power Output |
1000mW |
Audio Distortion |
≤5% |

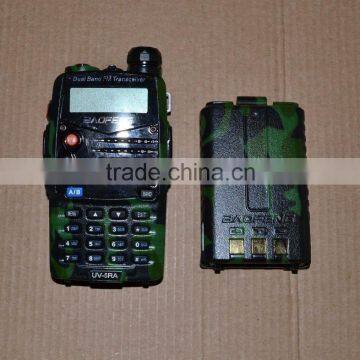

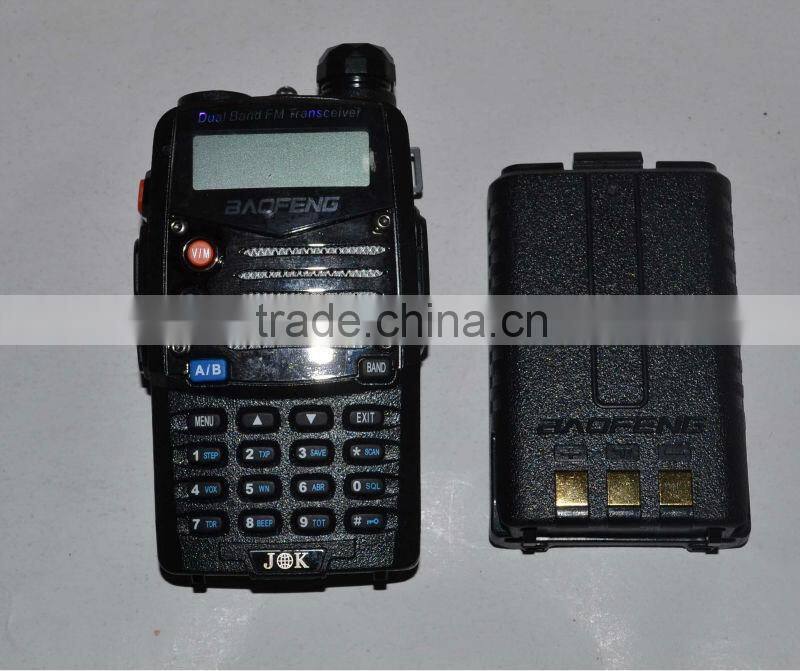

Type: UV-5RA dual band radio
Color: black, red, military, orange, blue
Weight: 0.8KG/SET
Size: 109.5mm*59.5mm*34.3mm for radio body
Using rechargeable walkie-talkie for the first time, please charge for 16 hours.
Turn off your computer before removing the battery.
Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range.
Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face.
Please try to use while driving handsfree speaker and the closing words.
Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized.
The interphone Do things together with other metal-containing storage.
Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives.
Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment.
Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then.
In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified).
To avoid electromagnetic interference / compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe.
