Cheapest ! Overhead Surgical Lights Operating Lamp With Camera
US$ 230 - 9,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Surgical Lamps
Brand Name:
Keling
Model Number:
KL700/700-III (vedio camera)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheapest! 600III Shadowless Ceiling Operating Theatre Light 600IIIUS$ 230 - 1,600MOQ: 1 Set -
Cheapest! KL05L (ceiling Type) Surgical Operation OT Lamp Shadowless Operating LampUS$ 230 - 260MOQ: 1 Set
-
Shadowless Operating Surgical Led LightUS$ 250 - 7,500MOQ: 1 Set
-
Cheapest! Ceiling Operating Lamp Operating Theatre Lamp Shadeless Operating LampUS$ 230 - 3,300MOQ: 1 Set
-
Cheapest! Medical Halogen Light OPERATION LIGHT KL700-IIIUS$ 230 - 2,500MOQ: 1 Set
Type
Surgical Lamps
Brand Name
Keling
Model Number
KL700/700-III (vedio camera)
Place of Origin
Jiangsu, China
Specifications
@Professional manufacturer since 1996@Reliable quality,affordable price,sound service
@CE & ISO approval
@OEM&ODM available

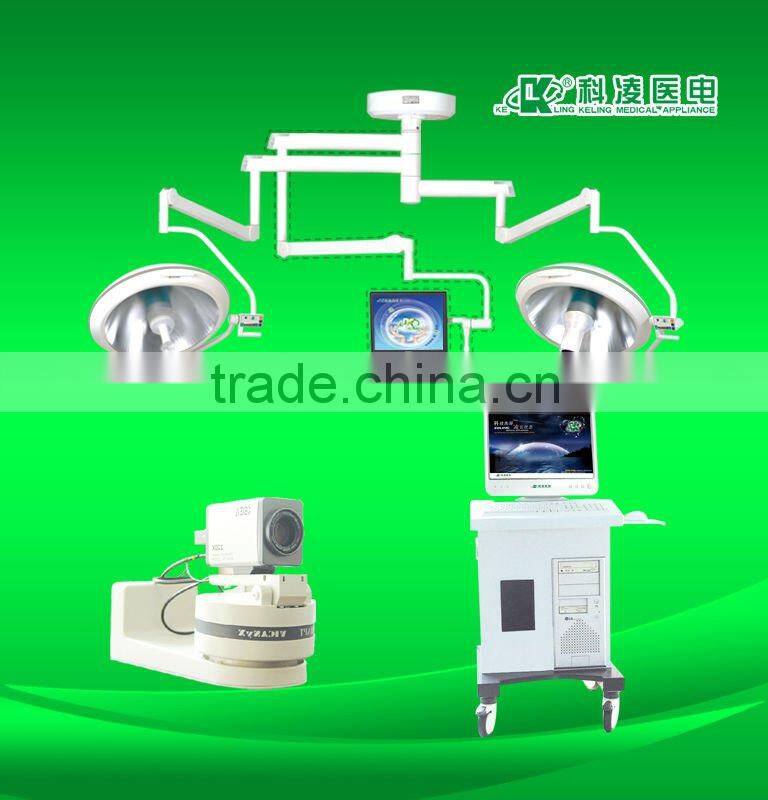

(KL700/700-III) Operating Lamp With Video Camera
KL camera lamp consists of major and auxiliary vidicons, multimedia computer controlled digital monitoring system, monitor and shadowless lamp for surgical operation. This system is mainly intended for clinical demonstration and surgical operation.
The major vidicon is set in the center of the major lamp, keeping the scene and the light from shadowless lamp in the same direction so as to maintain the best visual angle for surgical operation and the clearest picture. This design makes the overall structure compact and simple.
The auxiliary vidicon on the platform takes picture of the entire scene, enlarging the vision for monitoring.The system adopts integrated digital vidicon of high sensitivity imported from Japan and multimedia computer controlled digital monitoring system as well as other sophisticated technologies.
The zoom offers 22 times of zooming, making it convenient to observe the entire scene or to have local enlargement.
KOCA multimedia computer controlled digital monitoring system provides:
1.Monitoring function: real-time display of three picture segregation.
2.Video function: real-time video of all pictures.
3.Back play function: select back play key to replay pictures.
KOCA's special functions:
1.WINDOWS2000 PROFESSIONAL, reliable in performances.
2.Specially designed software, humanized picture operating interface for convenient operation,
completed by clicking relevant keys on the major interface.
3.Surgical operation scene or pictures of operation environment recorded by adopting MPEG.
4.Three-way video input making convenient shift between full screen and major interface.
5.Standard BMP saving mode for taking pictures of surgical operation scene or operation environment.
6.VCD video for backup, surgical operation information in the form of video (leader and reel end produced automatically)forming a complete whole along with the video of surgical operation, making study on surgical operation convenient.
7.Stable database saving mode for storing various data, retaining more information on surgical operation.
8.Fuzzy search for search of data in the database.
9.Format, letter style and color to be determined by the user, printing can be set flexibly.
TECHNICAL SPECIFICATION:
| Camera System: | |
| Definition: | ≥480TVL |
| SNR: | ≥48db |
| Distance for camera (m): | |
| Major camera: | 0.8~2 |
| Panoramic camera: | 1~10 |
| Input power (VA): | 900 |
| Range for the movement of platform: | |
| Horizontal: | 360° |
| Vertical: | 90° |
| Mains voltage: | 220V/50Hz |
| Camera aperture: | F1.6~F3.7 |
| Focus: | F4~88mm |
| Focus magnification: | 22 |
| Video output: | 1.0Vp-p75Ω |
| Camera power supply: | 12VDC±10% |
| Operating Light: | |
| Illumination: | 80,000-160,000LX x2(at 1m distance) |
| Facula diameter: | φ100~φ280mm |
| Depth of light beam: | ≥600mm |
| Brightness adjustment: | 8-stage continuous |
| Shift of major and stand by lamps: | automatic |
| Color temperature: | 4500K±500K |
| Temperature rise: | ≤12°C |
| Temperature rise on the head of patient: | ≤2°C |
| Diameter of lamp holder: | 700mm ×2 |
| Mains voltage: | AC220V±20% 50Hz |
| Bulb voltage: | AC24V Bulb power |
| Input power: | 200VA ×2 |
| Height for installation: | 280-320cm |
PRODUCT ADVANTAGE:
| Standard configuration: |
| one computer |
| one set of software |
| one primary camera |
| one second camera |
| one KL700/700-III O.T light |

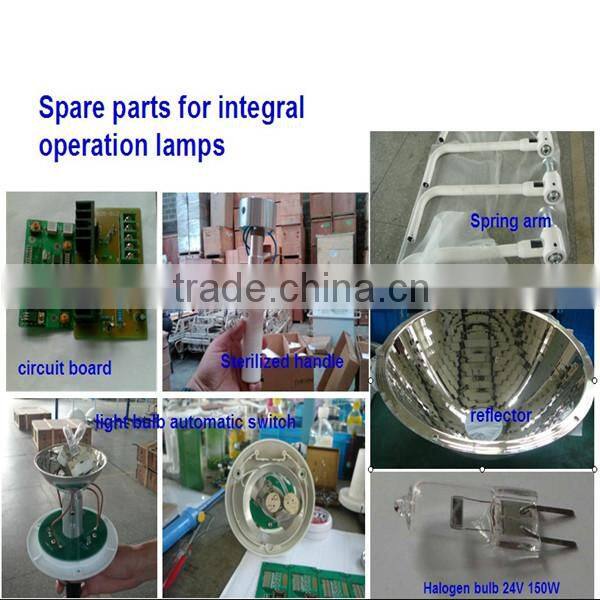

| 1.imported aluminum sheet squamulose reflector |
| 2.imported polish panel |
| 3.titanium main arm |
| 4.optional imported spring arm |

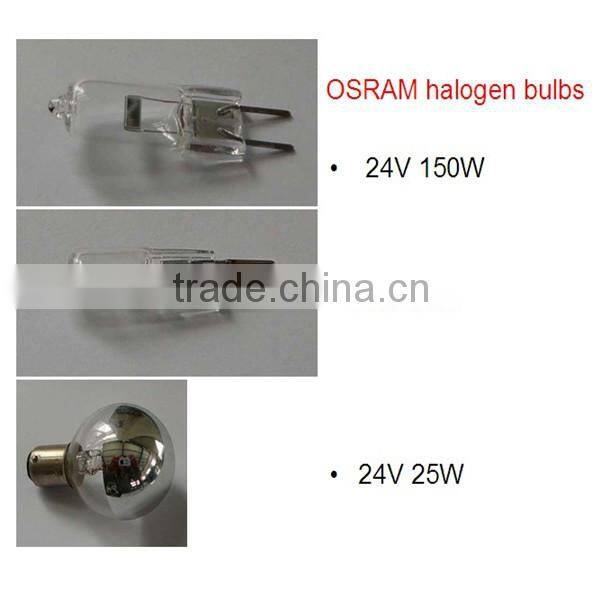

| 5.OSRAM halogen bulbs |
| 6.automatic change to standby bulb in 1/2 second |
| 7.indicator for damaged bulb |
| 8.dischargeable handle |
| 9.battery is optional |
1. imported aluminum sheet squamulose reflector
