Electrical Suction Device

DFX-23D   Electrical Suction Device

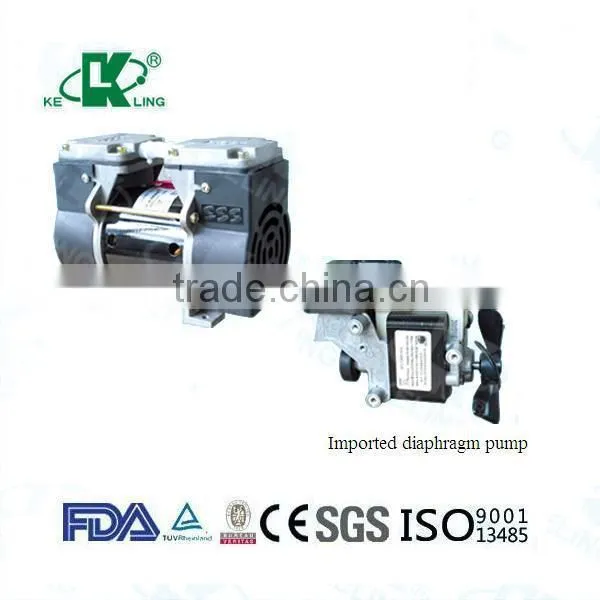

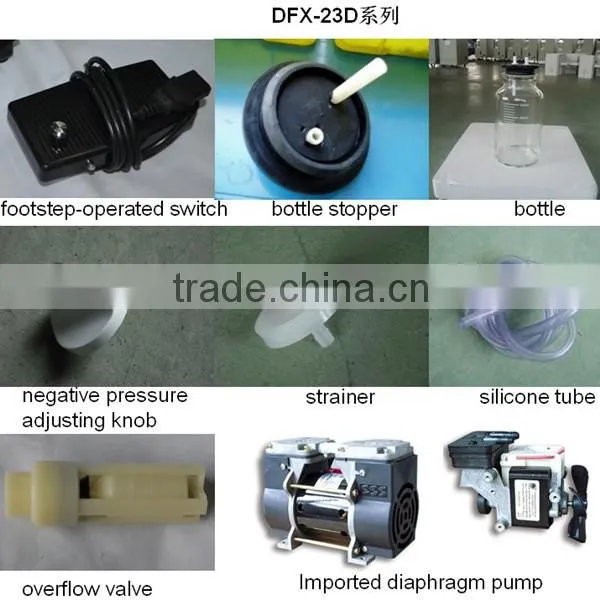

1. DFX-23D.I,DFX-23D·II  electrical suction device is a novel style mobile suction unit, which shell is made of plastic. It is fit for suctioning pus, blood, sputum and other thick liquid in human body. It adopts imported film type vacuum pump, avoiding the pollution of oil mist. The pump requires no daily maintenance and servicing. The overflow protection device in the machine may prevent liquid from flowing into the pump. Hand-operated switch and footstep-operated switch are connected in parallel for option. The complete machine works stably and produces a low level of noise and has a great flux. It can be easily operated and is durable.

2. All-plastic cases are adopted for DFX-23D.I.

Technical Specifications:

Power voltage: AC220V±10% 50Hz
Negative pressure: ≥0.09MPa
Suction rate: ≥25L/min
Negative pressure regulating range: 0.013 ~ 0.09MPa

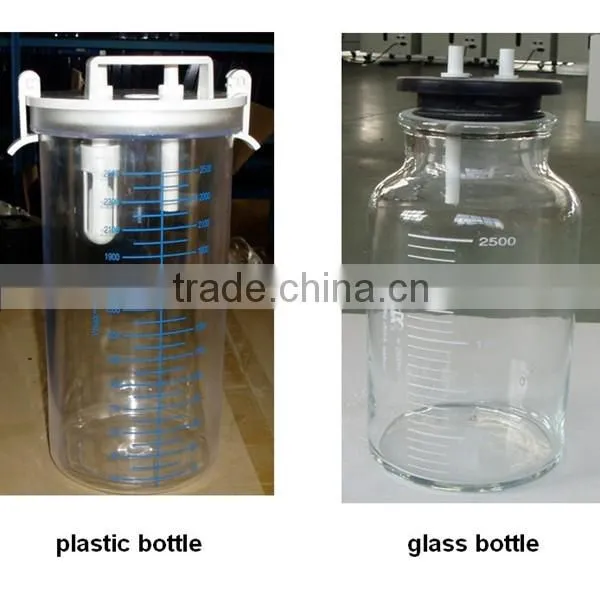

Suction bottle: 2500ml x 2
Noise: ≤55dB
Input power: 400VA
Pump structure: imported film type pump
Working type: intermittent loading,continuous operation
