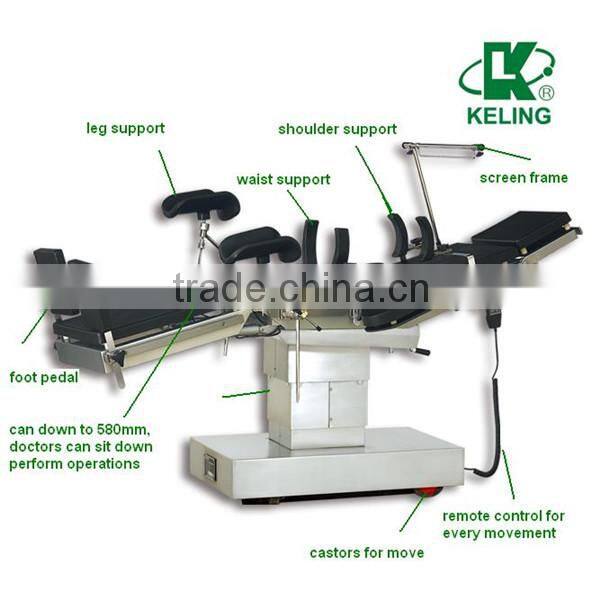

Electric Orthopaedic Navigation Image Operation Bed(carbon Fiber Pane

Specifications

@Professional manufacturer since 1996
@Reliable quality,affordable price,sound service
@CE & ISO approval
@OEM&ODM available

(KL-D.IB) Electric Surgical Hydraulic Operation Table



KL-D·IB electric operating table is suitable for various operations conducted by medical unit.

Features

The super low level design can enable doctor to conduct operation sitting by operating table.

The base adopts high quality 304 stainless steel which can be easily cleaned and sterilized.

The bed surface adopts imported carbon plastic plate, which can fulfill the needs of X-ray examination, photography.

The mattress is once foam molded by polyurethane with homogeneous force.

Various actions are controlled according to electric hydraulic working principle and by remote controller.

Japan Import  motord and Electromagnetic valve.

Imported sealing ring and is durable.

Electric brake control which is easily for moving operating table.





TECHNICAL SPECIFICATION:



length:2000±50mm

width: 480 ±20mm

min-max height:(550-850)±50mm

forward:≥25°   backward:≥15°

leftward:≥15°  rightward:≥15°

leg board fold downward:≥90°

back board fold upward:≥75°   fold downward:≥20°

head board fold upward:≥30°   fold downward:≥90°

waist board lifting:120mm

mains voltage:AC 220V±10% 50Hz

input power:500VA



PRODUCT ADVANTAGE:



1.Imported Japan hydraulic engine

2.Imported electromagnetic valve

3.Imported sealing ring

3.Ultra-low position for long time operation

4.Do X-ray

5.Electrical control for leg board up & down

6.waist can be lifted



1.Imported Japan hydraulic engine



4.Impoted electromagnetic valve



5.Impoted sealing ring

(KL-D.IA) Electrical Hydraulic X-Ray Compatible Operating Bed With Ultra-Low Position



KL-D·IA electric Operating Bed is Operating Bed for various operations conducted by medical unit.

Features:

The super low level design can enable doctor to conduct operation sitting by operating Operating Bed.

The base adopts high quality 304 stainless steel which can be easily cleaned and sterilized.

The bed surface adopts imported carbon plastic plate, which can fulfill the needs of X-ray examination, photography.

The mattress is once foam molded by polyurethane with homogeneous force.

Various actions are controlled according to electric hydraulic working principle and by remote controller.

Japan Import motor and Electromagnetic valve.

Imported sealing ring and is durable.

      Electric brake control which is easily for moving Operating Bed.





TECHNICAL SPECIFICATION:



length:              2000±50mm

width:               480 ±20mm

min-max height:       (550-850)±50mm

forward:≥   25°   backward:≥  15°

leftward:≥  15°   rightward:≥   15°

leg board fold downward:  ≥90°   fold outward:      ≥90°

back board fold upward:    ≥75°   fold downward:   ≥20°

head board fold upward:   ≥30°   fold downward:   ≥90°

waist board lifting:    120mm

mains voltage:   AC 220V±10% 50Hz

input power:      500VA



PRODUCT ADVANTAGE:



1.Imported Japan hydraulic engine

2.Impoted electromagnetic valve

3.Impoted sealing ring

4.Ultra-low position  for long time operation

5.Do X-ray

6.leg board are separated & dischargeable

7.waist can be lifted



1.Imported Japan hydraulic engine





2.Impoted electromagnetic valve



3.Impoted sealing ring
