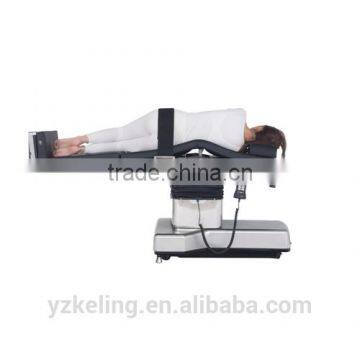

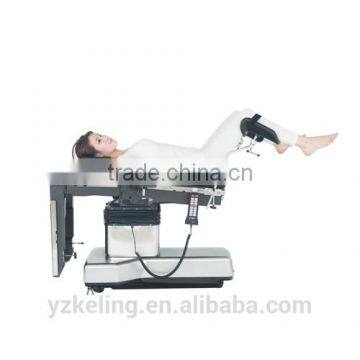

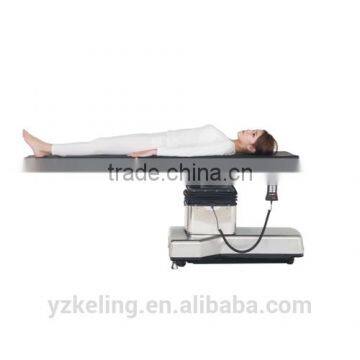

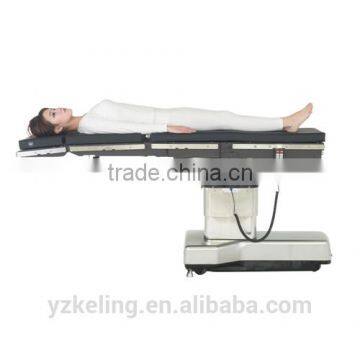

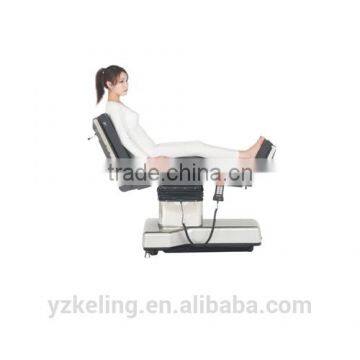

KL-D.III operation theatre table neurosurgery operating table ophthalmology operating table
FEATURES:
Imported hydraulic motor and solenoid valve from HOERBIGER It has the function of auto-restoration. Electro-hydraulic mode of operation is adopted. Two control modes (hand-held remote controller and panel) are available to control various movements. MCU processing is used. Self-locking function is provided to avoid false triggering. Quality stainless steel 304 is used for table support, base plate, column shield and rails on both sides of the table, easy for cleaning and sterilization. Console supports the use of cast aluminum parts, never rust. The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam. Imported carbon steel plate is used for the table top, which is convenient for X-ray photography.
AC and DC can use at the same time.
The table top can sliding Electric braking device, convenient for shifting the operating table.
TECHNICAL SPECIFICATION:
Table Length 2050±50mm
Table Width 500±20mm
Height Adjustment (730-1120)±50mm
Loading capacity 320kg
Tilt(Left) / Tilt(Right) 20°
Trendelenburg / Rev-Trend 30°
Head board fold upward 40°
Head board fold downward 90 °
Backboard Upwards 80°
Backboard Downwards 50°
Waist board lifting 0-100mm
Leg board fold upward 20°
Leg board fold downward 90°
Leg of the board split 180°
Lumbar upper corner “∧” 100°/ “∨”230°
Horizontal and longitudinal movement 300 mm
