200mW 532nm green laser diode
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Model Number | LDGA532200 |
Product Description
Specifications
200mW 532nm green laser diodeModel No.: LDGA532200

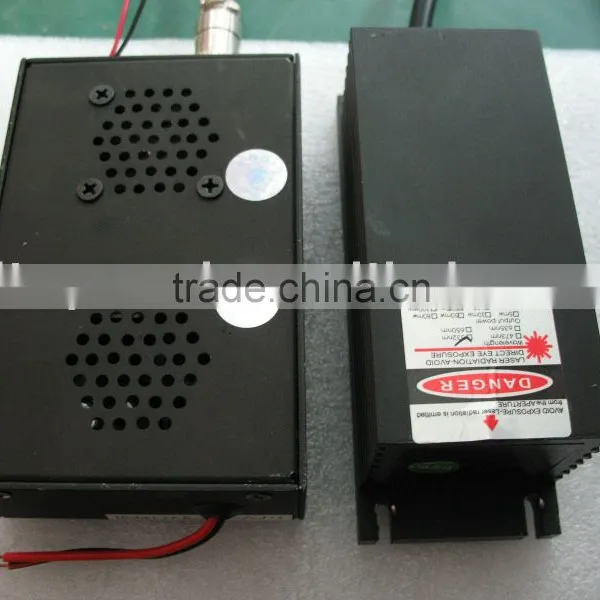

200mW 532nm green laser diode
Wavelength: 532nm
Output Power: >200mw
Beam ModeTEM00
Operation Mode: CW
Modulation: TTL.
Cooling Mode: TEC+Thermal fin
Power Stability: ±3rms,4hour
Warm-up Time: 15min
M2 Factor: <1.2
Beam Divergence, Full angle: <1.5 mrad
Beam Height At Aperature(1/e2 Representative Value): 2.0mm
Beam Height From Base Plate: 26mm
Spectral Linewidth: <0.1nm
Polarization Ratio: >100:1
Pointing Stability After Warm-up: <0.05mrad
Operating Temperature: 10-34 degrees
Expected Lifetime: 10000 hours
Power Supply: 80-260VA
Net weight: 0.75Kg
Dimension for laser head: 130x48x49mm
for power supply: 117x76x36mm
