3 phase inverter meddium & high voltage frequency converter VFD for motor 6kv 710kw

Name: 3 phase inverter meddium & high voltage frequency converter VFD for motor 6kv 710kw
Brand: AUBO
Price: USD $40,000 - 50,000 / Unit

FOB Price

USD $40,000 - $50,000 / Unit

1 Unit(Min.Order)

Supply Ability 100 Unit / Units per Month
Port shanghai

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Jiangsu, China

Brand Name:

AUBO

Model Number:

AMV-IV06-710

Product Description

Company Information

Nanjing Aubo Electric Co. Ltd, simply as Aubo, is specialized in producing variable speed motor drive and soft starter,for both medium and low voltage , as well as simple PLC and motor protector. Aubo deals with both product trading and engineering solution. It also distributes Vacon inverter from Finland, and AuCom soft starter from New Zealand.

Aubo has a factory in Nanjing and sales offices across the country, while the international customers are to be looked after by its Shanghai office.

Product Description

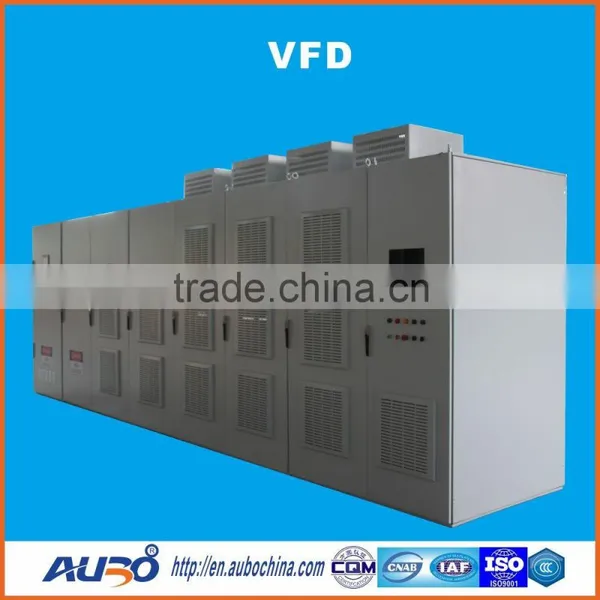

AMVI inverter is a high tech product with our own intellectual property rights and good performance, for the speed control of 3kv / 6kv/10kv medium voltage motor.

The advantage:

Perfect output waveform, harmonics free
High power factor, high efficiency
Motor speed control & soft start enabled
Reduce operation and maintenance cost
Easy operation

Perfect protection and auto-diagnosis for fault

Typical Application

Thermal powerindustry: induced draft fan, blower, dust collection fan, compressor, sewage pump, boiler feed pump etc.

Petrochemical industry: main pumps, submersible pumps, injection pumps, circulating pump, boiler feed pump, halogen water pump, fan, descaling pump, mixer, gas compressors, extrusion machine, etc Mining and metallurgy: slurry pump, induced draft fan, blower,, dust removal fan, descaling pump, centrifugal feed pump, etc Cement manufacturing: water pump, boiler feed pump, halogen water pump, fan, descaling pump, mixer, gas compressors, induced draft fan, preheat tower fan,

pressure blower fan, cooler dust cleaning fan, ball mill for raw material, kiln gas fan, cooler exhausting fan, classifier fan, the main dust collection fan, etc Water supply and wastewater treatment: main line pumps, submersible pumps, injection pumps, circulation pump, sewage pump, cleaning pump, biological processing tower pump Other industry: pulp beater, pumps, rotating machinery, wind turbines, wind tunnel, etc

Model	Rated Current(A)	Rated Power(KW)	Model	Rated Current(A)	Rated Power(KW)
AMV-IV06-200	26	200	AMV-IV10-0220	17	200
AMV-IV06-250	30	250	AMV-IV10-0250	19	250
AMV-IV06-280	33	280	AMV-IV10-0280	21	280
AMV-IV06-315	37	315	AMV-IV10-0315	24	315
AMV-IV06-355	42	355	AMV-IV10-0355	27	355
AMV-IV06-400	48	400	AMV-IV10-0400	30	400
AMV-IV06-450	54	450	AMV-IV10-0450	33	450
AMV-IV06-500	60	500	AMV-IV10-0500	37	500
AMV-IV06-560	67	560	AMV-IV10-0560	41	560
AMV-IV06-630	75	630	AMV-IV10-0630	46	630
AMV-IV06-710	84	710	AMV-IV10-0710	51	710
AMV-IV06-800	95	800	AMV-IV10-0800	57	800
AMV-IV06-900	106	900	AMV-IV10-0900	64	900
AMV-IV06-1000	118	1000	AMV-IV10-1000	71	1000
AMV-IV06-1120	132	1120	AMV-IV10-1120	79	1120
AMV-IV06-1250	146	1250	AMV-IV10-1250	88	1250
AMV-IV06-1400	164	1400	AMV-IV10-1400	98	1400
AMV-IV06-1600	185	1600	AMV-IV10-1600	112	1600
AMV-IV06-1800	220	1800	AMV-IV10-1800	127	1800
AMV-IV06-2000	229	2000	AMV-IV10-2000	141	2000
AMV-IV06-2240	251	2240	AMV-IV10-2250	157	2250
AMV-IV06-2500	281	2500	AMV-IV10-2500	175	2500
AMV-IV06-2800	324	2800	AMV-IV10-2800	295	2800
AMV-IV06-3150	363	3150	AMV-IV10-3150	230	3150
AMV-IV06-3550	428	3550	AMV-IV10-3550	259	3550
AMV-IV06-4000	482	4000	AMV-IV10-4000	290	4000
AMV-IV06-4500	542	4500	AMV-IV10-4500	326	4500
AMV-IV06-5000	602	5000	AMV-IV10-5000	362	5000
AMV-IV06-6000	723	6000	AMV-IV10-5600	405	5600
AMV-IV06-7000	844	7000	AMV-IV10-6300	455	6300
AMV-IV06-8000	964	8000	AMV-IV10-7100	512	7100
