Home > Industrial Equipment & Components > Heater & Heat Exchanger > Heat Exchanger > Refrigerated Truck Parts Chiller Ice Freezer Nevera Compressor R404a 50hz QXD-16K ce Rohs Replace Tecumseh Compressor

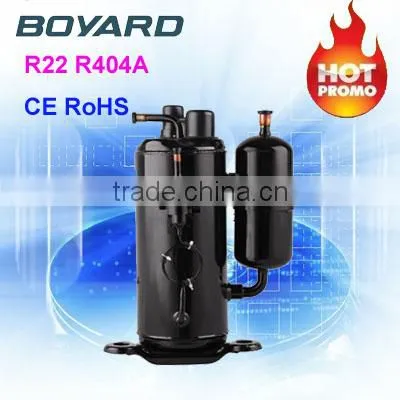

Refrigerated Truck Parts Chiller Ice Freezer Nevera Compressor R404a 50hz QXD-16K ce Rohs Replace Tecumseh Compressor

Refrigerated Truck Parts Chiller Ice Freezer Nevera Compressor R404a 50hz QXD-16K ce Rohs Replace Tecumseh Compressor thumbnail-1
Refrigerated Truck Parts Chiller Ice Freezer Nevera Compressor R404a 50hz QXD-16K ce Rohs Replace Tecumseh Compressor photo-1
US$ 119 - 261 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Boyard
Model Number:
QXD-16K
Contact Supplier Request Quote Chat Now
Zhejiang Boyang Compressor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Boyard
Model Number QXD-16K
Type Refrigeration Compressor
Application Refrigeration Parts
Certification CE

Specifications

compressor r404a 50hz QXD-16K
Horizontal design
High COP
Low noise vibration
Used in low temperature also medium

Refrigerated Truck parts chiller ice freezer nevera compressor r404a 50hz QXD-16K ce rohs replace Tecumseh Compressor

CE RoHS approved walker in cooler freezer parts 3 hp freezer compressor r404a replace Embraco compressor





Product Description

Hermetic refrigeration compressor, this series of product, light weight, low noise, high efficiency, low discharge temperature, long operation life and are able to work under wide voltage.

Refrigerant: R404A

Power supply: 220V~240V/50HZ

Capacity: 0.75 HP to 3 HP

Application:

1. Commercial freezing refrigeration equipment

2. Supermarket freezer, showcase, cabinet

3. Cook room equipment

4. Storage cold room, cool room

5. Vehicle Refrigeration system

Parameters:

Refrigerant

Model

Different Evap. Temp. corresponding refrigeranting capacity W




-40

-30

-23.3

-20

-15

-10

-5



R22

KXL096ES 4DN

224

397

512

598

737

863

1060



QXL-13E 4DN

260

465

745

800

1050

1365

1748



QXL-16E 4DN

385

560

920

1020

1300

1670

2150



QXL-19E 4DN

450

650

1010

1200

1530

1960

2490



QXL-23E 4DN

560

810

1230

1380

1820

2430

3142



QXL-30E 4DN

730

1050

1690

2020

2430

3180

4000



QXL-36E 4DN

850

1250

1886

2304

2860

3650

4576



QXL-41E 5DS

980

1440

2300

2650

3300

4200

5279



R404

KXD096KS 4DN

314

470

616

723

907

1100

1328



QXD-13K 4DN

430

650

845

995

1230

1506

1816



QXD-16K 4DN

539

780

1046

1235

1515

1840

2210



QXD-19K 4DN

630

920

1230

1450

1780

2165

2605



QXD-23K 4DN

785

1130

1516

1790

2185

2645

3170



QXD-30K 4DN

1023

1480

1951

2320

2832

3500

4341



QXD-36K 4DN

1200

1750

2303

2720

3315

4020

4840



QXD-41K 5DS

1380

2020

2650

3140

3825

4640

5600



Packaging & Shipping

Packaging and shipping

Sample order:

Each compressor was packaged in one carton box and non-fumigated wooden box.

Delivery time: Generally we have samples on stock. We can deliver as soon as receiving the payment.

Large order:

The compressors will be packaged in non-fumigated pallets. One pallet can load 30 PCS. One 20 feet container can load 24 to 28 pallets.

Delivery time: within 20 days after receiving the deposit.

Refrigerated Truck parts chiller ice freezer nevera compressor r404a 50hz QXD-16K ce rohs replace Tecumseh Compressor





Company Information

Company founded: in 2006

Company size: 33,000 square meters

Building area: 20,000 square meters

Staff: 250~300 numbers

Certification: CCC, CE, RoHS, REACH

Production Capacity: 500,000 units per year

Market share: International market 48.26%, domestic market 51.74%

Refrigerated Truck parts chiller ice freezer nevera compressor r404a 50hz QXD-16K ce rohs replace Tecumseh Compressor





Our Services

Samples: there's a charge for the sample and shipping cost, but if you have quantity in the future, the sample fee will be deducted from next payment.

Warranty: we have one year warranty for manufacturer.

Technical support: We have professional technical department and R&D centre, if you have any questions, feel free to ask.

Refrigerated Truck parts chiller ice freezer nevera compressor r404a 50hz QXD-16K ce rohs replace Tecumseh Compressor
