OSG Taiwan Hss Spiral Pointed Screw Taps

Name: OSG Taiwan Hss Spiral Pointed Screw Taps
Brand: TOSG
SKU: 134222671
Availability: InStock

US$ 6 - 473 MOQ: 1 set

Key Specifications

Place of Origin:

Taiwan, China

Brand Name:

TOSG

Taiho Tool Mfg. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Brand Name TOSG

Specifications

1. Produce chips in continuous coil form. Discharge chips
through the hole.
2.For carbon steels and nonferrous metals.

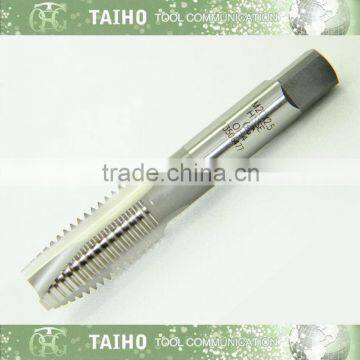

OSG Taiwan Hss Spiral Pointed screw taps

1. Produce chips in continuous coil form. Discharge chips
through the hole.
2. For carbon steels and nonferrous metals.

(1)Product introduction

1.Feature	(1)Ordinary inclination taps. (2)The secondary flute on the tap front part gives easier chip evacuation. (3)The strangth is 30% higher and tolerance is more stable. Due to the fluteless design and larger center diameter, the durability and torsional strength are higher, which lead better tool life.
2.Application	(1)Suitable for materials with coil-shaped chips. (2)Suitable for through hole, high-speed tapping. (3)Easy chip evacuation with stable tolerance and small torque. (4)Suitable for carbon steel, alloy steel, and non-ferrous metals.
3.Production range	Metric M1 ~ M48 U series NO.0~1-1/2" W series W1/8~1-1/2"
4.Dimensions	JIS specifications
5.Thread limit	JIS II class, ISO 2nd class, DIN 6H class, and other classes.
6.Material	HSS-Vanadium
7.Certification	ISO 9001 (Certified in Y1997)
8.Surface treatment	Oxide, Nitride, Titanium nitride, and Titanium corbonitride (Alloy tool steel are without serface treatment).
9.Lubrication	Water-soluble, non-water soluble, and emulsified.
10.Machine	CNC, automatic lathe, vertical(horizontal) machines, drilling, manual feed, and so on…
11.Applicable industries

(2) Cutting speed and lubrication

Place of origin	Brand	Model	Work material	Cutting speed (m/min)	Suitable lubrication
Taiwan	TOSG	EX-POT	Medium carbon steels High carbon steels	9~14	Water-soluble, non-water soluble, vegetable oil.
			Alloy steels	10~15
			Cast steels	10~15
			Ductile cast iron	10~15	Emulsified Water-soluble, non-water soluble.
			Brass	7~12	Water-soluble, Spray-oil, Air cooling, Dry-cutting.
			Brass/ Bronze casting	7~12
			Aluminum	15~20
			Aluminum alloy casting	12~18
			Magnesium alloy casing	10~15
			Zinc alloy casing	15~20

(3)Cutting depth

Model	Chamfer length (Number or threads)	TAP diameter
		Through hole		Blind hole
		<1.5D	>1.5D	<1.5D	>1.5D
EX-POT	4	V	V

(4)Work material

V: Excellent O:Good
