OSG Taiwan for Mild Steels and Deep Holes Spiral Fluted Tap

OSG Taiwan for Mild Steels and Deep Holes Spiral Fluted Tap thumbnail-1
OSG Taiwan for Mild Steels and Deep Holes Spiral Fluted Tap photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
TOSG
Contact Supplier Request Quote Chat Now
Taiho Tool Mfg. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name TOSG

Specifications

Spiral fluted tap
1.Suitable for mild steels and deep holes.
2.Reduce damage caused by chip packing and galling.

OSG Taiwan Spiral fluted tap for mild steels



(1)Product introduction

1.Feature

(1)Suitable for deep blind hole tapping of mild steels .
(2)With sprial angle of 350~510,emplys steam oxide coated to prevent welding .
2.Application  (1)Suitable for deep blind hole tapping of mild steels .

(2)Suitable for tapping deep blind hole.
(3)Effectively to prevent chip packing and unsmooth internal thread .
3.Production range

Metric(M)=M1 ~ M48

Unified (U)=NO.0~1-1/2"

Withworth(W)=W1/8~1-1/2"
4.Dimensions  JIS specifications
5.Thread limit OH class
6.Material Vanadium high speed steel
7.Certification ISO 9001 (Certified in Y1997)
8.Surface treatment Oxide treatment
9.Lubrication Non-water soluble ,vegetable oil ,cutting oil
10.Machine CNC,automatic lathe,verticla (horizontal)machine,drilling machine,manual feed ,and so on …

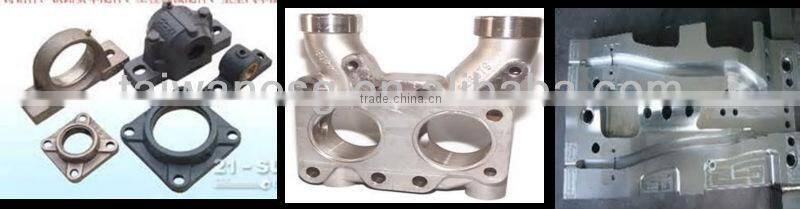

11.Applicable industries



OSG Taiwan for mild steels and deep holes Spiral fluted tap

Molds,aero components,auto(motor) parts and so on . …



(2) Cutting speed and lubrication selection



Place of origin Brand Model Work material

Cutting speed
(m/min)

 Suitable lubrication
Taiwan TOSG MS-DH-SFT

Low carbon steels

    8~13 Non-water soluble,vegetable oil ,tapping paste

Medium carbon steels

    7~12
Alloy steel     7~12

 Casting iron

    6~11



(3)Cutting depth


Model

Chamfer length
(Number or threads)

 TAP diameter
Through hole Blind hole
<1.5D >1.5D <1.5D >1.5D
MS-DH-SFT 2.5      V V



(4)Work material

V: Excellent  O:Good

Low carbon steels C~0.25% V Copper Cu
Medium carbon steels C0.25%~0.45% O  Brass Bs
High carbon steels C0.45%~    Brass casting BsC
Alloy steels SCM O Bronze PB
Hardened steels 25~45HRC    Aluminum AL
45~55HRC   Aluminum alloy casting AC,ADC
50~60HRC   Magnesium alloy casting MC
Stainless steels SUS   Zinc alloy casting ZDC
Tool steels SKD     Titanium Alloys Ti
Cast steels SC V Nickel alloys
Cast iron FC   Thermosetting plastic
Ductile cast iron FCD    Thermo-plastic
