Support OEM/ODM tft lcd display module 320x240 AT035Q06

    Support OEM/ODM tft lcd display module 320x240 AT035Q06

AT035Q08 is a TFT-LCD Module.It is composed of a TFT-LCD panel,driver IC,FPC,TP a backlight unit.The 5.0" display area contains 320*240 pixels and can display up to 16.7M colors.This product accords with Rohs environmental criterion.

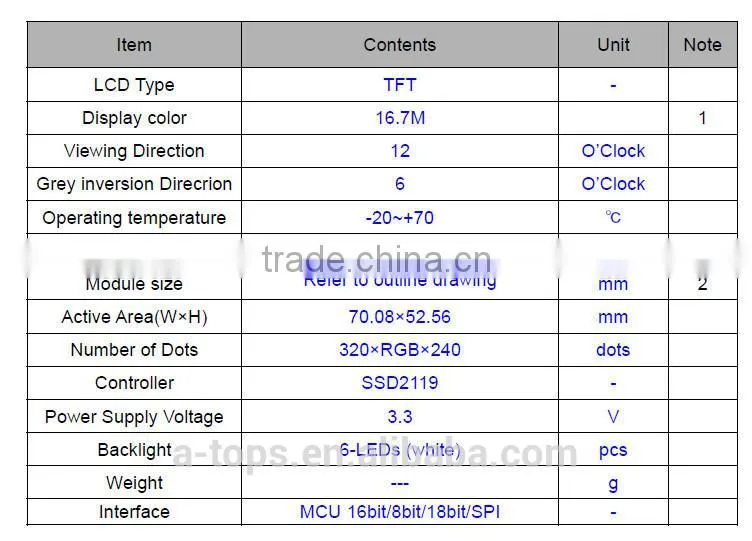

General Descriptioin:

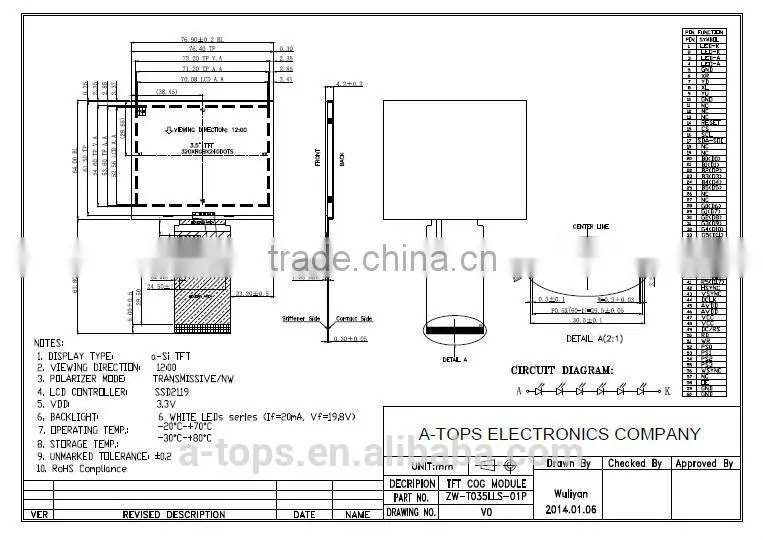

Outline Drawing:

TFT PACKAGE:

1.Put module into tray cavity.

2.Tray stacking.

3.Put 1 cardboard on the top and bottom of tray stack.

4.Fix the cardboard to the tray stack with adhesive tape.

5.Put the tray stack into carton with filler.

6.Carton sealing with adhesive tape.

With the strength of skilled engineers and own factory, we supply ODM service to meet your customized needs.

Main Product:

TFT module (1.77-10.4inch), special size TFT, MVA TFT, sunlight readable TFT, anti-reflective glass, optical bonding, CTP, LCD panel, LCD module etc.

Application:

automotive, security products, industrial instrumentation, medical equipment, terminal equipment, smart home.

Certification:ISO9001  ISO14001   RoHS

   A-Tops Electronics Co.,Ltd was found in 1998 and consists of LCD Panel factory, TFT factory and CTP factory. We specialize in design, manufacturing, and supply of high quality LCD products. With 16 years experience and development, A-TOPS has grown to be a leader in display which offers customers with perfect solution, high quality and after-sales service.

Other Products Range:

1.Standard COB & COG Character/Graphic LCD Module,

2.Customized TN/HTN, STN, FSTN LCD as Customer's drawing

3.TFT lcd module from 1.77"~10.1", Counter, Timer, VA products and so on.

For more details pls visit our website /
