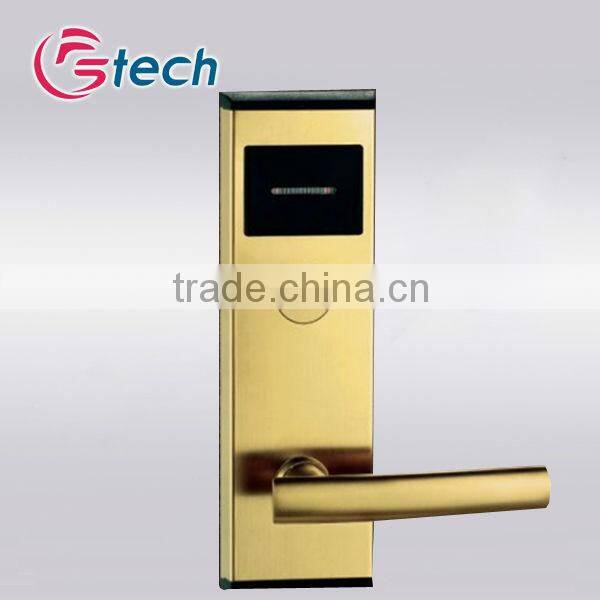

Stainless Steel Hotel Card Lock With imported Motor , DC6V
Hotel card lock description:
Our Smart Card Door Lock, uses smart cards as its keys and is controlled by a microcomputer inside it.
It is reliable, easy to use and manage, which makes it’s a perfect choice for hotels, government departments,
office buildings etc.
1.No external circuit and network is needed, making the installation and use of the system an easy job;
2.A ‘black box’ inside the lock is able to save 200–1000 unlocking records;
3.The standard five-tongue lock core makes the lock safe and reliable;
4.Unique ultra-low power design, only 4 batteries provide enough power for a lock to work normally for
more than one year;
5.Adopt the latest low-power microwave inspection technique, which can even read a card inside a black purse;
6.Short-circuit-proof technique to prolong the service life of battery;
7.Using a combination of sound and light to guide operation. Moreover, there is a computer expert diagnostic
system in the management software, which can provide detailed solution schemes for any operational problems.
Hotel card lock advantages & features:
1.Excellent design,Classic model .
2.Our PCB is imported material from Taiwan.
3.The motor has high quality, low power dissipation.
4.Imported Taiwan motor has more than 500,000 life times.
2.Pure 304 stainless steel material. Fadeless, Eternal quality.
5.Standard American mortise. Low voltage alarming function.
6.Patent detached two-gear clutch device to guarantee the durability of mortise.
7.Turn handle up to deadbolt lock at inside and outside. Convenience and simplification.
Hotel card lock technical parameters :
Type |
HTST1301-MF |
Voltage rang |
4.5-6.5 V |
Static Power consumption |
< 30 uA |
Dynamic power consumption |
< 200 mA |
Single operation |
0.8 seconds |
Card read time |
< 0.4 S |
Card Types |
M1 Card |
Card Life |
10 years |
Install door thick |
38-55 mm |
Facial color |
Golden |
Drawing card read distance |
25MM |

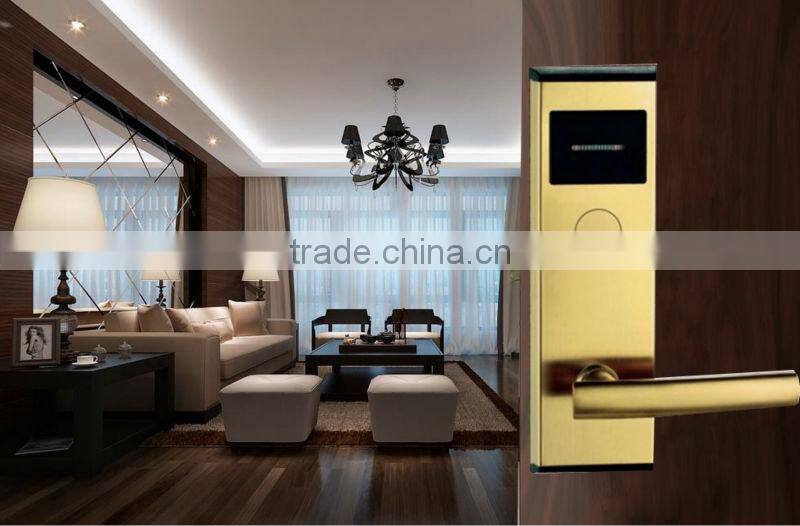

Hotel card lock application:
Hotel card lock lock body dimensions:

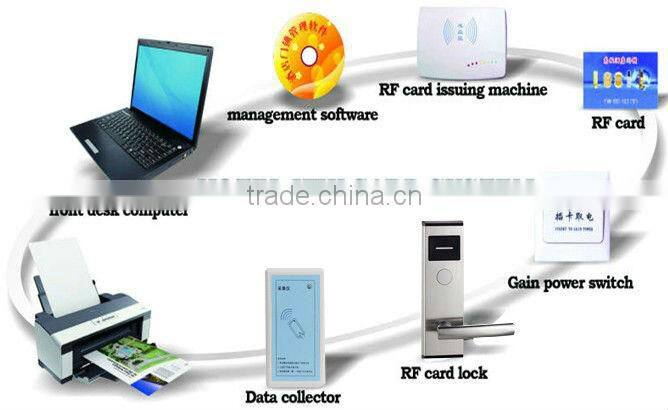

Hotel card lock System Composition:
Normally this system is composed of the bellowing parts:
1. Lock (qty = guest room)---For open the door
2. Card Encoder (1pcs/hotel) ---For issuing all kinds of cards
3. Energy Saving Switch (qty = guest room)---To get the power
4. Cards -----For open the lock
5. Data collector (1pcs/hotel, optional by customers)---For getting the time and times of the
entrance information from the lock
6. Self developed software (1 disk, free of charge)---For setting the program the whole system.

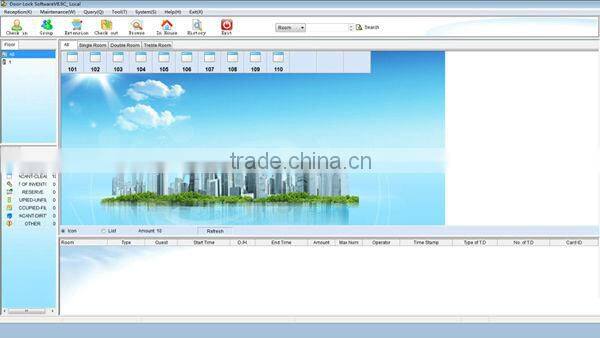

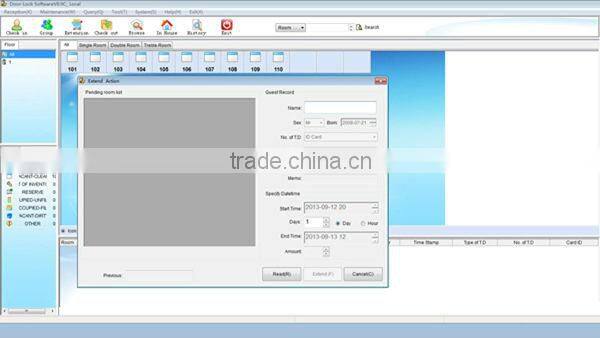

Hotel card lock software:

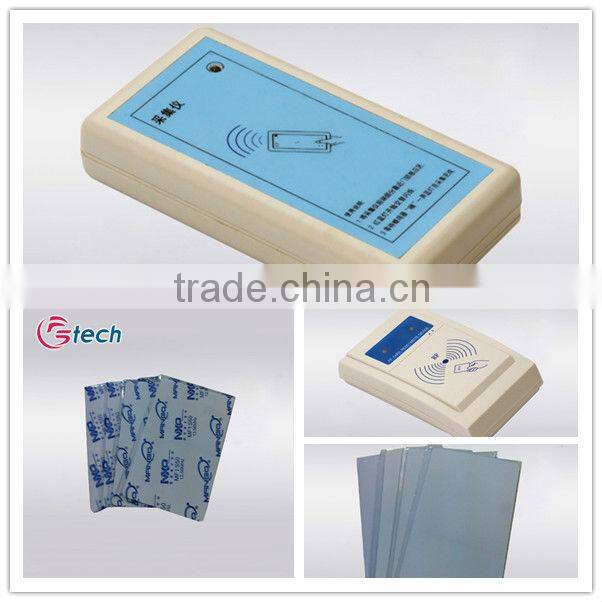

Hotel lock accessories:
Hotel card lock installtion drawing:
Hotel card lock more detail:
Competitive Advantage:
1.Advanced lock software management |
Easy to integrate to hotel management software with interface. |
2.Solid material .Stainless steel lock panel and handle |
Never rusting. Suitable for humidity and cold environment .Can work well under below 50 degree Celsius. |
3.Fast delivery |
Within one week after order confirmation |
4.Customize |
Produce special requirement products within fast time and low cost. |
5.Professional service support |
24-hour on-line professional after sales service support |
Our One card through management system adopts advanced m1one card technology and
integrates hotel management system, door access controller system, parking system, dinning
management system, work attendance management system as a intelligent unit. Customer can
enjoy all the service as using a piece of smart card .By this way, it not only avoid trouble of card
confusion but also achieve the automatic of consumption, which greatly improve the efficiency of
system management.
Due to the large capacity, high security and long lifetime, smart card lock is widely used for one
card through management of hotel, model building, public facility, intelligent community and school.
Hotel card lock door open directions:

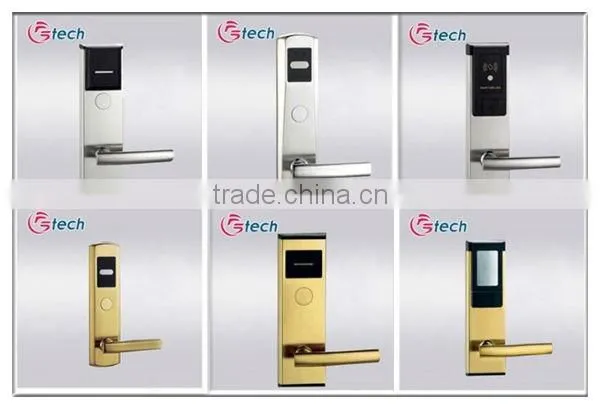

Our hotel lock series:
Payment:
If the total amount is less than 500USD, we prefer to accept Paypal or Western Union.
For big amount we accept bank transfer.
Shipment:
Normally we will use UPS, DHL, FEDEX or EMS express. It usually takes 3-7 working days
depending on the countries deliver to.We can also arrange other shipment way per your requirement
and instruction, such as sea shipment, air shipment, etc.
Warranty:
Warranty for one year, maintenance forever, change within 3 months because of product quality.
