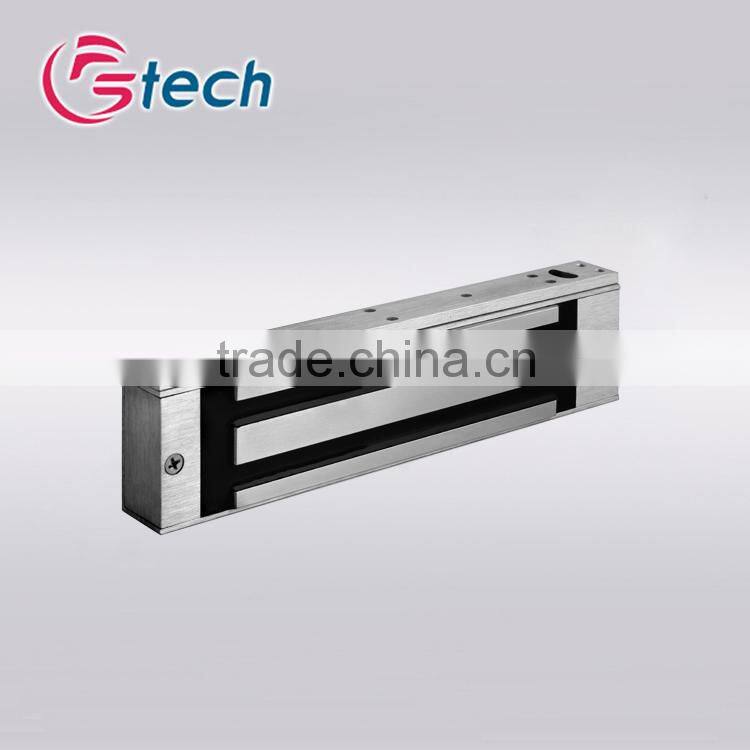

800lbs single door fail safe electromagnetic lock sliding door indoor electromagnetic lock

Specifications

1.Magnetic
2.indicator and signal out-put
3.Pure Iron lock cylinder and copper coil
4.No residual magnetism
5.Chrome finish

The working principle of electro magnetic lock is that when power on the lock will generate electromagnetictism to

absorb the mount plate to lock the door. It is fail safe maglock. Power on to lock  and power off to unlock.

Electromagnetic lock can be installed by two ways,hanging installation and flushing installation. electric magnetic

locks are wildly used in offices, buildings exit doors, banks, financial institutions and other places.

Product name	CE FCC RoHS fail safe magnet door lock
Lock Dimension	250×48×28(mm)
Armature Plate Dimension	182L×46W×13H(mm)
Input Voltage	DC12V±10% or DC24V±10%
Holding Force	350KG(800LBS)
Current	12V/350mA    24V/180mA
Suitable Humidity	0-90%(non-condensing)
Lock Finish	Chrome plating
Cover Finish	Drawing oxidation
Safety Type	Fail Safe
Suitable	Wooden door, Glass door, Metal door, Sliding door.
Warranty	One year
