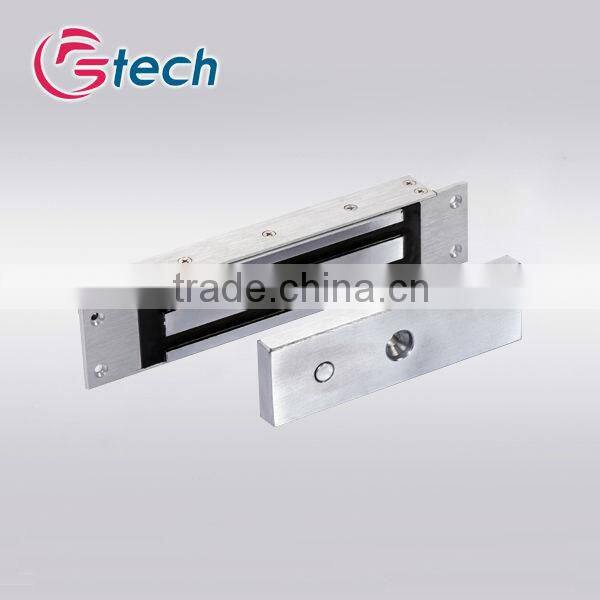

600lbs electromagnetic locks for gates embedded mounting door lock

Specifications

1.Electromagnetic lock
2.Pure iron lock cylinder
3.100% Pure copper coil
4.No residual magnetism
5.Chrome surface treatment

The working principle of electro magnetic lock is that when power on the lock will generate electromagnetictism to

absorb the mount plate to lock the door. It is fail safe maglock. Power on to lock  and power off to unlock.

Electromagnetic lock can be installed by two ways,hanging installation and flushing installation.electric magnetic

locks are wildly used in offices, buildings exit doors, banks, financial institutions and other places.

Product	Single door electromagnetic lock
Lock Dimension	234×48×30(mm)
Armature Plate Dimension	180L×38W×11H(mm)
Input Voltage	DC12V or DC24V
Holding Force	280KG(600LBS)
Current	12V/450mA      24V/230mA
Operating temp	-10~+55°c(14-131F)
Suitable Humidity	0-90%(non-condensing)
Lock Finish	Chrome plating
Cover Finish	Drawing oxidation
Safety Type	Fail Safe
Suitable	Wooden door, Glass door, Metal door, Sliding door.
