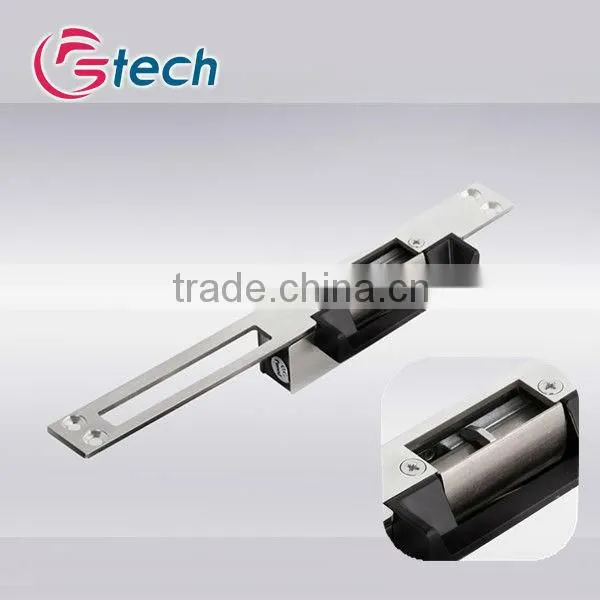

FStech Electric Strike Description
The electric strike lock series are designed for high security access control system applications and made of solid stainless steel and copper. The electric strike can be applied to access control system, strike locks are mainly built-in mounted to side of doorframe of wooden, metal, and PVC. Some model can used to frameless glass door. Electric strikes work with ball lock, rim lock, mechanical rim lok, bolt lock, hotel lock home lock and so on. To achieve smart access control.
Electric strike door lock has four types: 1. fail safe electric strike, power on to lock; 2. fail secure electric strike, power on to unlock; 3. impulse unlock; 4. strike door lock for frameless glass door, suitable to 90° opening way.
The door lock electric strike can make your modern life more securer and convenient. Your smart choice will bring you totally smart access control experience.
We can offer your the whole access solution and devices.
FStech Electric Strike Technicals
| Electric Strike Lock | Technical Parameters |
| Holding Force | 400KG |
| Input Voltage | DC12V±15% |
| SK2BLS-NO Current | 190mA |
| SK2BLS-NC Current | 240mA |
| Dimension | 204x28x48mm |
| Application | Wooden door,Metal door,PVC Door |
| Material | Stainless steel faceplate, copper bolt |
| Feature | Fail safe(NO) or Fail secure(NC) |
| Working temperature | -10°C~+55°C(14~131F) |
| Working Humidity | 0~90%(No condensing) |
FStech Electric Strike Features & Advantage
| Electric Strike Lock Series |
With door signal out-put, can work with networking access control system and connect to indicator light to show the lock status. |
| Work with ball lock, rim lock, mechanical rim lok, bolt lock and so on. To achieve smart access control |
| Built-out MOV, in case of current surge to affect access control system service life |
| Built-in mounting, classic appearance |
| Coil supports continuous power supply |
| Low current, low temperature rise rate |
| Fail safe/fail secure changeable on site |
| Copper bolt wiith nickel plating, strong and anti-collision |
| 1 million cycles endurance rating |
| Continuously rated solenoid |
| Optional mounting kit |
FStech Electric Strike Applications
Applicable to office buildings, resident houses, schools, hotels etc.
Suitable to wooden door, metal door and PVC door.
Suitable for use with all access control systems.
Payment:
If the total amount is less than 500USD, we prefer to accept Paypal or Western Union; For big amount we accept bank transfer.
Shipment:
Normally we will use UPS, DHL, FEDEX, TNT or EMS express. It usually takes 3-7 working days depending on the countries deliver to. We can also arrange other shipment way per your requirement and instruction, such as sea shipment, air shipment, etc.
Warranty:
Warranty for one year, maintenance forever, change within 3 months because of product quality.
