Specifications
SK3 electric strike series1.Fail secure/safe signal output
2.Impulse to unlock
3.plastic spraying faceplate
4.Zn-alloy bolt
Electric Strike Description

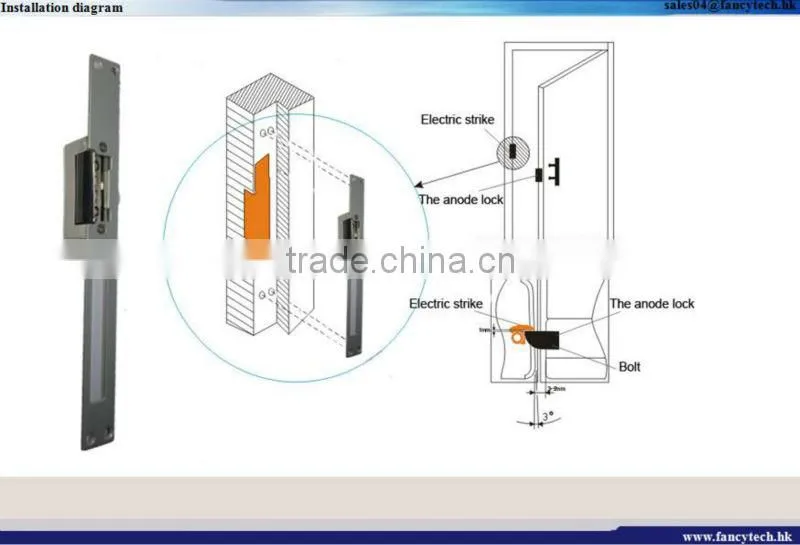

The electric strike lock series are designed for high security access control system applications and made of solid stainless steel and copper. The electric strike can be applied to access control system, strike locks are mainly built-in mounted to side of doorframe of wooden, metal, and PVC. Some model can used to frameless glass door. Electric strikes work with ball lock, rim lock, mechanical rim lok, bolt lock, hotel lock home lock and so on. To achieve smart access control.
Electric strike door lock has four types: 1. fail safe electric strike, power on to lock; 2. fail secure electric strike, power on to unlock; 3. impulse unlock; 4. strike door lock for frameless glass door, suitable to 90° opening way.
The door lock electric strike can make your modern life more securer and convenient. Your smart choice will bring you totally smart access control experience.
We can offer your the whole access solution and devices.
Electric Strike Technicals
| Electric Strike Lock | Technical Parameters |
| Holding Force | 400KG |
| Input Voltage | DC12V±15% |
| SK3-NO Current | 800mA |
| SK3-NC Current | 800mA |
| Lock bolt dimension | 45x13x6.5mm |
| Application | Wooden door,Metal door,PVC Door |
| Material | Iron faceplate, Zn-alloy bolt |
| Feature | Fail safe(NO) or Fail secure(NC) |
| Working temperature | -40°C~+50°C(14~131F) |
| Working Humidity | 0~90%(No condensing) |
Electric Strike Features & Advantage
| Electric Strike Lock Series |

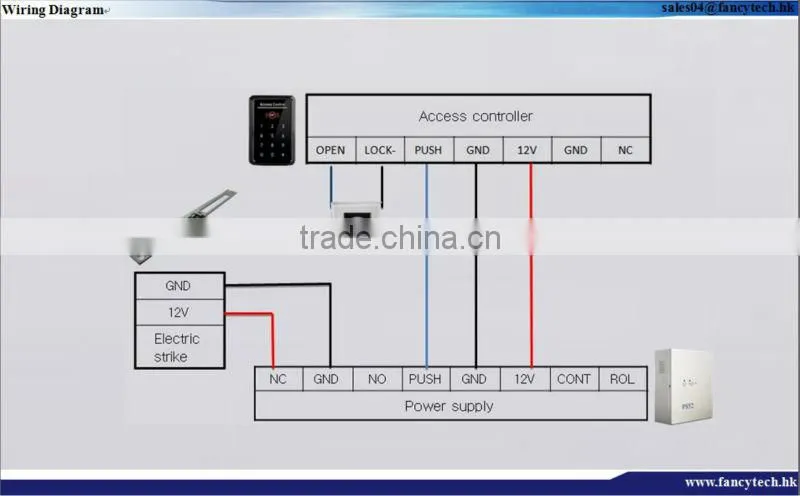

With door signal out-put, impulse to unlock, can work with networking access control system and connect to indicator light to show the lock status. |
| Work with ball lock, rim lock, mechanical rim lok, bolt lock and so on. To achieve smart access control |
| Built-out MOV, in case of current surge to affect access control system service life |
| Built-in mounting, classic appearance |
| Coil supports continuous power supply |
| Low current, low temperature rise rate |
| Fail safe/fail secure changeable on site |
| Zn-alloy bolt with nickel plating, strong and anti-collision |
| 1 million cycles endurance rating |
| Continuously rated solenoid |
| Optional mounting kit |
Electric Strike Applications
Applicable to office buildings, resident houses, schools, hotels etc.
Suitable to wooden door, metal door and PVC door.
Suitable for use with all access control systems.
