Drop bolt lock description:
1.Specially design for voltage wave
2.Power on to lock, power off to unlock
3.Keep working without lock body burning
4.More secure and reliable
5.High quality item guaranteeing the safety of your house.
6.Lock with electricity, magnetic induction, low consumption, noiseless.
7.Ease installation with most doors specially for wooden door, glass door, iron door
Drop bolt lock advantages:
1.Electric dead bolt lock with low temperature, safe & durable
2.With low power, environmental protection
3.With special designed solenoid for strength and long life
4.MOV provides reverse current protection
5.With superior strength aluminum alloy, solid stainless steel bolt
6.Suitable for all kind of the door
Drop bolt lock technical parameters:
| Fail safe | Locked When Energized |
| Lock body size | 200L×34W×41H(mm) |
| Installation size | 157×31×40mm Lock core |
| Size | Projection lenth15.5mm x diameter15mm |
| Voltage | 12VDC±15% |
| Start current | 800mA |
| Standby current | 90mA |
| Time delay to Lock | 0/3/6/9S |
| Signal output | Door status signal output(NO,COM) |
| Suitable for | Wooden Door,Glass door,Metal door |
| Lock core strength | The stainless teel brushing is polished,bear 800kg by force |
| Operating temp | -20~+55°C(14~131F) |
| Operating humidity | 0~90%(non-condensing) |

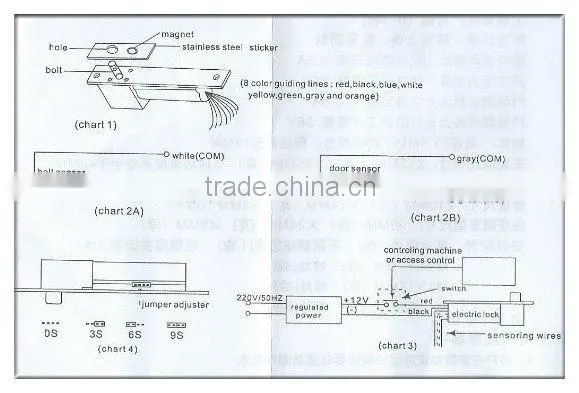

Drop bolt lock wiring diagram :

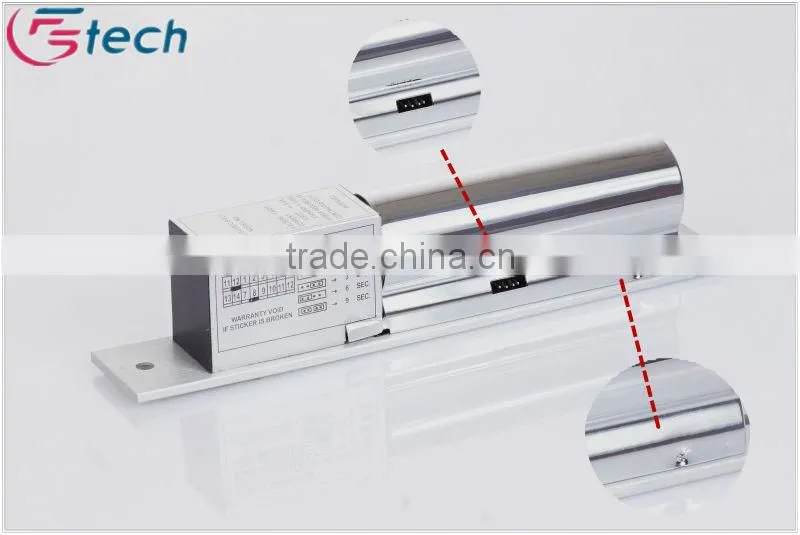

Drop bolt lock detail:
Dead bolt lock packaging procedure:
Electric Bolt Lock Series:
Customer and us:
Payment:
If the total amount is less than 500USD, we prefer to accept Paypal or Western Union. For big amount we accept bank transfer.
Shipment:
Normally we will use UPS, DHL, FEDEX or EMS express. It usually takes 3-7 working days depending on the countries deliver to. We can also arrange other shipment way per your requirement and instruction, such as sea shipment, air shipment, etc.
Warranty:
Warranty for one year, maintenance forever, change within 3 months because of product quality.
