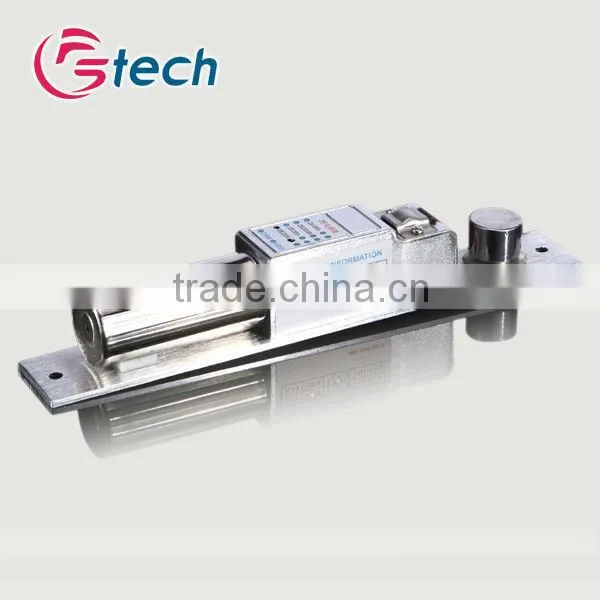

Help Center12V Drop Bolt Lock With Door and Lock Signal Output
Related Products
-
Fail Safe Electric Drop Bolt Lock for Access Control SolutionUS$ 7 - 25MOQ: 100 Pieces -
Electric Drop Bolt Lock Dual Fail Safe For Access Control SystemUS$ 7 - 25MOQ: 100 Pieces
-
Latest Fail Safe Drop Bolt Locks Electric Drop Bolt LockUS$ 7 - 25MOQ: 100 Pieces
-
Stainless Steel Material Especially for Automatic Door Mortise Lock BodyUS$ 10 - 25MOQ: 100 Pieces
-
Elctric Dead Bolt Mortise Lock for Glass Door BT-19US$ 7 - 25MOQ: 100 Pieces
Electric deadbolt lock description:
1.Specially design of positioning ball
2.Power on to lock, power off to unlock
3.Keep working without lock body burning
4.More secure and reliable
5.High quality item guaranteeing the safety of your house.
6.Lock with electricity, magnetic induction, low consumption, noiseless.
7.Ease installation with most doors specially for wooden door, glass door, iron door
Electric deadbolt lock technical parameters:
| Time delay function | 0/3/6/9sec |
| Faceplate size | 235Lx35WX38H(mm) |
| Voltage | 12VDC±15% |
| Start current | 650mA |
| Standby current | 250mA |
| Signal output | NO/COM |
| Suitable for | Wooden Door,Glass door,Metal door |
| Door open angle | 90, 180 |
| Induction distance | ≥10mm |
| Operating temp | -20~+55°C(14~131F) |
| Operating humidity | 0~90%(non-condensing) |
| Lock weight | 0.68kg |
| Safty type | Fail safe |
Electric deadbolt lock advantages:
1.Electric dead bolt lock with low temperature, safe & durable
2.With low power, environmental protection
3.With special designed solenoid for strength and long life
4.MOV provides reverse current protection
5.With superior strength aluminum alloy, solid stainless steel bolt
6.Suitable for all kind of the door

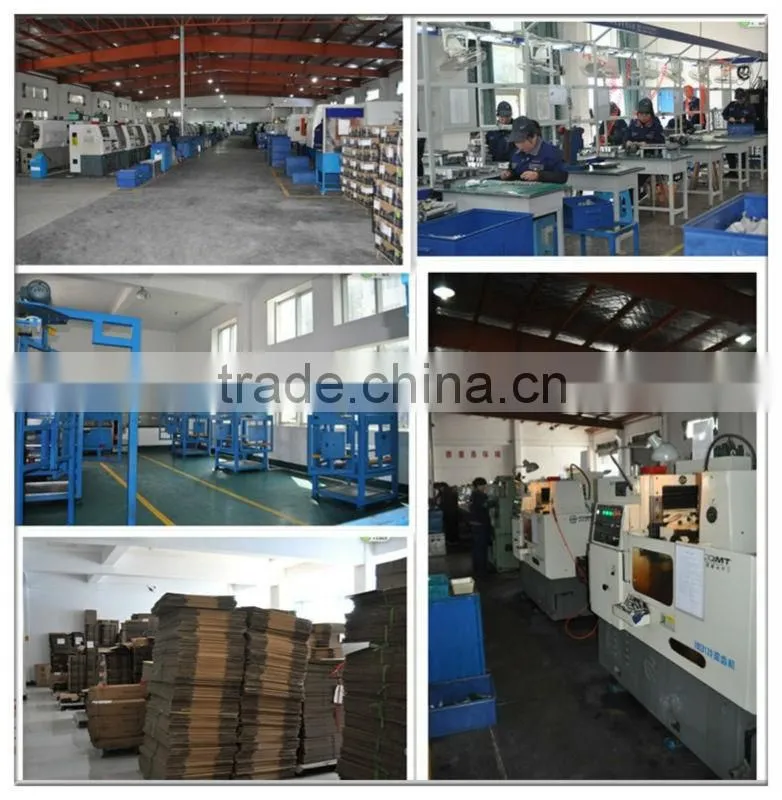

Electric deadbolt lock factory picture:
Electric deadbolt lock application:

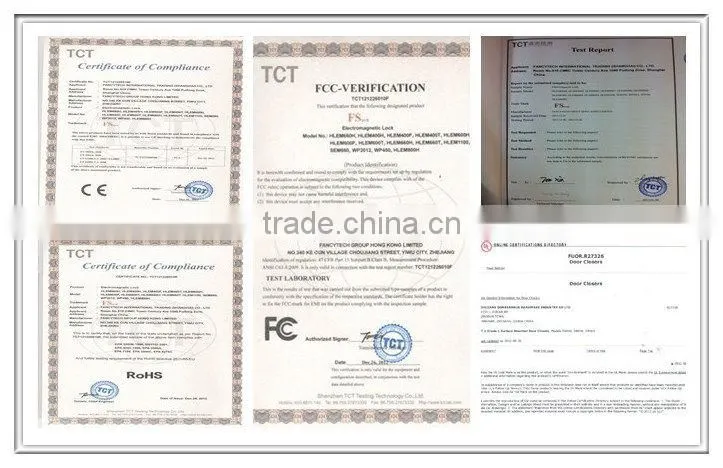

Our approves:
Customer and us:
Payment:
If the total amount is less than 500USD, we prefer to accept Paypal or Western Union. For big amount we accept bank transfer.
Shipment:
Normally we will use UPS, DHL, FEDEX or EMS express. It usually takes 3-7 working days depending on the countries deliver to. We can also arrange other shipment way per your requirement and instruction, such as sea shipment, air shipment, etc.
Warranty:
Warranty for one year, maintenance forever, change within 3 months because of product quality.
