A door closer is a mechanical device that closes a door, in general after someone opens it, or after it was automatically opened.
Choosing a door closer can involve the consideration of a variety of criteria. In addition to the closer's performance in fire situations,
other criteria may include resistance to opening forces (for use by disabled or infirm), control over the rate of closing, safety, durability,
risk of vandalism, and aesthetics.
Door closer description:
1. Energy-saving, sound proofing.
2. High intensity body, import high quality hydraulic oil
3. Elegant configuration, with strong decorative performance
4. Aluminum extrusion main part, prevent the body oil leakage
5. Ensure fire door in the closed state when emergency happens
6. Stable quality, durable, used for light door, open by left and right
7. Ensure door lock device (mechanical lock, electric lock, etc.) work normally
Door closer advantages & features:
1. High Cost Performance
2. Non-Handed Installation
3. Hold Open Function Optional
4. Compact Beautiful Appearance

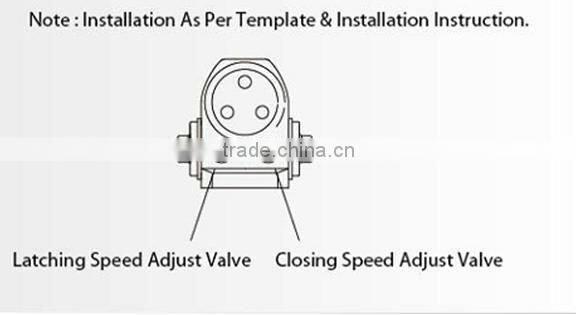

5. Adjustable Closing&Latching Speed
6. Service life reaches to 1,000,000 times
7. Precise Cast Aluminum Body &Steel Arm
8. Economical Model for Residential and Commercial use
Door closer technical parameters:
Type |
DC305 |
Door width |
1100mm |
Door weight |
60-85kg |
Closed strength grade |
EN4 |
Colour |
Silvery grey, bronze, golden |
Door closer application:

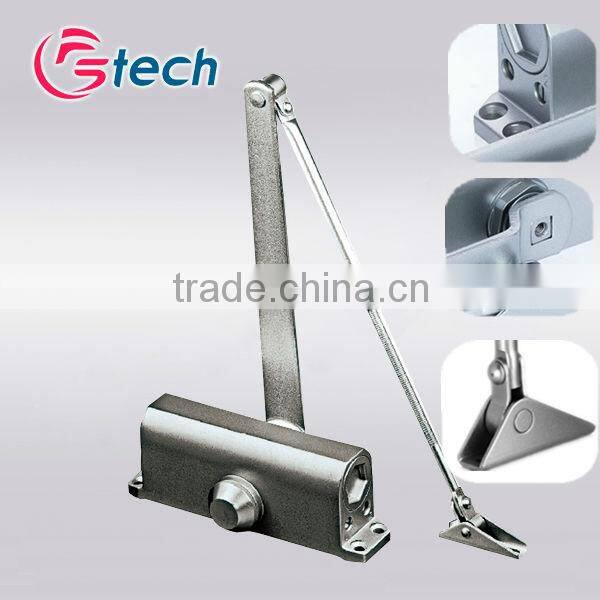

Door closer more detail:

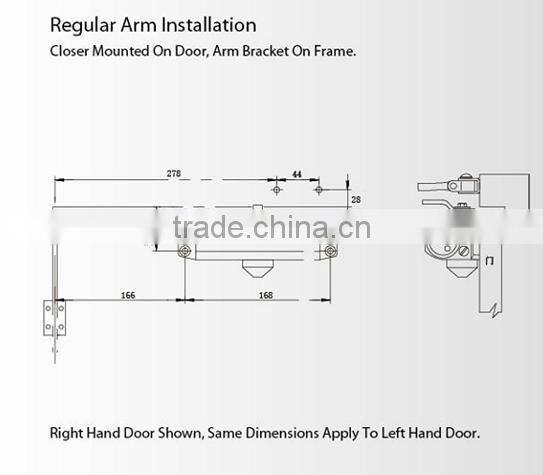

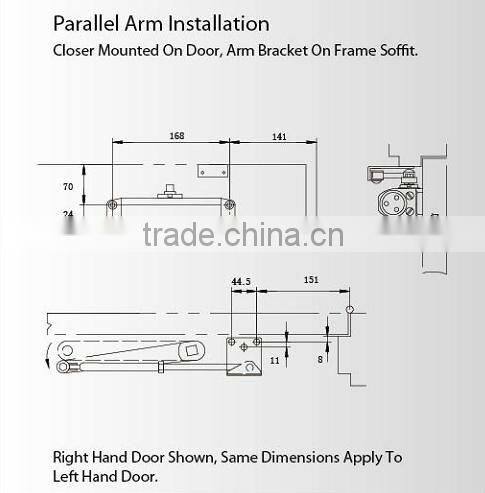

Door closer installation:
Parameter and Specification:
Main parameter | |||||||||
|
Product Model |
Overall Dimension(mm) |
Installation Dimension(mm) |
Applicable Door Weight(KG) |
Closed Strength grade |
Max.open Degree |
Max.door Opening Angle(mm) |
|||
A |
B |
E |
C |
D |
|||||
DC103 |
147 |
63 |
51 |
130 |
20 |
25-45 |
EN2 |
180 |
850 |
DC204 |
178 |
65 |
62 |
160 |
20 |
40-65 |
EN3 |
180 |
950 |
DC305 |
205 |
80 |
75 |
185 |
20 |
60-85 |
EN4 |
180 |
1100 |
DC403 |
274 |
32 |
73 |
255 |
20 |
45-65 |
EN3 |
115 |
950 |
DC503 |
175 |
63 |
41 |
60 |
38 |
40-65 |
EN3 |
180 |
950 |
Door closer series:
Door closer factory:
