Specifications
Door closer description:1.Smooth operation
2.Flush mounted
3.Adjustable closing speed
4.3 finishing for you to choose
A door closer is a mechanical device that closes a door, in general after someone opens it, or after it was automatically opened.
Choosing a door closer can involve the consideration of a variety of criteria. In addition to the closer's performance in fire situations,
other criteria may include resistance to opening forces (for use by disabled or infirm), control over the rate of closing, safety, durability,
risk of vandalism, and aesthetics.
Door closer with cover description:
1. Energy-saving, sound proofing.
2. High intensity body, import high quality hydraulic oil.
3. Elegant configuration, with strong decorative performance.
4. Aluminum extrusion main part, prevent the body oil leakage.
5. Ensure fire door in the closed state when emergency happens.
6. Stable quality, durable, used for light door, open by left and right.
7. Ensure door lock device (mechanical lock, electric lock, etc.) work normally.
Door closer with cover advantages & features:
1. High Cost Performance.
2. Non-Handed Installation.
3. Hold Open Function Optional.
4. Compact Beautiful Appearance.
5. Adjustable Closing&Latching Speed.
6. Service life reaches to 1,000,000 times.
7. Precise Cast Aluminum Body &Steel Arm.
8. Economical Model for Residential and Commercial use.
Door closer with cover technical parameters:
Type |
DC916 |
Door width |
800-1500mm |
Door weight |
65-150kg |
Closed strength grade |
EN1-6 |
Colour |
Silvery grey, bronze, golden |

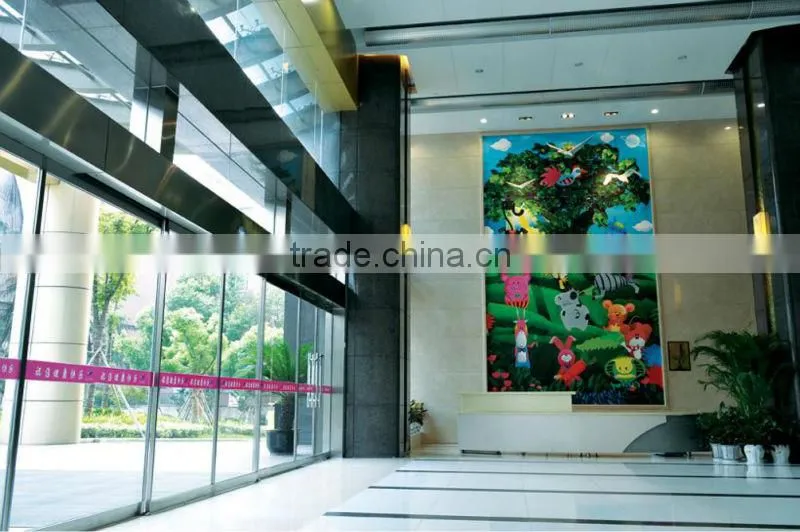

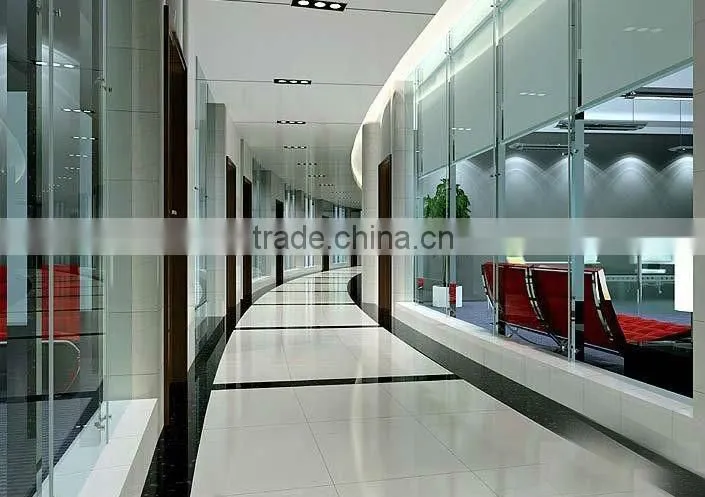

Door closer with cover application:
Door closer with cover more detail:

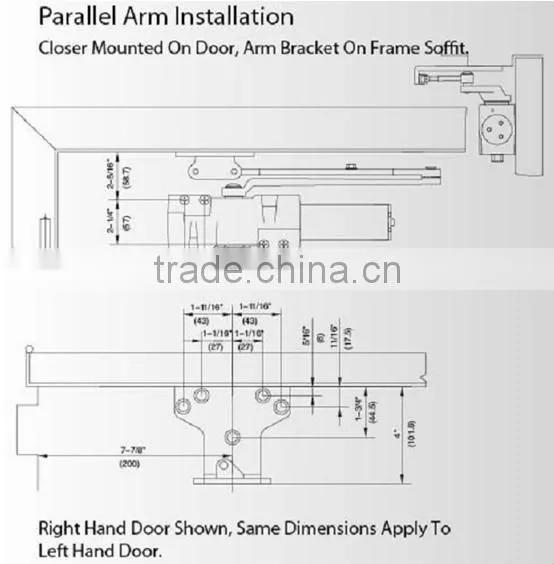

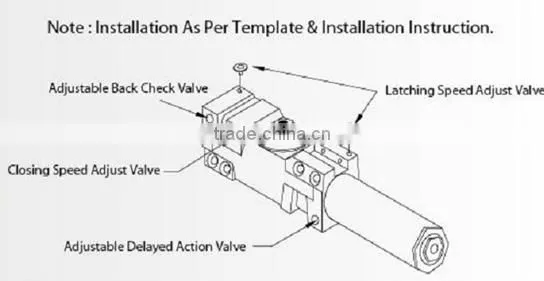

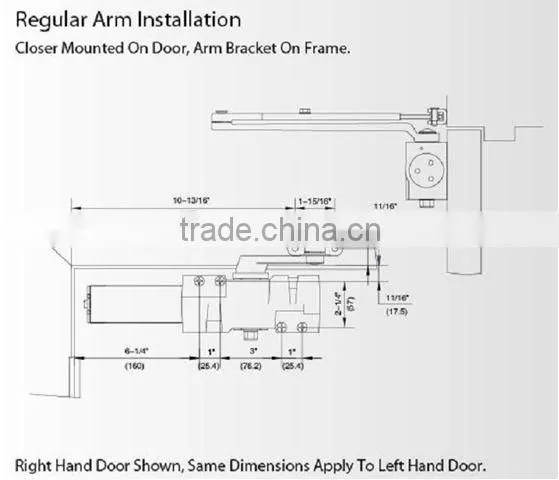

Door closer with cover installation:
Parameter and Specification:
Main parameter | |||||||||
|
Product Model |
Overall Dimension(mm) |
Installation Dimension(mm) |
Applicable Door Weight(KG) |
Closed Strength grade |
Max.open Degree |
Max.door Opening Angle(mm) |
|||
A |
B |
E |
C |
D |
|||||
DC103 |
147 |
63 |
51 |
130 |
20 |
25-45 |
EN2 |
180 |
850 |
DC204 |
178 |
65 |
62 |
160 |
20 |
40-65 |
EN3 |
180 |
950 |
DC305 |
205 |
80 |
75 |
185 |
20 |
60-85 |
EN4 |
180 |
1100 |
DC403 |
274 |
32 |
73 |
255 |
20 |
45-65 |
EN3 |
115 |
950 |
DC503 |
175 |
63 |
41 |
60 |
38 |
40-65 |
EN3 |
180 |
950 |
Door closer with cover series:
Door closer with cover factory:
