Specifications
The United States imported power regulator chip, with high efficiency, strong anti-interference, wide output voltage rangeUPS power supply description:
1. With regulatory function with delay
2. Can connect to NO, NC electric lock
3.12VDC output, 220VAC (110VAC) input
4. Uses the latest technology, safe and reliable
5. Designed for all kind of access controller, elevator control system and electric lock
6. Control electric lock by switch signal from access controller or power supply output DC12V directly
7. Reduce overload controller, can connect electric lock of on or off mode, adjust the open delay time, open key
8.Widely used to Building intercoms and all kinds of access controllers, especially for electric locks
UPS power supply advantages & features:
1.With delay control circuit, unlock delay in 0-60s
2.Press the open button to open the electric lock directly
3.With output NC/NO, can control all kinds of electric lock
4.3A transformer, easy for install, convenient for connect, dampproof design
5.Control electric locks or bolts directly, Reduce the load of access controller system
6.Reduce the load of access controller, Save engineering cabling, lower potential trouble
7.Protecting function, When short circuit happen, power supply can automatically disconnect
temporarily or fusing the fuse wire
UPS power supply technical parameters:
Time delay changeable |
0-60S |
|
Application
|
power source for electric lock exclusive use |
Input voltage |
180-240VAC |
Output voltage |
12VDC |
Max output current |
3A |

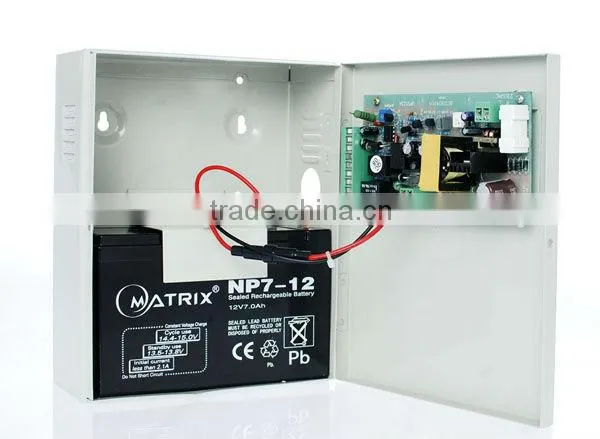

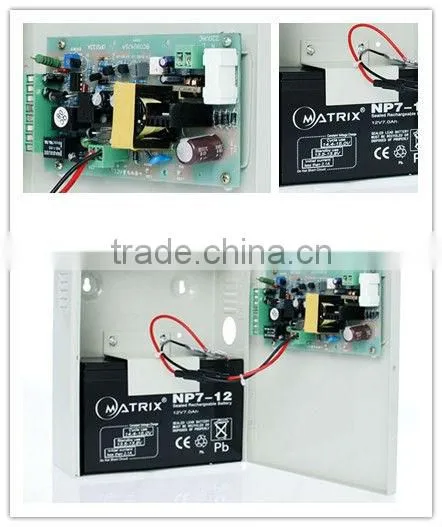

UPS power supply more detail:

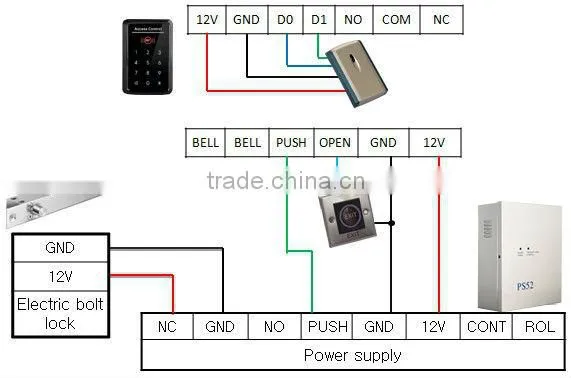

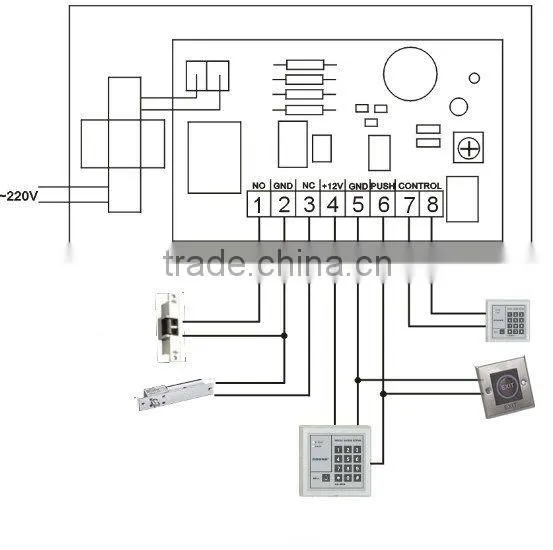

UPS power supply wiring diagram:

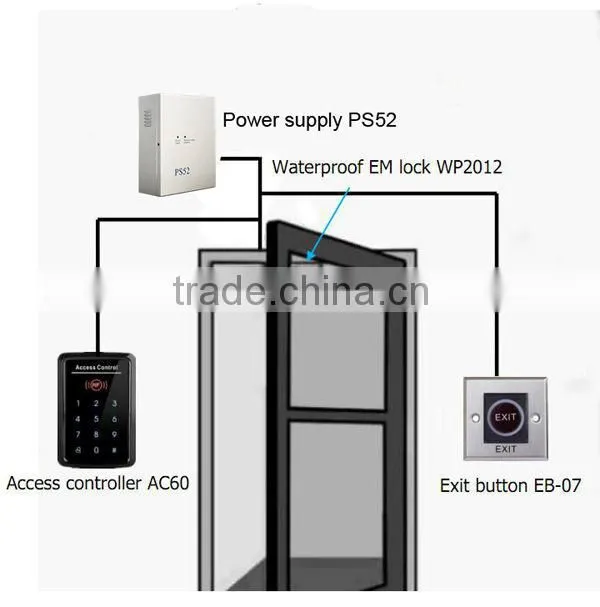

UPS power supply application:
Payment:
If the total amount is less than 500USD, we prefer to accept Paypal or Western Union. For big
amount we accept bank transfer.
Shipment:
Normally we will use UPS, DHL, FEDEX or EMS express. It usually takes 3-7 working days
depending on the countries deliver to.
We can also arrange other shipment way per your requirement and instruction, such as sea
shipment, air shipment, etc.
Warranty:
Warranty for one year, maintenance forever, change within 3 months because of product quality.
