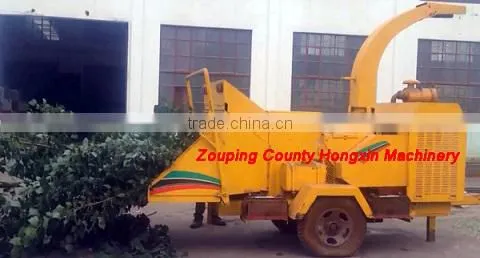

tree branch grinder Diesel engine Mobile
1. Tree branch grinder Characteristics:
1).Simple structure, Sturdy and Durable
2). Easy operation, working more efficiently
3). Adapt to wide raw material, High safety
4). Easy maintenance, Mobile.
2. Tree branch grinder Application range:
1). Scope: logs, branches, undersized logs, wood cutting leftover material, shrubs, cotton stem.
2). Purpose: prepare material to papermaking, MDF board, biomass fuel factory etc.
3. Tree branch grinder Powerful Motor:
<img src="/kf/HTB1Ro38KXXXXXapXXXX760XFXXXM/202205457/HTB1Ro38KXXXXXapXXXX760XFXXXM.png" width="404" height="404">
The motor is alternative to satisfy your needs. According to the actual needs, the type of motor is 75kw (100 horsepower) and 90kw (130 horsepower)
<img src="/kf/HTB1JOQ2KXXXXXarXpXX760XFXXXP/202205457/HTB1JOQ2KXXXXXarXpXX760XFXXXP.png" width="339" height="285">
Motor Starts without Sliding
Easy Maintenance
4. Tree branch grinder Automatic Control Feeding:
<img src="/kf/HTB1xy.FKXXXXXb3XVXX760XFXXXV/202205457/HTB1xy.FKXXXXXb3XVXX760XFXXXV.png" width="404" height="404">
5. Tree branch grinder Good safety operation:
<img src="/kf/HTB1T_s1KXXXXXaOXpXX760XFXXXc/202205457/HTB1T_s1KXXXXXaOXpXX760XFXXXc.png" width="404" height="404">
<img src="/kf/HTB1bAEPKXXXXXbNXFXX760XFXXXe/202205457/HTB1bAEPKXXXXXbNXFXX760XFXXXe.png" width="404" height="404">
6. Tree branch grinder Easy operation:
<img src="/kf/HTB11ewDKXXXXXcFXVXX760XFXXXV/202205457/HTB11ewDKXXXXXcFXVXX760XFXXXV.png" width="404" height="404">
7. Tree branch grinder More efficient:
<img src="/kf/HTB1Hi.4KXXXXXXJXpXX760XFXXXT/202205457/HTB1Hi.4KXXXXXXJXpXX760XFXXXT.png" width="404" height="404">
440 x 380mm inlet size, When feeding material, there is no necessary to adjust the raw material, so more efficient.
8. Tree branch grinder convenient wood chips loading:
<img src="/kf/HTB1NrwxKXXXXXaFaXXX760XFXXXl/202205457/HTB1NrwxKXXXXXaFaXXX760XFXXXl.png" width="404" height="404">

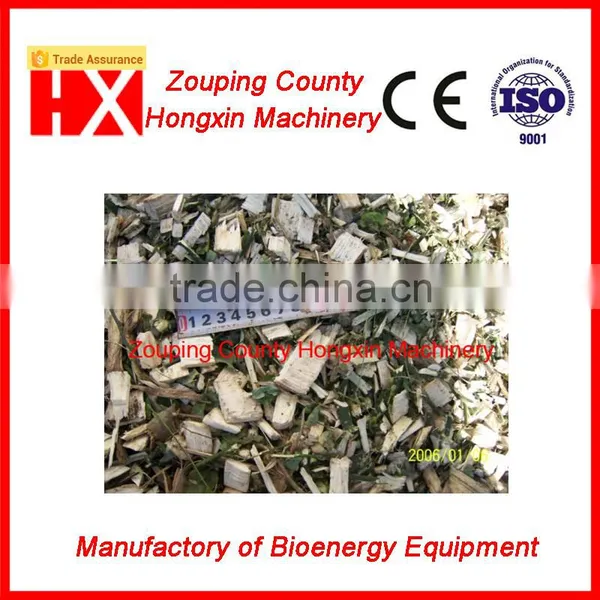

9. Tree branch grinder High quality chipping products:
<img src="/kf/HTB19Q.vKXXXXXbDaXXX760XFXXXH/202205457/HTB19Q.vKXXXXXbDaXXX760XFXXXH.png" width="404" height="404">
10. Tree branch grinder Technical parameters:
Model |
HXBC1000 |
Diesel Engine |
Changxing 4105 |
Total Power |
75 kw |
Fuel |
Diesel |
No.Of Oil Cylinder |
4 |
Oil Tank Volume |
|
Hydraulic Oil Tank (L) |
55 |
Fuel Tank (L) |
27 |
Cutting System |
|
Rotating Speed (rpm) |
1700 |
Diameter of Cutter Roller (mm) |
544 |
Blade (pcs) |
2 |
Bottom blade (pcs) |
1 |
Inlet & Outlet System |
|
Inlet size (mm) |
440*380 |
Inlet Roller(cm) |
Diameter 50 single roller, horizontal installation |
Rate of Feeding (m/min) |
0-40 |
Outlet Chute height (mm) |
2700 |
Outlet Chute Rotation Angle |
3600 |
Wheel |
Dual Wheel |
Capability |
5-8t/hr |
Size (L*W*H mm) |
3800*1600*2700 |
Weight (T) |
2.8 |
Introduction to Zouping County Hongxin Machinery
1).15 years of experience in biomass energy crushing industry, located in Zouping County, Shandong Province, China.
2).Main products: Wood chipper, Sawdust machine, Drum dryer, Vertical ring die pellet machine (biomass pellet machine), Counter flow cooling separator, Packing machine; Comprehensive crusher, Building templates crusher, Plancon crusher (Stump grinder), Free move (Mobile) cutting machine (Brush chipper), Complete pellet production line.
3).Manufacture independently the key machines of pellet production line, can design complete production line according to customers’ needs.
4).Covers an area of 40,000 square meters, with more than 200 people including 120 specialized technicians and 8 senior engineers.
5).More than 100 sets of machineries of assembling, processing and transportation, etc.
6).Formed a complete systematic management system, can offer non-standard products according to customers’ request.
7).ISO9001certified. CE certified.
8).Provide clients with reliable and timely After-Sales Service and Technology Support.
