tree bark crusher
1. tree bark crusher Characteristics:
1) Advanced structure
2) High chipping quality
3) Hydraulic control, easy operation, easy maintenance
2. tree bark crusher Using scope and purpose:
1). Scope: wood raw material: timber, processing residues(branches, slab, batten, wood core, building templates, roots, bark, waste veneer), particle board, fiber board.
Non-wood raw materials: sugarcane, reed, bamboo, building templates. tc.
2). Purpose: particle board factory, high density fiberboard, stubble factory, biomass power plant, wood factory and other manufacturers
3. tree bark crusher Technical parameters:
Type |
HX1250-500 |
Rotor rotational speed ( round per minute) |
650 |
Rotor diameter (mm) |
800 |
Input size (mm) |
1250 - 500 |
Weight (t) |
7.8 |
Feeding power (kw) |
7.5+5.5 |
Main power (kw) |
132 |
Oil pump power (kw) |
3 |
Feeding conveyer length (m) |
6 |
Output conveyer length (m) |
10 |
Size (mm) |
7120 x 2820 x 2680 |
Capacity (ton per hour) |
10-15 |

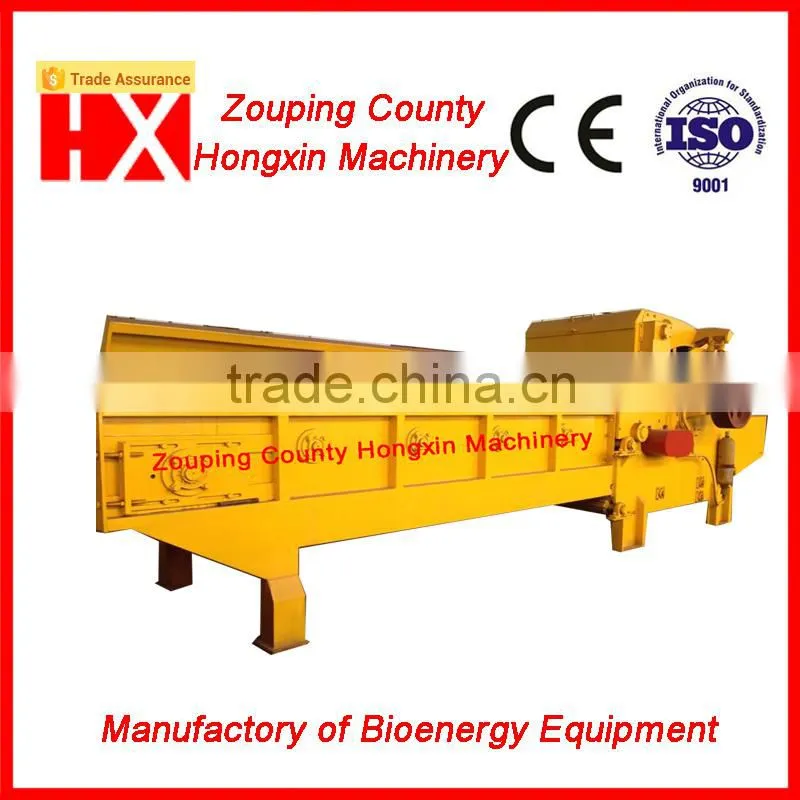

4. tree bark crusher picture:

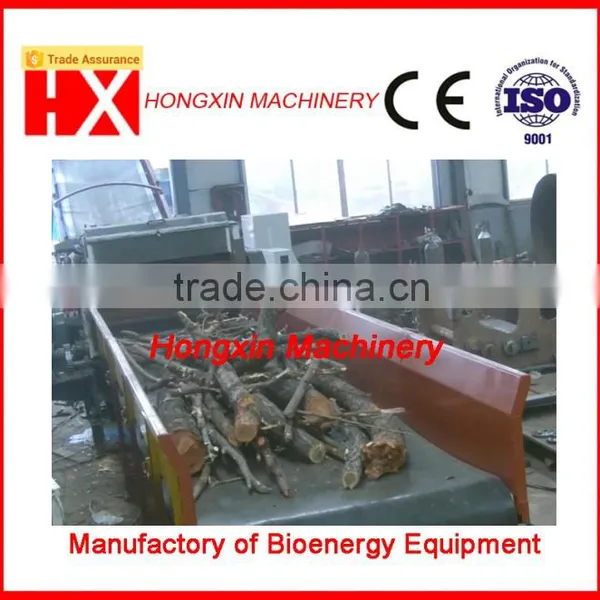

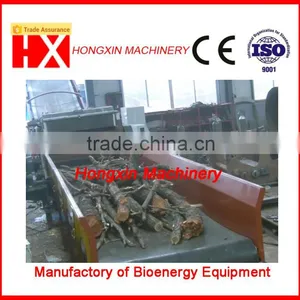

5. Link joint feeding method
Feeding link joint is made of high manganese steel (ZGMn13-4), more durable.
6. Blade type rotor
7. Test of Rotor
8. tree bark crusher High Quality Product:
Introduction to Zouping County Hongxin Machinery
1).15 years of experience in bioenergy crushing industry, located in Zouping County, Shandong Province, China.
2).Main products: Wood chipper, Sawdust machine, Drum dryer, Vertical ring die pellet machine (biomass pellet machine), Counter flow cooling separator, Packing machine; Comprehensive crusher, Building templates crusher, Plancon crusher (Stump grinder), Free move (Mobile) cutting machine (Brush chipper), Complete pellet production line.
3).Manufacture independently the key machines of pellet production line, can design complete production line according to customers’ needs.
4).Covers an area of 40,000 square meters, with more than 200 people including 120 specialized technicians and 8 senior engineers.
5).More than 100 sets of machineries of assembling, processing and transportation, etc.
6).Formed a complete systematic management system, can offer non-standard products according to customers’ request.
7).ISO9001certified. CE certified.
8).Provide clients with reliable and timely After-Sales Service and Technology Support.
