1. Characteristics
1) Advanced and reliable technology
2) Perfect structure, Stable performance, Durable
3) Apron conveyer
4) Can adjust feed rate automatically according to the main motor, avoid idle running
5) High throughput capacity and high quality chips
6) Low-maintenance, Safety and Reliable, Efficient and environment-friendly
7) Cost-efficient and space-saving
8) Chipping all kinds of wood
9) Guaranteed long running time
2. Application
All kinds of building templates, shipping pallets. etc
3. Technical Parameters
Type |
HX1400-500 |
HX1400-800 |
HX1400-1000 |
Blade diameter (mm) |
800 |
1100 |
1300 |
Blade rotational speed (r p m) |
926 |
926 |
926 |
Blade number (piece) |
24 |
24 |
6/8 |
Main power (kw) |
200 |
250 |
315 |
Capacity (t PER h) |
18-20 |
25-30 |
30-40 |
Input size (mm) |
1400-500 |
1400-800 |
1400-1000 |
Weight (t) |
18.6 |
24.6 |
26 |
Size (mm) |
8600 x 2480 x 2800 |
11000 x 2480 x 3250 |
11000 x 2480 x 3450 |

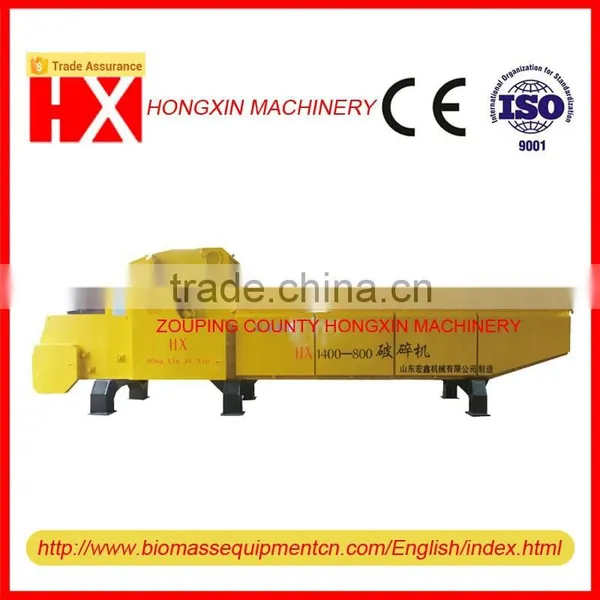

4. Featured photo
5. Main Structure

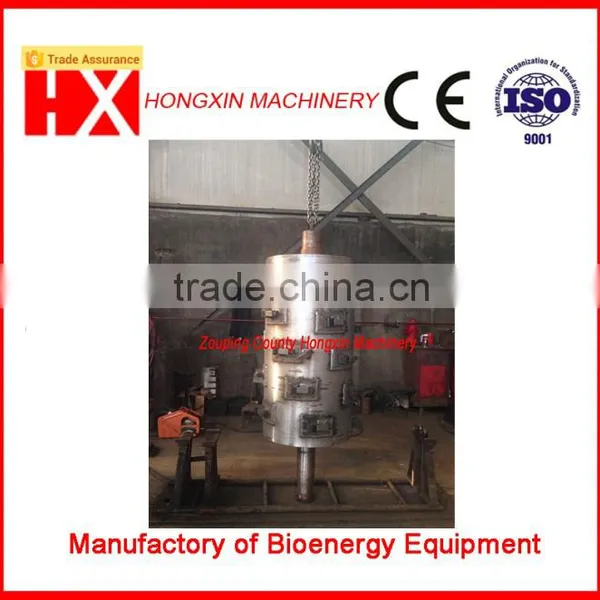

1) Hammer rotor
2) Link Joint feeding conveyor

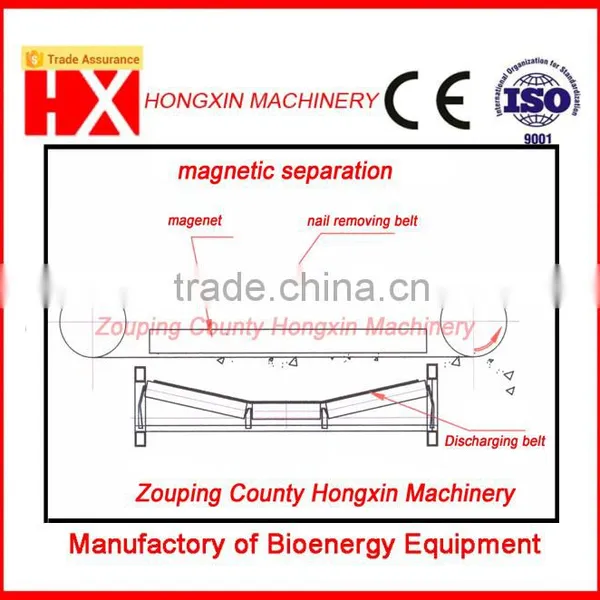

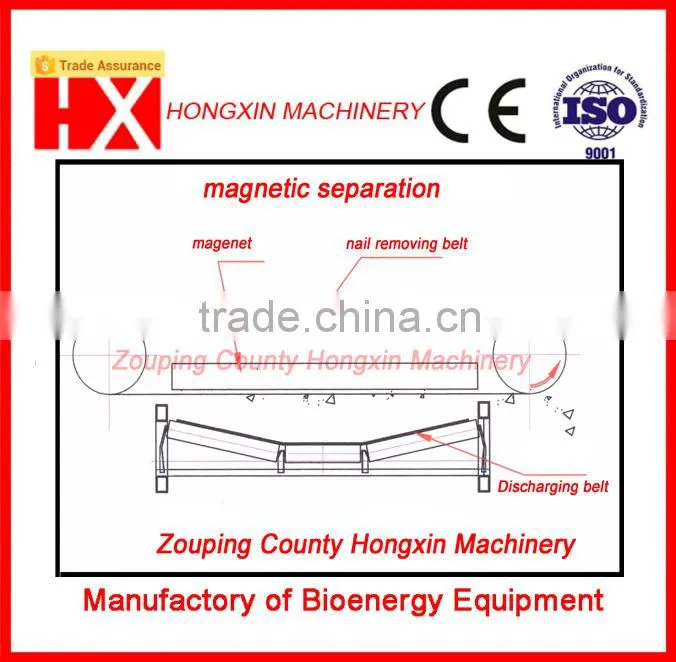

3) Nail magnetic separator

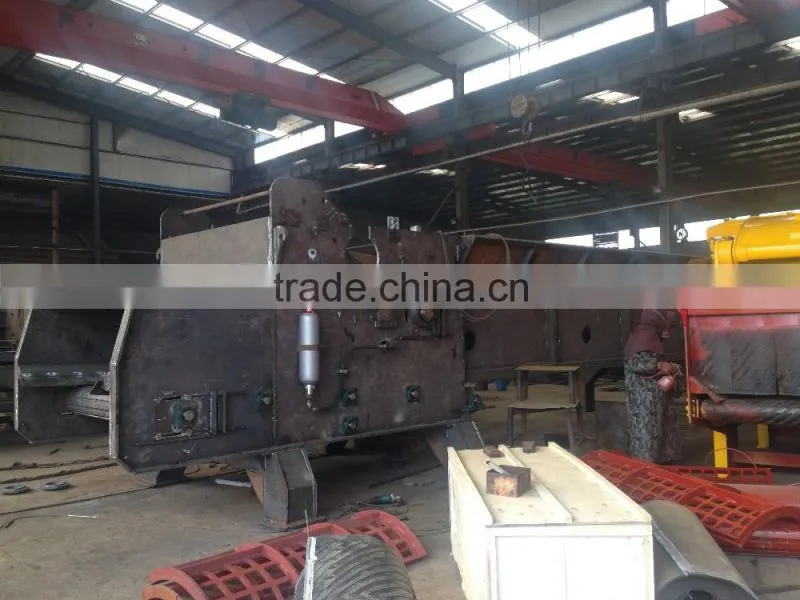

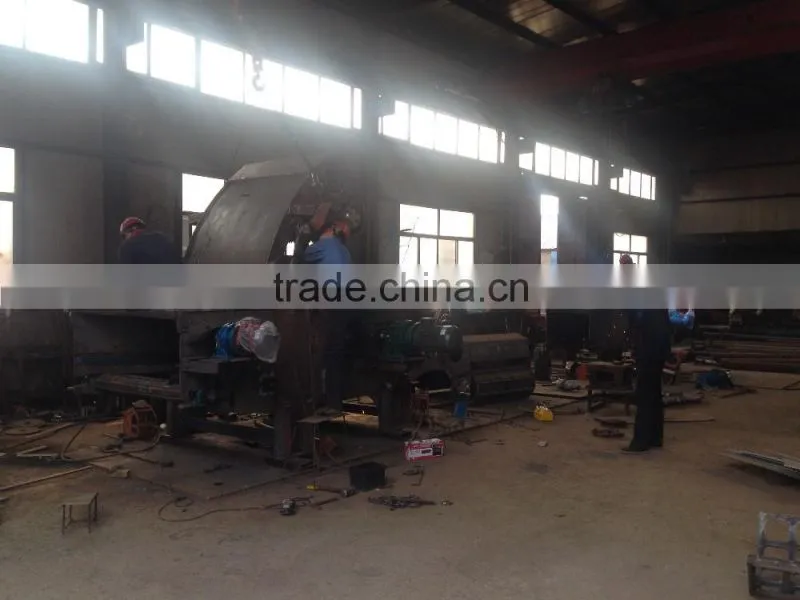

6. Manufacturing process

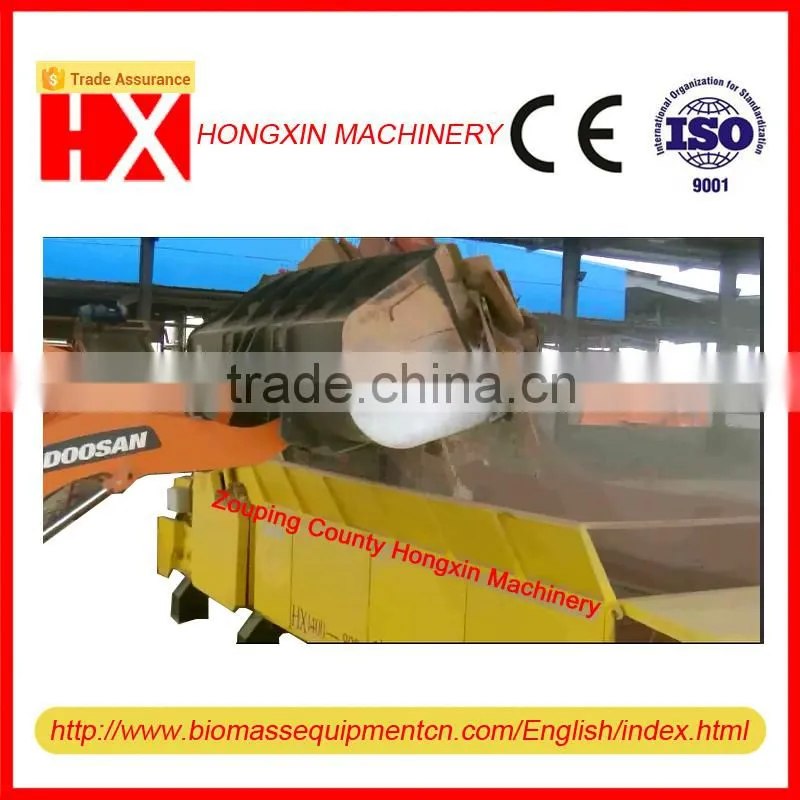

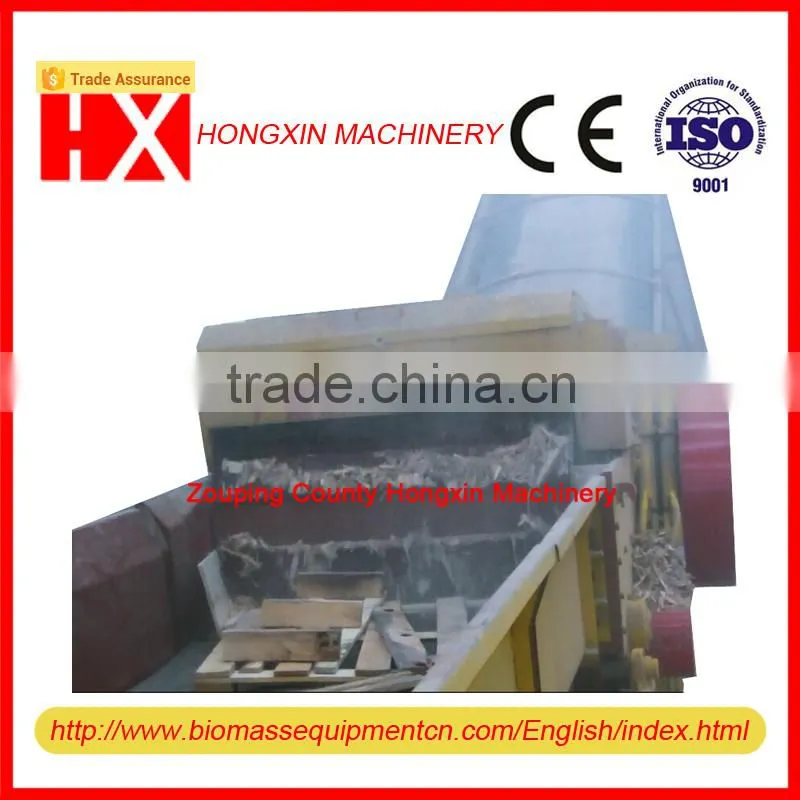

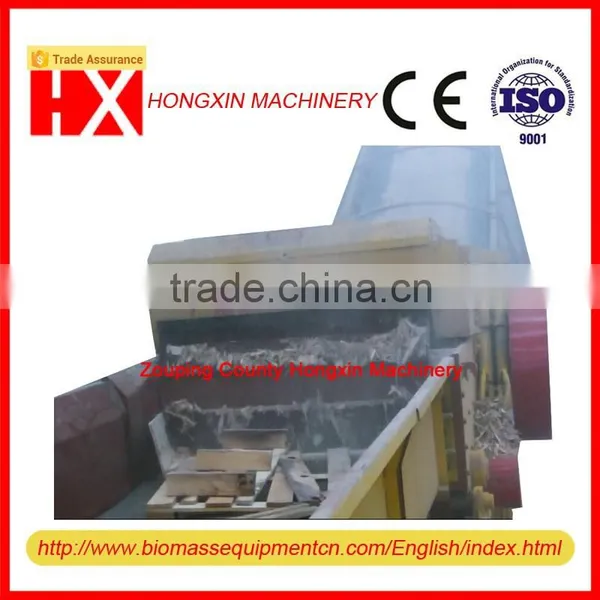

7. Working Site
8. Working Video
/v_show/id_XMTQxODc5NDI4NA==.html
/v_show/id_XMTQxODc1MDIyNA==.html

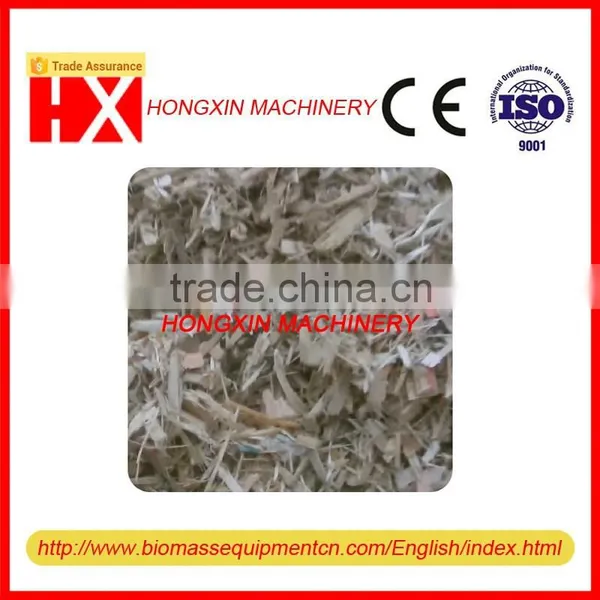

9. Output Production

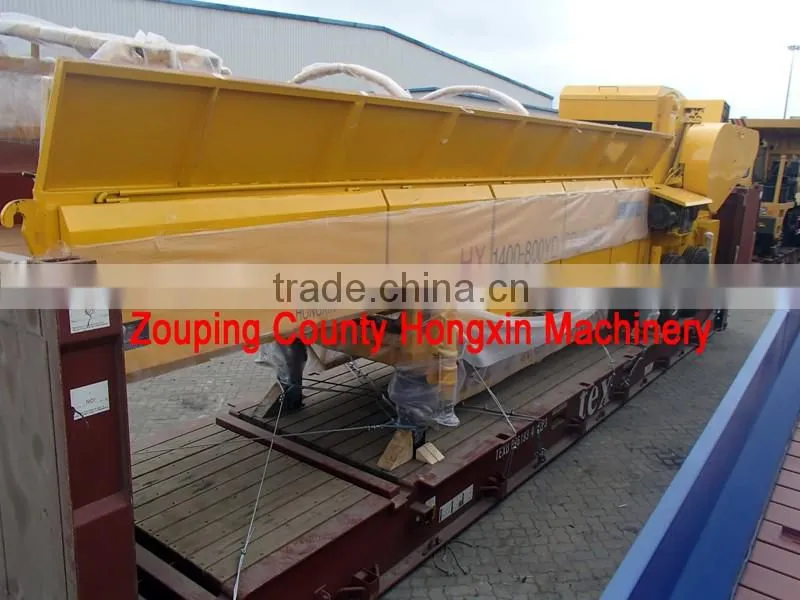

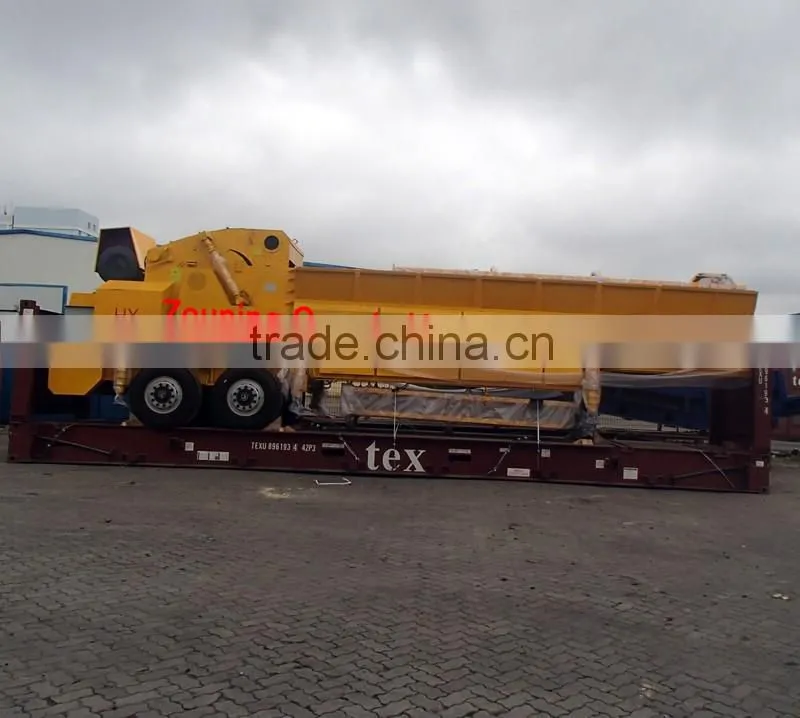

10. Packing & Delivery
11. Inquiry Tips
In order to provide you better service, Could you please try to provide the below information,
1) What is dimension of the building templates?
2) Required production capacity per hour ?
3) Required output size?
4) Mobile type OR fixed type?
5) Electric motor OR diesel engine?
6) What the output wood chips will be used for ? ( For biomass power plant? Making wood pellet? ect)
7) Whether need nails magnetic separator.
Then I will recommend suitable model based on your actual needs.
12. Warranty
1) Quote include all accessories.
2) One year guarantee time from the date of acceptance of the machine (except wearing parts). During the warranty period, Seller will supply replacement parts or repair them for free, which are proved to be defective on materials or quality when users properly operate under normal working conditions.
3) Provide clients with reliable and timely After-Sales Service and Technology Support.
13.Company Introduction
1).15 years of experience in biomass energy crushing industry, located in Zouping County, Shandong Province, China.
2).Main products: Wood chipper, Sawdust machine, Drum dryer, Vertical ring die pellet machine (biomass pellet machine), Counter flow cooling separator, Packing machine; Comprehensive crusher, Building templates crusher, Plancon crusher (Stump grinder), Free move (Mobile) cutting machine (Brush chipper), Complete pellet production line.
3).Manufacture independently the key machines of pellet production line, can design complete production line according to customers’ needs.
4).Covers an area of 40,000 square meters, with more than 200 people including 120 specialized technicians and 8 senior engineers.
5).More than 100 sets of machineries of assembling, processing and transportation, etc.
6).Formed a complete systematic management system, can offer non-standard products according to customers’ request.
7).ISO9001certified. CE certified.
8).Provide clients with reliable and timely After-Sales Service and Technology Support.
14. Factory Corner
15. Our Certificate
