1 Scope
RTHZ72F type bogie adopts new structure side frame to improve the operating condition and efficiency. It
is applicable for freight car with 1000mm gauge, 20t axle load and 80km/h max running speed.
2 Main structure
RTHZ72F type bogie is casting steel three pieces bogie. It mainly consists of bolster assembly, side frame
assembly, wheel set, bearing assembly, bolster suspension and damping device, basic brake device, adapter,

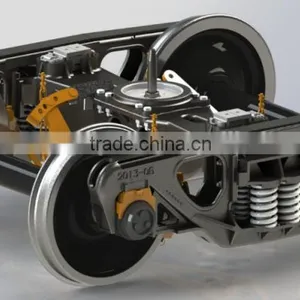

rigid side bearing, center plate wear plate, top center plate, etc. Figure 1 shows the 3D diagram of the bogie.
Figure 2 shows the proposal drawing of bogie.
3 Main performance parameters
3.1 Track gauge 1000mm
3.2 Axle load 20t
3.3 Bogie dead weight 3.45t
3.4 Max. structure speed 80km/h
4 Basic dimension
4.1 Fixed wheel base 1600mm
4.2 Wheel diameter 762mm
4.3 Distance between journal centers 1574mm
4.4 Center distance of side bearing 1220mm
4.5 Distance of two rims 925±1mm
4.6 Fee height from surface of center plate to rail surface (include center plate
wear plate)
645+10
0mm
4.7 Distance from lowest point of side frame to top rail with new wheel
>140mm
4.8 Center plate diameter 298mm
4.9 Height from lower surface of center plate to top surface of side bearing
(working condition)
59mm
4.10 Angle between brake lever and vertical surface of car body
0°
4.11 Bogie basic braking leverage ratio 6
