Below are the highlights:
1. Smaller body, powerful interactive experience
Plastic shell, after highlighting process, it’s more cute and delicate;
Can work with any projector, no matter what brand, no matter what configuration, it can work perfectly to realize interactive function.
2. Using Velcro backing, to give you better installation method
Use 3M Velcro backing to fix the base onto projector or desk, as long as it is flat surface, anywhere can be used.
3.Adjustable fixing base, more easy to focus right
Rotate the camera, you can get horizontal 360°and vertical 120°setting range.
4.No more laser switch, controlled by software
After set the angle of signal receiver, calibration program will close laser switch automatically, so you will no need manual operation anymore.
5.Add flash memory chip, makes it more powerful
First, response speed more quick.
Second, the initial calibration data can be stored, even if you changed the connected PC, you don’t have to calibrate again.
6.Auto-calibration, greatly save your time
The original short throw portable IWB has to calibrate many points, it takes long time.
Now we have auto-calibration function, it can be done by 2 seconds, which is more convenient for users.
7.Anti-light interference technology, products quality become more stable
Strong anti-light interference function, block the light from same spectrum automatically, improved the products stability to a large degree.
8.Matched new pen, second to none
Meet ergonomics, curved body design, makes your hand more comfortable with it

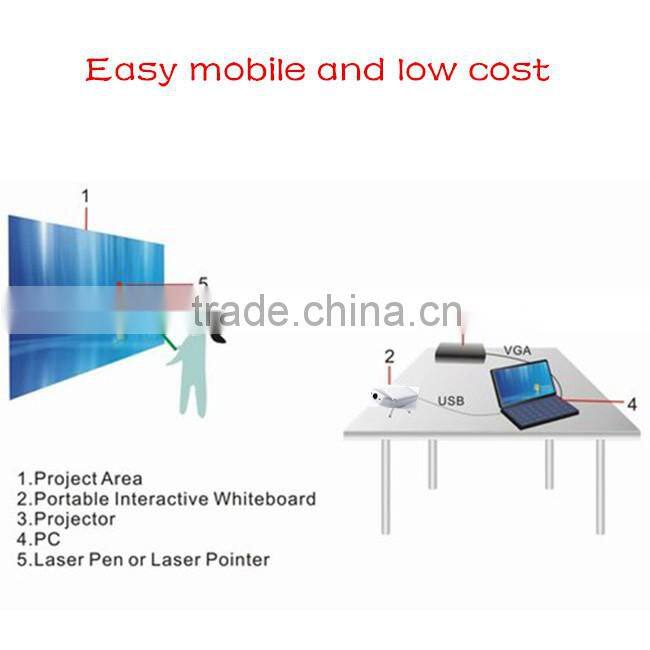

Application
Watch video of automatic calibration here:
Specifications
Signal Receiver | |
Movement Detection Technology |
infrared |
Active Area(max projection size) |
150 inch diagonal |
Active Area(horizontal angle) |
33+/-2 degrees |
Active Area(vertical angle) |
0-30degrees |
Calibration Technology |
Infrared Positioning |
Active Distance(from projection screen) |
0.2-3m |
Connectivity Interface |
1 x USB Cable (connection distance up to 24 m) |
Power Requirement |
4.5 ¨C 9 W (from USB port) |
Power Consumption |
<1.5 W |
Weight |
140g |
E-pen | |
Movement Detection Technology |
LED light |
Power requirement |
3V CR 123A x1 |
Pen Body Dimension |
13.2cm(length); 2cm(diameter) |
Weight |
45g |
E-pointer | |
Movement Detection Technology |
LED light |
Control buttons |
1 button(left and right click of a mouse), touchable |
Power requirement |
3V CR 123A x1 |
Weight |
90g |
Length |
56cm |
Projection Size |
Distance between Receiver and Projection Surface |
70 inch |
360mm |
80 inch |
400mm |
85 inch |
450mm |
95inch |
500mm |
