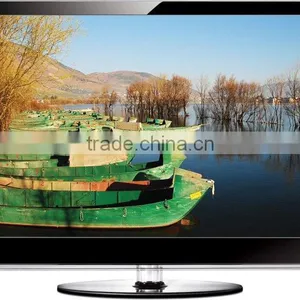

21.5 Inch LED Monitor W2221S5

Name: 21.5 Inch LED Monitor W2221S5
Brand: KTC FPD Horizon ODM OEM
SKU: 134172133

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Application:

Other, For Advertising Machine,Computer and so on

Screen Size:

Other, 21.5inch

Response Time:

5ms

Shenzhen KTC Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Honghong

Delivery Detail:

Delivery time depends on order quantity.

Application Other, For Advertising Machine,Computer and so on

Screen Size Other, 21.5inch

Response Time 5ms

Brightness 300cd/m

Interface Type D-Sub, HDMI

Contrast Ratio 1000:1

Resolution 1280 x 1024

Widescreen Yes

Panel Type TFT

Brand Name KTC FPD Horizon ODM OEM

Model Number W2221S5

Place of Origin Guangdong, China

Specifications

21.5inch LED monitor W2221S5
1.Super Slim Rim
2.Vedio Interface:D-Sub/DVI-D(option)

KTC Products Parameters

Model: W2321S

Item				Value
Appearance
Color				BLACK
Keys				RECALL,ASPECT,AUTO,+,-,MENU,POWER
Elevation adjustment				YES
Base Rotation				NO
Wall Hanger				100mm*100mm
Packaging Dimension with Base(WHD)				630100465mm
Unpackaging Dimension with Base(WHD)				56836418mm
Net Weight				4.0kg
Gross Weight				5.0kg
Packing Box Material				K5K B
Packing Box Bursting Strength				14kgf/cm2
Packing Box Edgewise Crush				5500N/m
Polyfoam Material				EPS
Packing Bag Material				PE
Panel
Panel Size				23″
Aspect Ratio				16:9
Pixel Pitch				0.2655mm
Active Area				509.76mm*286.74mm
Best Resolution				1920*1080@60Hz
Max Brightness				300cd/m2
Max Contrast				1000:1
Response Time(tr/tf)				5ms
Viewing Angle(LR/TB)				176/176
Display Color				16.7M
Performance
H-Frequency				31~68KHz
V-Frequency				56~63Hz
Power Supply				100V-240AC 60/50Hz
Power Consumption(Operating)				<35W on
Power Consumption(Suspend)				<1W flash
Audio Power Consumption				3W+3W(option)
MTBF.				15000h
Back Light life expectancy				50000h
Inteface
VGA				15Pin D-SUB
DVI				DVI-D(option)
Audio in				3.5mm*1(option)
TV
Remote Area
Safety
withstand voltage strength				3000V 5S
Leakage Current				<3.5mA
Earth Resistance				<100mΩ
Approval
Environment
Operating Temperature				5~40°C
Storage Temperature				-20~55°C
Operating Humidity				10%~85%
Storage Humidity				5%~95%
Atmospheric Pressure				86~104Kpa
