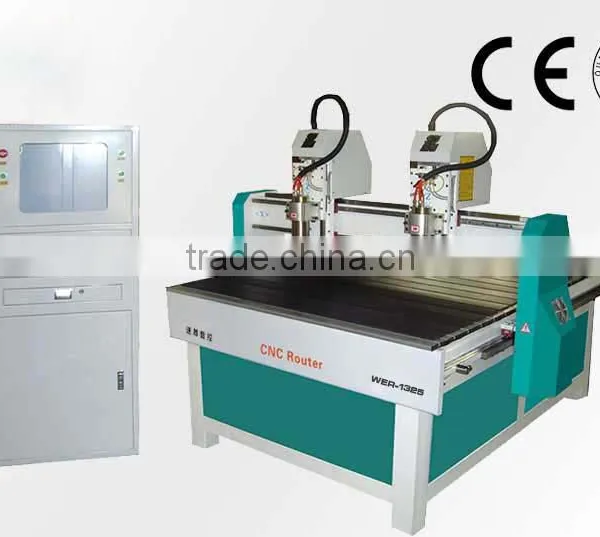

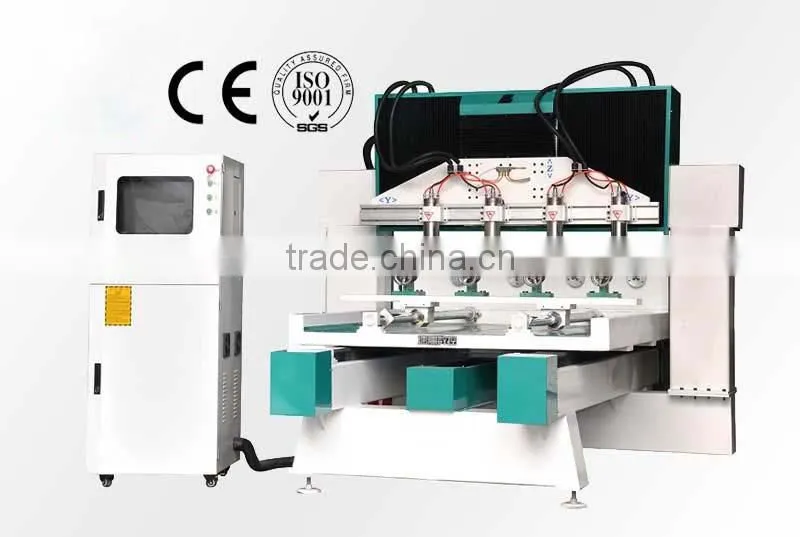

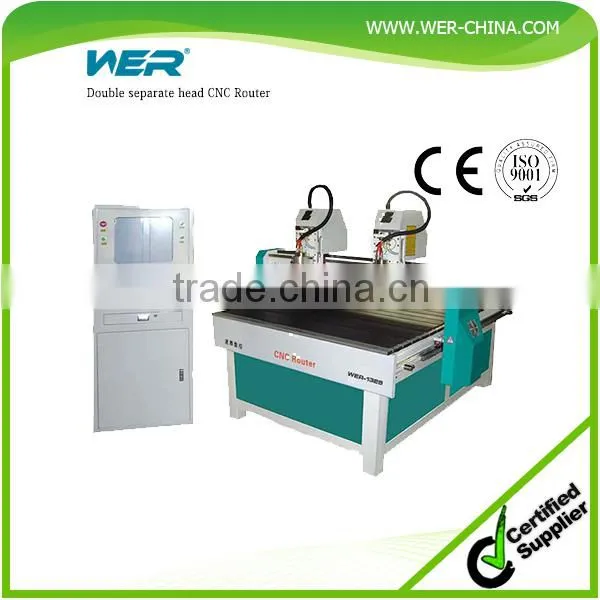

WER Double separate head CNC Router
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Descriptions:
- 1. Cast steel lathe bed, more solid and stable
- 2. 4 heads, the heads can work at the same time or separate, high working efficiency
- 3. Constant power water cooling spindle, higher working strength
- 4. Japanese YASKAWA SERVO motor, higher working precision, not loose step
- 5. Diameter, length of rotary can manufacture according to client's need.
Technical Parameters
Model |
WER-2512 (professional wood CNC router) |
X,Y Working area |
600mm*2, 2500mm |
Z working area |
200 mm |
Spindle type |
Water cooling spindle |
Spindle |
2.2kw *4 water cooling spindle (optional 3.0 kw) |
Spindle speed |
0-24000rpm/min |
operating system |
Original Ncstudio + handwheel |
oiling system |
Automatically |
Motor type |
1300w Japan YASKAWA servo motor |
Transmission |
Ball screw for X,Y ,Z axis |
Guide rail |
HIWIN square orbit (PMI guide rail ) |
Inverter |
5.5kw *2 Sunfar inverter (optional Delta inverter) |
Command code |
G code(*.uoo *.mmg *.plt) |
Working delicacy |
+0.05mm |
Reposition precision |
+0.005mm |
Max speed |
≥25000mm/min |
Max working speed |
≥10000mm/min |
Working voltage |
AC380V/ 50HZ,60HZ |
Engraving Software |
Powermill software (option ) |
Other parts |
Dust collecting system |
Running Environment |
Temperature: 0°C~45°C |
Net Weight |
3400kg |
Gross weight |
3660kg |
Packaging size |
3100*2100*2300mm |
Option |
Spindle: 1.5kw/2.2kw /3.0kw/4.5kw/5.5kw optional; Moto: Step motor /Servo motor Inverter: Sunfar inverter/Delta inverter Guide rail: HIWIN linear guide rail/PMI linear guide rail Control system: DSP control system /Syntec system/Ncstudio |
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Advantages:
1. Integral frame, strong stiff, high intensity, non deformation under long time load
2. WER machines configured with constant power inverter-driven spindle motor cooled by water, high cutting intensity, prolong lifetime of tools
3. WER All axis adopt linear square guide rail, double row and four column ball slider, big bearing capacity, running smoothly
4. Optimization of mechanical and electrical design, adopt most advanced professional controlling system and code format, processing with high speed and precision
5. Automatic oil lubricating system, easy maintenance, prolong lifetime of transmitting parts
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
