1.6 m Indoor Printer

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Plate Type:

Other, inkjet printer

Place of Origin:

Shanghai, China

Shanghai WER-China Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, inkjet printer

Place of Origin Shanghai, China

Brand Name WER

Model Number EW160

Usage Other, print ads

Automatic Grade Automatic

Gross Power 2500W

Dimensions(L*W*H) 2680 mm * 870 mm * 940 mm

Specifications

1.6 m indoor printer
1 piece Epson DX5 head
THK Linear Rail
Sanyo Denki motor
5 workday delivery time

1.6 m indoor printer

Features:

* Original THK Linear Rail

* Both X-motor & Y-motor are the original Sanyo Denki

* Ink system is the same as the one of Roland

Model		WER-EW160
Print Technology		Drop-On-Demand piezoelectric technology
Head Type		Epson DX5 printhead
Head Quantity		One head (2 pcs head is optional)
Nozzles		180 nozzles * 8 lines
Height of Print Head		1.2mm / 2.8mm above media, adjustable
Ink Supply Method		Independent continuous ink supply system
Ink Cartridge	Ink Type	Only use special cartridge accepted by aqueous ink
	Volume	220cc / 440cc ± 5cc
	Color	CMYK or CMYK LC LM OR GR
Ink Control		Set low ink capacity Alarm system according to each color light indicated
Media Cutter		Equipped, automatic cut
Media Operation		Automatic feeding media structure, cutting and draw in
Media Sensor		Two sides, front edge & rear edge
Print Speed	Production mode	17.5m2/h (360*1440dpi, 4pass)
	Standard mode	11.0m2/h (720*1080dpi, 6pass)
	Ultra quality mode	8.0m2/h (720*1440dpi, 8pass)
Print Width		210mm ~1610mm
Acceptable Media Width		210mm ~1610mm
Printhead Cleaning		Automatic and manual control cleaning system
Safe Cover		Automatic offline function’s safe interlocking device
Print Interface		USB2.0 or HI USB
RIP Software		Maintop and Photoprint 10^th for Window XP or Win7
Heater System		Front, back and center platform heaters separately
Usable Media		Banner, PVC vinyl, perforated vinyl, photo paper, PP paper, backlit film and inkjet canvas Etc.

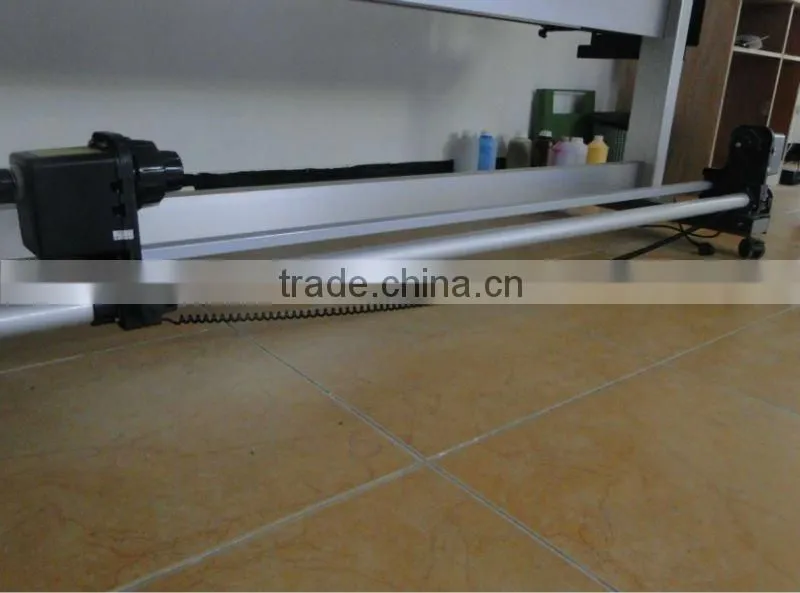

Take Up System		Optional
Power supply		50Hz/60Hz, 220V(±10%) >1.7A
Operation Environment		Temperature: 20°C~ 32°C; Humidity: 35% ~ 80%
Package Dimension		2680 mm * 870 mm * 940 mm
Gross Weight		200 kgs
