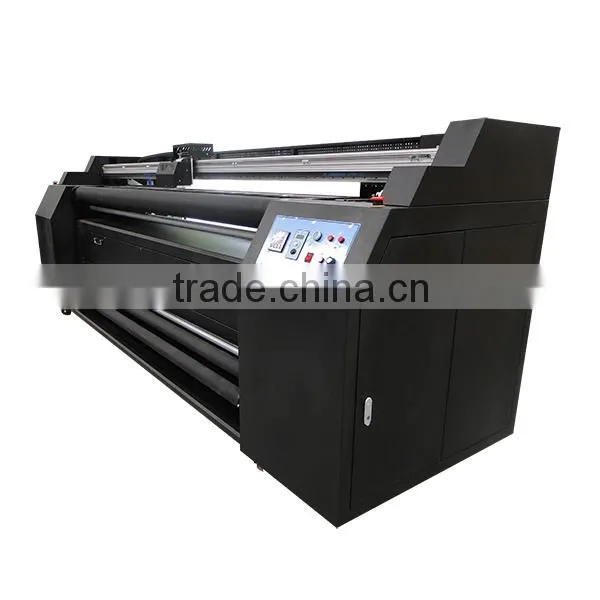

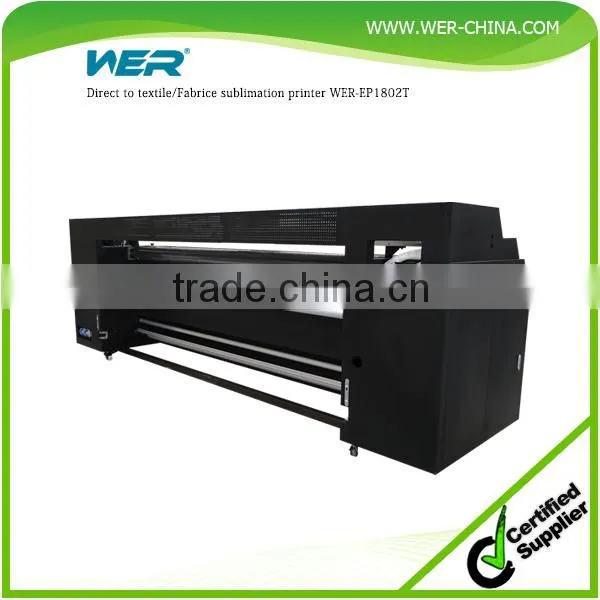

Textile Banner Printing Dye Sublimation Printer

Name: Textile Banner Printing Dye Sublimation Printer
Brand: WER brand
SKU: 134166859

US$ 10,800 - 13,800 MOQ: 1 Set

Key Specifications

Condition:

New

Plate Type:

Other, piezoelectric printer

Place of Origin:

Shanghai, China

Shanghai WER-China Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, piezoelectric printer

Place of Origin Shanghai, China

Brand Name WER brand

Model Number WER-EP1802T

Usage Cloths Printer, Label Printer, Paper Printer

Automatic Grade Automatic

Voltage 220V

Gross Power 2500W

Dimensions(L*W*H) 2680mm*870mm*1250mm

Weight 500KG

Certification CE, LVD, EMC, SGS

After-sales Service Provided Engineers available to service machinery overseas

textile banner printing dye sublimation printer

contact mr. tom wang for best prices mobile and whatsapp 008618302108267 skype id wer_sales04

Product Description

indoor and outdoor media printing machine textile sublimation printer

contact mr. tom wang for best prices mobile and whatsapp 008618302108267 skype id wer_sales04

Model		WER-EP1802T
Print Technology		Drop-On-Demand piezoelectric technology
Head Type		2 pcs DX5 print heads
Ink type fitable		Sublimation inks, water based textile inks, etc.
Nozzles		180 nozzles*8 lines
Height of Print Head		1.2mm / 2.8mm above media, adjustable
Ink Supply Method		Independent continuous ink supply system
Ink Cartridge	Ink Type	Sublimation inks
	Volume	220cc / 440cc 5cc
	Color	Cyan, Mangeta, Yellow, Black (CMYK or CMYK LC LM OR GR)
Ink Control		Set low ink capacity Alarm system according to each color light indicated

Media Operation		Automatic feeding media structure
Media Sensor		Two sides, front edge & rear edge
Print Speed	Production mode	80m2/h (360*1440dpi, 4pass)
	Standard mode	60m2/h (720*1080dpi, 6pass)
	Ultra quality mode	35m2/h (720*1440dpi, 8pass)
Print Width		210mm~1800mm
Acceptable Media Width		210mm~1810mm
Print head Cleaning		Automatic and manual control cleaning system
Safe Cover		Automatic offline functions safe interlocking device
Print Interface		USB2.0 or HI USB
RIP Software		Maintop and Photo print 10^th for Window XP or Win7
Heater System		Front, back and center platform heaters separately
Usable Media		Polyester Banner, PVC vinyl, perforated vinyl, photo paper, PP paper, backlit film and inkjet canvas Etc.
Take Up System		Optional
Power supply		50Hz/60Hz, 220V(±10%)>1.7A
Operation Environment		Temperature: 20°C~32°C; Humidity: 35%~80%
Package Dimension		2680mm870mm1250mm
Gross Weight		500KGs
