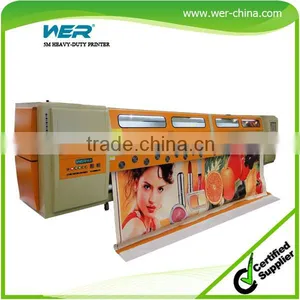

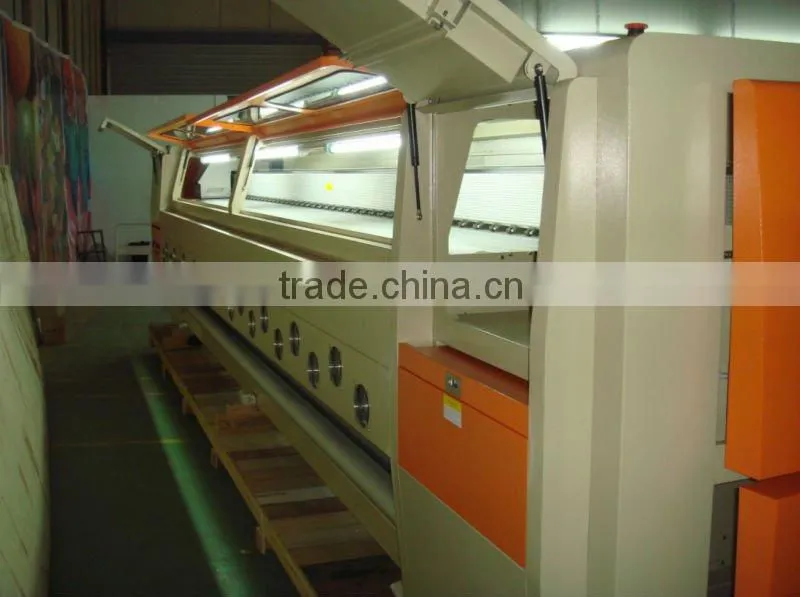

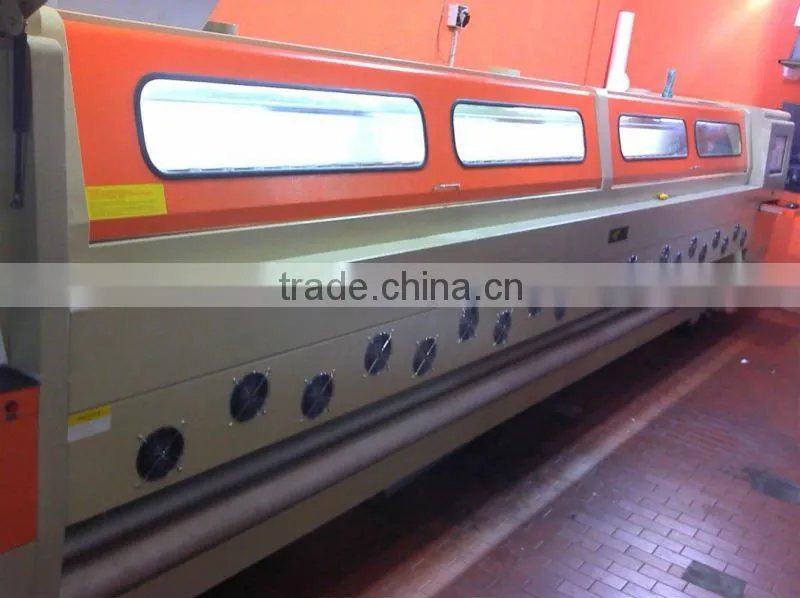

5.0 M Large Format Inkjet Printer With 12 Seikospt510 35pl Print Head for the Outdoor Use

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Plate Type:

Other, solvent printer

Place of Origin:

Shanghai, China

Shanghai WER-China Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, solvent printer

Place of Origin Shanghai, China

Brand Name WER

Model Number WER-S5312

Usage Other, ads printer

Automatic Grade Automatic

Voltage 220 V

Gross Power 3000 W

Dimensions(L*W*H) 7.2 m * 1.3 m * 1.8m

Weight 2500 KG

After-sales Service Provided Engineers available to service machinery overseas

Specifications

large format inkjet printer
12 spt510 35pl head
Pack Size:7.2 m * 1.3 m * 1.8 m
Delivery Time: 7 working days
CE approved

5.0 M large format inkjet printer specially for the outdoor use like banner, poster, bill board, etc.

Features:

*Temperature control system offer easy & convenient operation

*The double direction & step can be adjusted during printing process without stop.

*Equipped with individual ink purge & cleaning function, 3 direction valve ensure easy operation & comparatively less ink consumption.

*Imported linear rail guider gurantee the precise running of printer.

Print Technology	Drop-On-Demand Piezo Electric (Seiko/Spt510-35pl)
Print Head	12 heads (Seiko/Spt510-35pl)
Print Width	5 m width
Resolution	1440dpi Max
Speed	2 Pass 108 m2/h
	3 Pass 80 m2/h
	4 Pass 55 m2/h
	6 Pass 37 m2/h
Locating Mode	Double Servo Driver/Servo Motor
Media Width	5.2 m
Color	C M Y K LC LM
Ink Type	Special ink for Seiko/Spt510-35pl
Ink	Solvent based Pigment Ink, at least two years outdoor
Ink delivery system	Negative pressure ink supply system, main ink case 1L/color
Media Handle	Roll to Roll
Media feeding &take-up system	Infra Red Optical Controlling System for Media Feeding & Take-up
Dry system	Pre/Post and Middle heater controlled by PID
Media Type	PVC Vinyl, Flex banner, Carpet Paper, PVC Mesh Fabric, Perforated Vinyl, Cloth Banner Etc.
Motor	Panasonic AC Servo Motor
Linear Rail	HiWIN
Height of Print-head	2 mm - 4 mm above media, adjustable
Print head maintenance facility	Protection trays for auto purge, daily maintenance and print heads over night
Auto-cleaning system	Double functional cleaning System of Pressure purge and Vacuum Suction
Interface	USB 2.0
Print Mode	Bidirectional Printing
File Format	TIFF,JPEG,Postscript 3,EPS,PDFRGB/CMYK
RIP Software	Original Maintop/Photoprint Rip software
Working Process	Maintop software, Photoprint software for Windows 98 and Windows XP Etc.
Power Supply	50HZ/60HZ, 220V(±10%)>15A
Filtration Facility	PALL filter + Regular ink filter
Operation Environment	Temperature: 23 ° ~ 29 ° ; Humidity: 50%~80%
