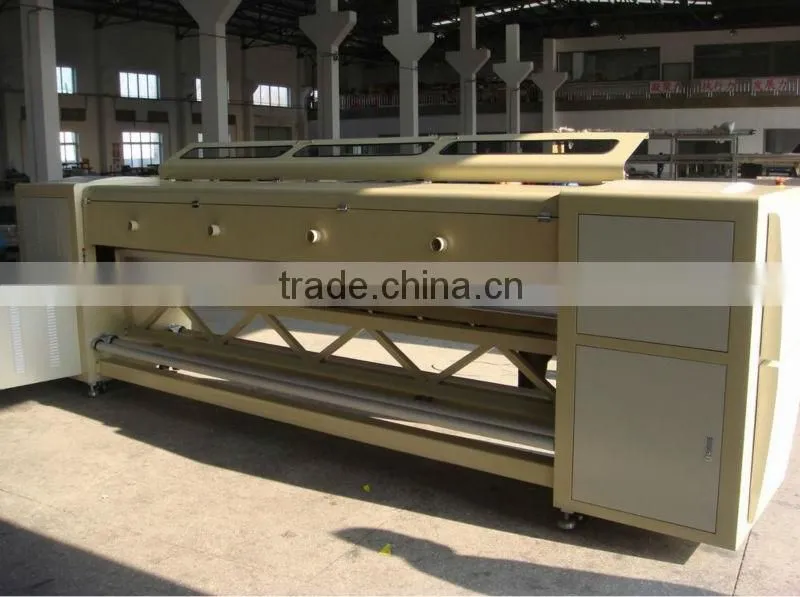

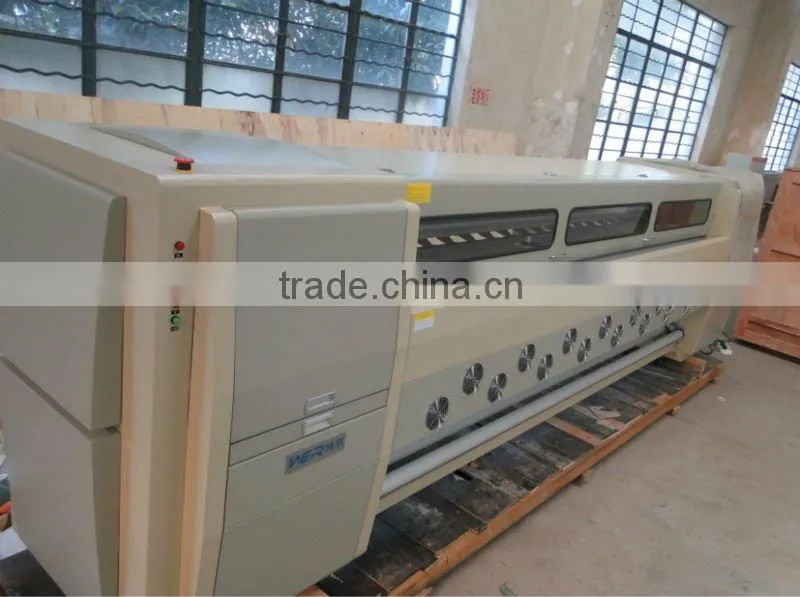

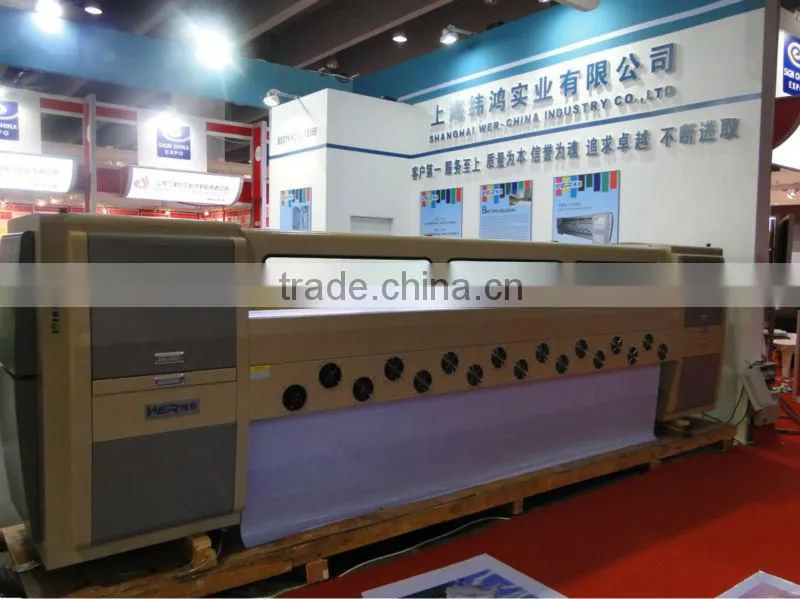

3.3 m Wide Format Solvent Printer WER-SD3404

Name: 3.3 m Wide Format Solvent Printer WER-SD3404
Brand: WER brand
SKU: 134166779

US$ 13,800 - 14,800 MOQ: 1 Set

Key Specifications

Condition:

New

Plate Type:

Other, solvent inkjet printer

Place of Origin:

Shanghai, China

Shanghai WER-China Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, solvent inkjet printer

Place of Origin Shanghai, China

Brand Name WER brand

Model Number WER-SD3404

Usage Other, billboard, pvc banner, sticker

Automatic Grade Automatic

Voltage 220 V/50HZ

Gross Power 3000 w

Dimensions(L*W*H) 5.1 m * 1.0 m * 1.65 m

Weight 1500 KG

Certification CE, EMC, LVD, SGS

After-sales Service Provided Engineers available to service machinery overseas

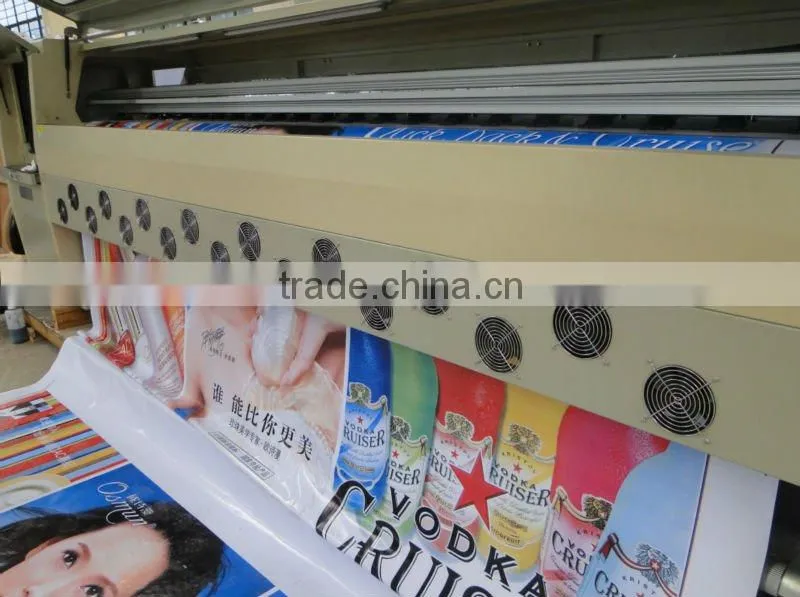

3.3 m wide format solvent printer

Product Description

Print Technology	Drop-On-Demand Piezo Electric
Print Head	4 Heads (Seiko/ Spt1020 - 35pl)
Print Width	3.3 m width
Resolution	1440 dpi Max
Print Speed	2 Pass 94 m2/h
	3 Pass 70 m2/h
	4 Pass 47 m2/h
	6 Pass 35 m2/h

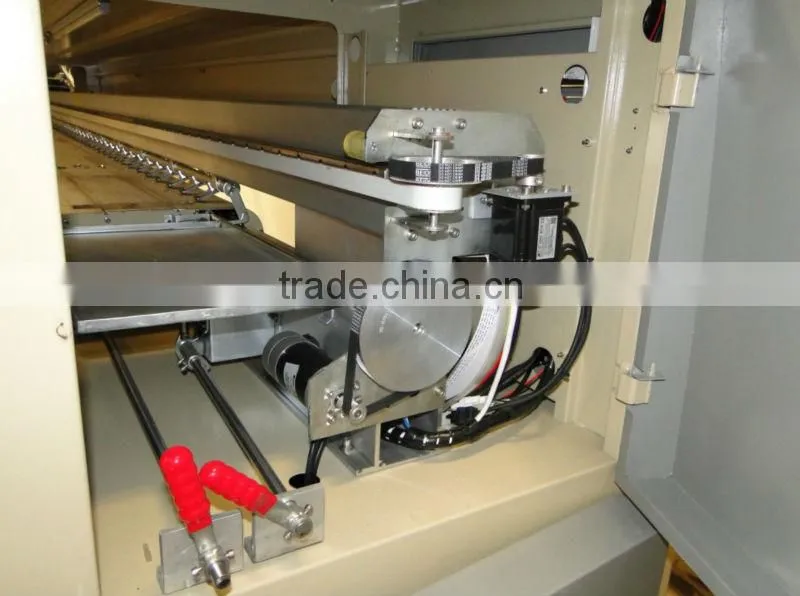

Locating Mode	Servo Driver/Servo Motor
Media Width	3.4 m

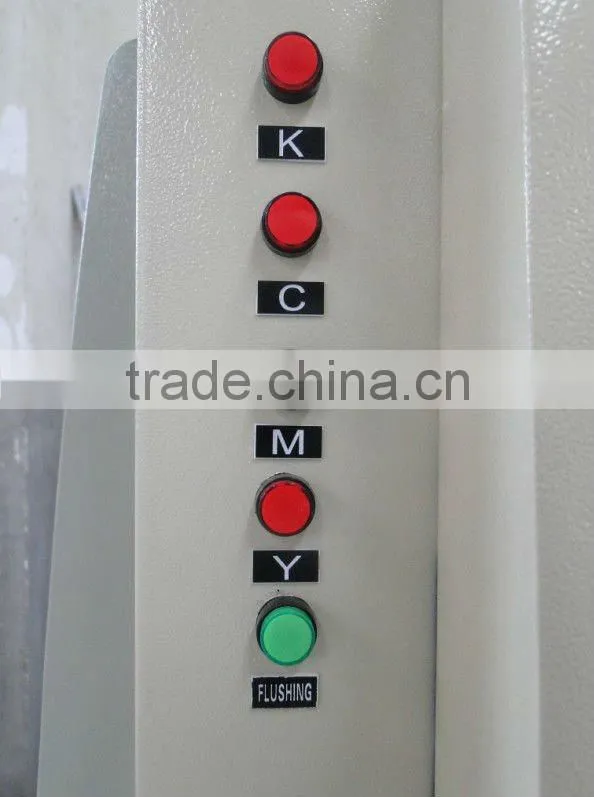

Color	C M Y K
Ink Type	Special ink for Seiko/ Spt1020 - 35pl
Ink	Solvent based Pigment Ink, at least two years outdoor durability
Ink delivery system	Negative pressure ink supply system, main ink case 1L/ color

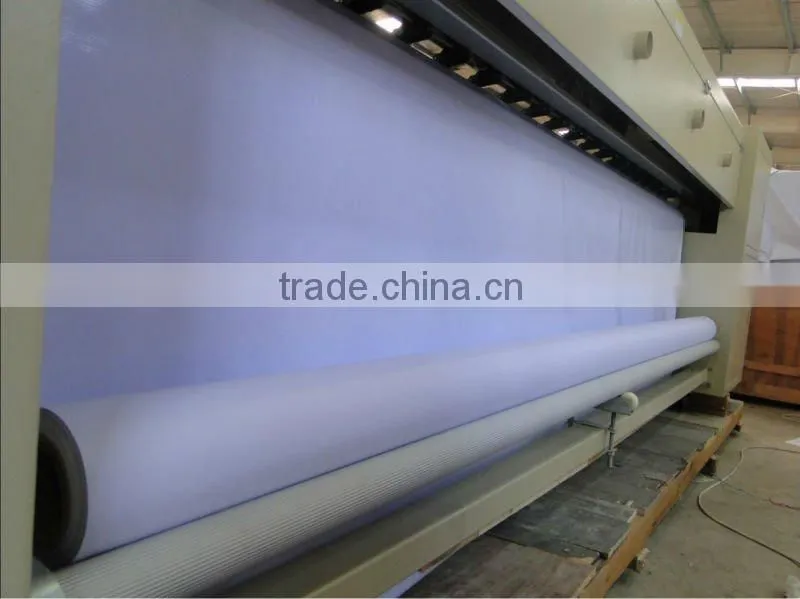

Media Handle	Roll to Roll
Media feeding & take-up system	Infra Red Optical Controlling System for Media Feeding & Take-up

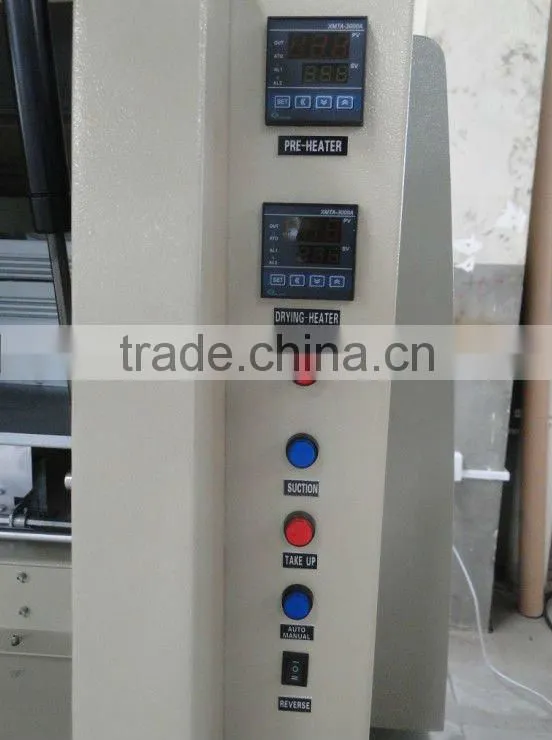

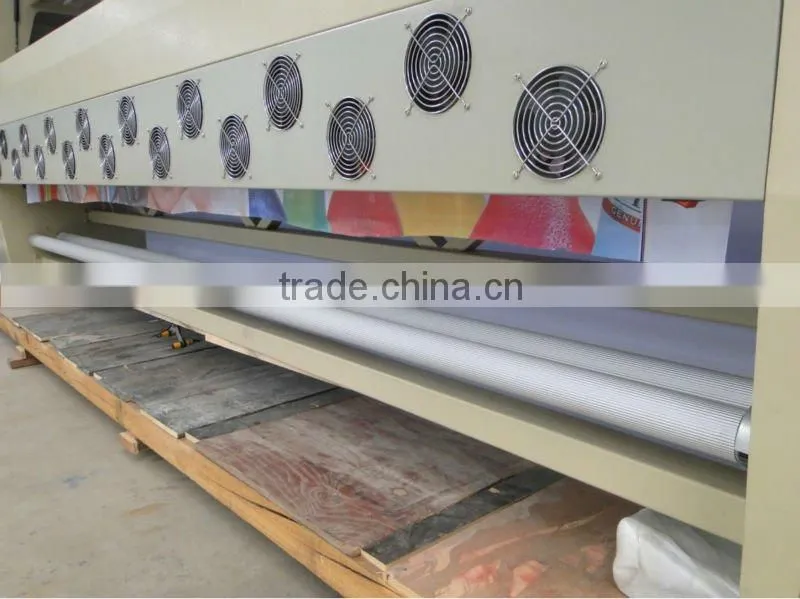

Dry system	Pre/ Post and Middle heater controlled by PID
Media Type	PVC Vinyl, Flex banner, Carpet Paper, PVC Mesh Fabric, Perforated Vinyl, Cloth Banner, Etc.
Motor	Fuji or Panasonic AC Servo Motor
Linear Rail	THK / HLWIN
Height of Print-head	1mm -10mm above media, adjustable
Print head maintenance facility	Protection trays for auto purge, daily maintenance and print heads over night
Auto-cleaning system	Double functional cleaning System of Pressure purge and vacuum Suction
Interface	USB 2.0
Print Mode	Bidirectional Printing
File Format	TIF, JPEG, Postscript 3, EPS, PDFRGB/ CMYK
RIP Software	Original Maintop/ Photoprint Rip software
Working Process	Maintop software, Photoprint software for Windows 98 and Windows XP, etc.
Power Supply	50 HZ/ 60 HZ, 220 V ( ± 10 % ) > 15 A
Filtration Facility	PALL filter + Regular ink filter
Operation Environment	Temperature: 23% ~ 29%; Humidity: 50% ~ 80%
