Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > Top Selling 3.2m WER S3204 Solvent Printer, Plotter Printer Solvent

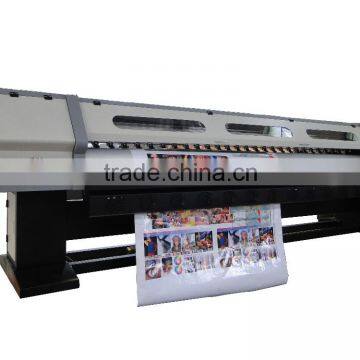

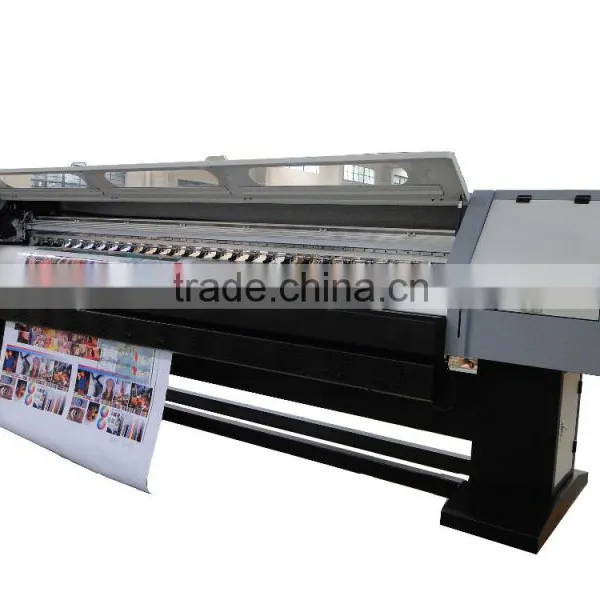

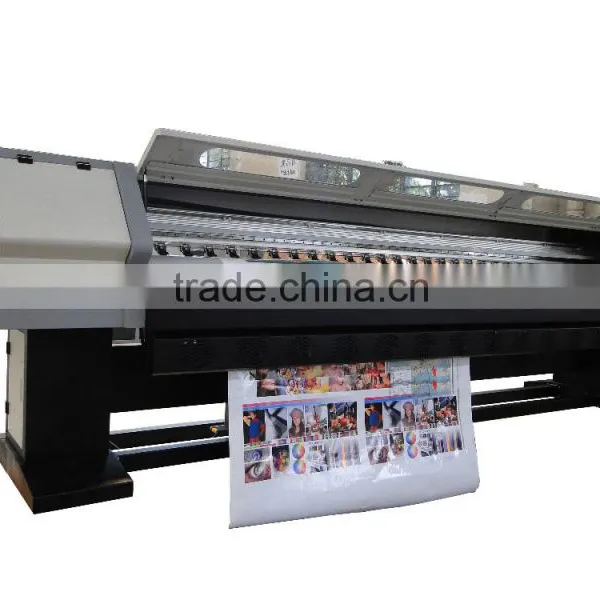

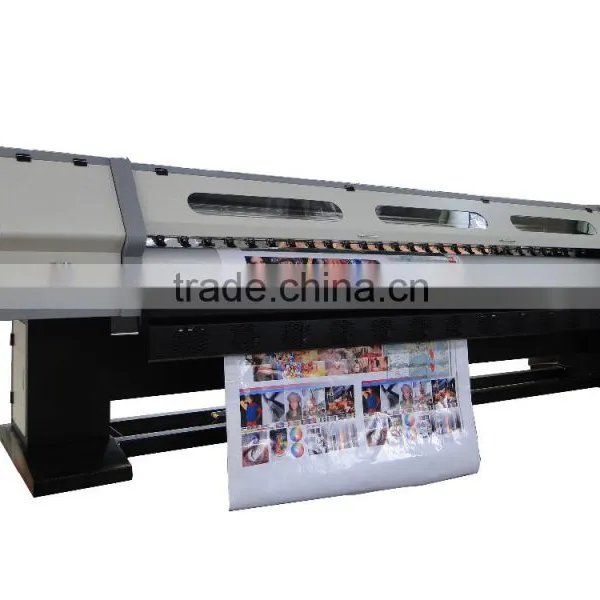

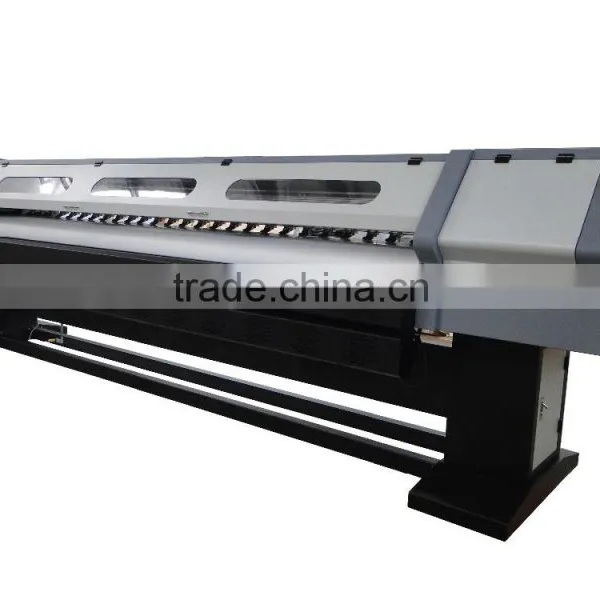

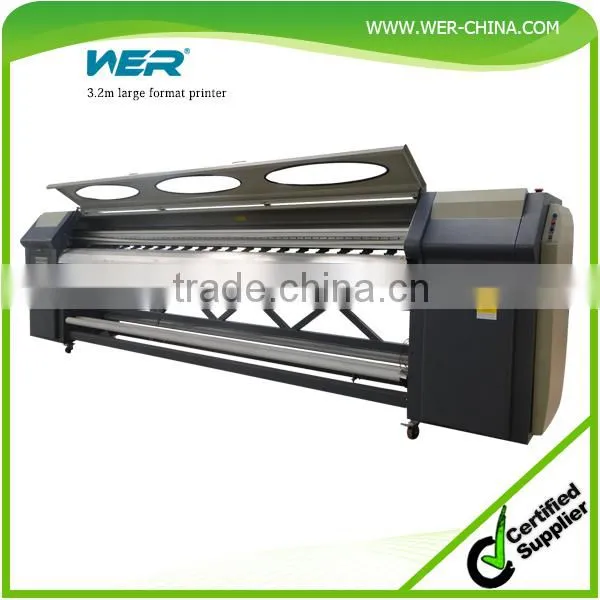

Top Selling 3.2m WER S3204 Solvent Printer, Plotter Printer Solvent

US$ 9,000 - 9,700 MOQ: 1 Set

Key Specifications

Condition:

New

Plate Type:

Other, Solvent printer

Place of Origin:

Shanghai, China

Shanghai WER-China Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, Solvent printer

Place of Origin Shanghai, China

Brand Name WER

Model Number WER-S3204

Usage Other, outdoor ads printer

Automatic Grade Automatic

Voltage 110V/220V

Gross Power 2500 W

Dimensions(L*W*H) 4.72 m * 0.77 m * 1.55 m

Weight 600 KG

Certification CE, BV, SGS, ISO9001-2000

After-sales Service Provided Engineers available to service machinery overseas

specification

model	WER-S3204
Print Head	4 Heads (Seiko/Spt510-35pl)
Print Width	3.2 m width
Resolution	1440 dpi Max
Speed	2 Pass 54 m2/h
	3 Pass 40 m2/h
	4 Pass 27 m2/h
	6 Pass 20 m2/h
Locating Mode	Raster strip/Raster sensor
Media Width	3.3 m
Color	C M Y K
Ink Type	Special ink for Seiko/ Spt510-35pl
Ink	Solvent based Pigment Ink, at least two years outdoor durability
Ink delivery system	Ink force pumps auto supplying system, main ink case 1L/ color
Media Handle	Roll to Roll handling
Media feeding & take-up system	Infrared Optical Controlling System for Media Feeding & Take-up
Dry system	Pre/Post and Middle heater controlled by PID
Media Type	PVC Vinyl, Flex banner, Carpet Paper, PVC Mesh Fabric, Perforated Vinyl, Cloth Banner, etc.
Motor	Servo Motor
Linear Rail	HIWIN
Height of Print-head	2 mm - 4 mm above media, adjustable
Print head maintenance facility	Protection trays for auto purge, daily maintenance and print heads over night
Auto-cleaning system	Double functional cleaning System of Pressure purge and Vacuum Suction
Interface	USB 2.0
Print Mode	Bidirectional Printing
File Format	TIFF, JPEG, Postscript 3, EPS, PDFRGB/ CMYK
RIP Software	Original Maintop/ Photoprint Rip software
Working Process	Maintop software, Photoprint software for Windows 98 and Windows XP, etc.
Power Supply	50HZ/60HZ, 220V(±10%)>15A
Filtration Facility	PALL filter + Regular ink filter
Operation Environment	Temperature: 23 °C ~ 29 °C ; Humidity: 50% ~ 80%
