Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > Large Format Solvent Printer (3.2m /6 Heads Konica 512/14pl)

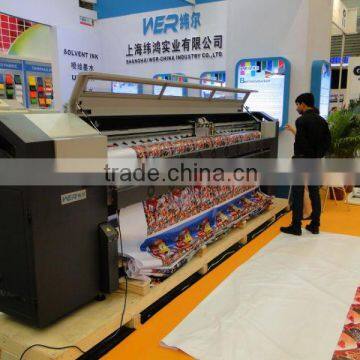

Large Format Solvent Printer (3.2m /6 Heads Konica 512/14pl)

Large Format Solvent Printer (3.2m /6 Heads Konica 512/14pl) thumbnail-1
Large Format Solvent Printer (3.2m /6 Heads Konica 512/14pl) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, solvent printer
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai WER-China Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, solvent printer
Place of Origin Shanghai, China
Brand Name WER, WER
Model Number WER-K3206H, WER-K3206H
Usage Other, poster printer
Automatic Grade Automatic
Gross Power 2500
Dimensions(L*W*H) 4.9m*0.81m*1.60m

Specifications

Large Format Printer
3.2m 6 pcs of Konica 512/14pl
2 pass print 40m2/h
resolution1440dpi
Professional after sales

Specification Model: WER-K3206H
Print Technology Drop on demand Piezo Head(Konica 512/14pl)
Print Head 6 Heads (Konica 512/42pl)
Print Width 3.2m width
Resolution 1440dpi Max
Speed 2pass 50m2/h, 180*720dpi
2pass 40m2/h, 240*720dpi
3pass 19m2/h, 360*1080dpi
Locating Mode Raster/Servo motor
Media Width 3.3m
Color C M Y K Lc Lm
Ink Type Special ink for Konica 512/42pl
Ink Solvent based Pigment Ink, At least tow years outdoor
Ink delivery system Ink force pumps auto supplying system , Main ink case 1L/color
Media Handle Roll to Roll
Auto media feeding system Infra Red Optical Controlling System is Equipped
Auto take-up system Infra Red Optical Controlling System is Equipped
Dry system Pre/Post and Middle heater controlled by PID
Media Type PVC Vinyl, Flex banner, Carpet Paper, PVC Mesh Fabric, Perforated Vinyl, Cloth Banner Etc.
Motor Step Motor
Linear Rail  THK / HLWIN
Height of Print-head  1mm-10mm above media, Adjustable
Print head maintenance facility Protection trays for auto purge, daily maintenance and print heads over night
Auto-cleaning system for print head Double functional cleaning System of Pressure purge and Vacuum Suction
Interface USB2.0
Print Mode Bidirectional Printing
File Format TIFF,JPEG,Postscript 3,EPS,PDFRGB/CMYK
RIP Software Original Maintop/Photoprint Rip software
Working Process Maintop 5 software, Photoprint 6 software for Windows XP or Windows 7 Etc.
Power Supply 50HZ/60HZ, 220V(±10%)>15A
Filtration Facility PALL filter + Regular ink filter
Operation Environment Temperature: 23°C~29°C; Humidity: 50%~80%
Packing Material Wooden Case, No fumigation
Packing Dimension 4.9m*0.81m*1.68m
Weight 800kgs
Warranty 1 Year
Certificate ISO90001:2000 & CE

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Shanghai WER-China Industry Co., Ltd.
Business Type
Manufacturer, Trading Company
Year Established
2009
Factory Size
1,000-3,000 square meters
Total Employees
11 - 50 People
Contact Supplier Request Quote Chat Now
